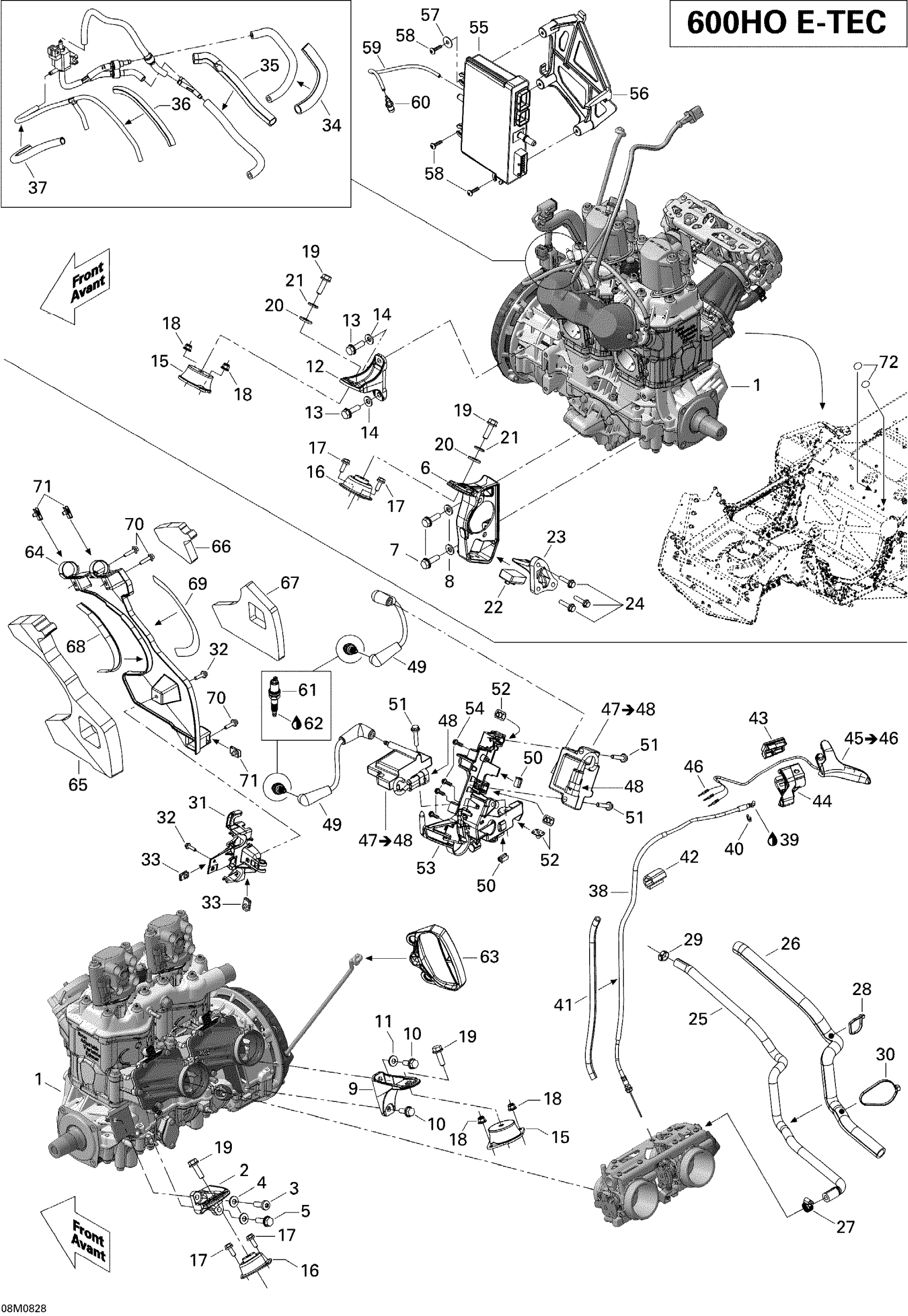

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 HOE

400604029

Unavailable

2

Rear Support, PTO

512060478

$29.97

3

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

4

Conical Spring Washer M8

234281474

$1.25

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

6

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

8

Conical Spring Washer M8

234281474

$1.25

9

Rear Support, MAG

512060559

$29.97

10

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

11

Conical Spring Washer M8

234281474

$1.25

12

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

$45.35

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

14

Conical Spring Washer M8

234281474

$1.25

15

Rubber Mount

512060729

$69.97

16

Rubber Mount

512060387

$42.28

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

20

Yellow, Washer

503183200

Unavailable

21

Conical Spring Washer M8

234281474

$1.25

22

STOPPER - Call your local BRP dealership

512060179

Unavailable

23

Stopper Support

512060576

$28.43

24

Hex. Flange Screw M6 X 25

207562544

$1.39

25

Formed Hose, Output

512060740

Unavailable

26

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

27

Tridon Gear Clamp

293650170

$1.74

28

Tie-Rap 180 mm

414115200

$0.09

29

Oetiker Gear Clamp

293650025

$2.46

30

Tie-Rap 180 mm

414115200

$0.09

31

Solenoid Support

512060298

$12.52

32

Hex.Flange Screw M5 X 20

207652044

$1.56

33

Panel Nut M5 X 0.8

250000958

Unavailable

34

Was 409901800 Tubing (13 mm)

219704400

Unavailable

35

Was 409901800 Tubing (13 mm)

219704400

Unavailable

36

Was 409901700 Tubing (9 mm)

219704399

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

Unavailable

38

Throttle Cable

512060611

$106.12

39

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

40

Circlip

414274500

Unavailable

41

Tubing 6 Mm 3000Mm Long

219704425

$13.14

42

Protector

512060313

$9.31

43

Upper Housing Ass'y

512060198

Unavailable

44

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

45

Throttle Handle Ass'y | Includes 45 to 46

512060219

Unavailable

46

Male Terminal

515175232

$1.49

47

Ignition Coil

512060953

$129.97

48

Housing

710000568

Unavailable

49

Ignition Cable, 177mm long

512061126

$27.66

50

CLIP - Call your local BRP dealership

409014200

$4.23

51

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

52

Nut Welded, M6

293100003

Unavailable

53

Ignition Coils Support

512060888

$10.52

54

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

55

Calibrated Module

512060089

Unavailable

56

Calibrated Module Support

512060858

$12.52

57

Flat Washer

250200040

$1.82

58

Truss Head Torx Screw K50 X 20

250000297

$1.74

59

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

60

Male Connector

414814100

$2.18

61

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

62

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

63

Starter Grip

512060136

$14.54

64

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

65

Interior Noise Foam

512060343

Unavailable

66

Upper Exterior Noise Foam

512060344

Unavailable

67

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

68

Heat Shield

512060574

Unavailable

69

Heat Shield

512060575

Unavailable

70

Hex.Flange Screw M5 X 20

207652044

$1.56

71

Panel Nut M5 X 0.8

250000958

Unavailable

72

Adhesive Patch

518325560

Unavailable
