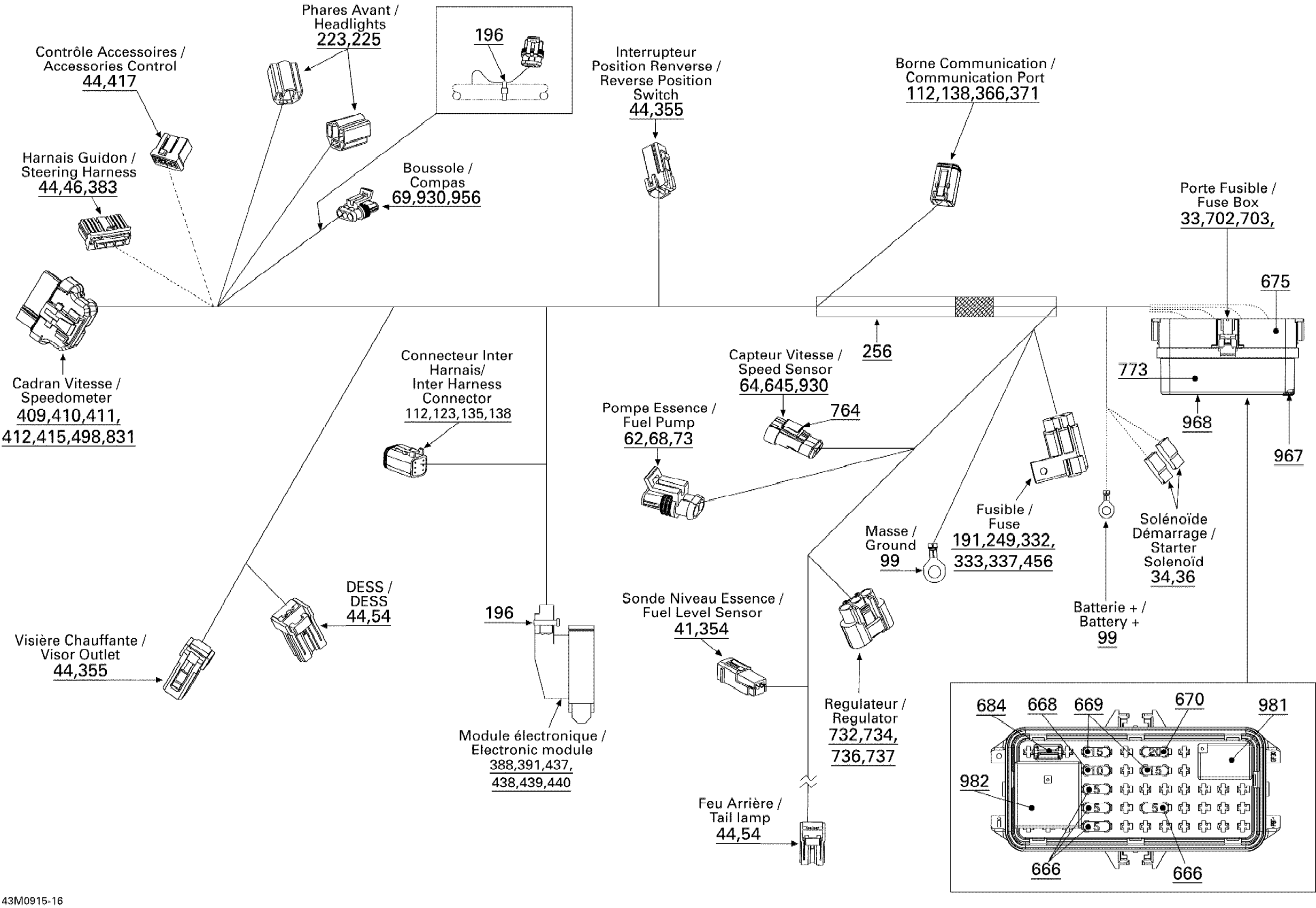

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Electrical Harness Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 to 982

515176702

Unavailable

33

Wire Seal

278000999

$2.55

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

41

Male Terminal

515175232

$1.49

44

Female Terminal

515175231

Unavailable

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

62

Female Terminal

278001014

Unavailable

64

Housing

710000568

Unavailable

68

Female Housing, 2 Circuits

409209500

$13.48

69

Female Housing, 3 Circuits

409209600

Unavailable

73

Wire Seal

278001013

Unavailable

99

Open Barrel

278000992

$1.79

112

Female Terminal

278000632

Unavailable

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

Unavailable

191

Fuse, 30 Amperes

410917200

$3.22

196

Tie Wrap 142 mm

293750002

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

249

Not Available As Spare Part - Friction Washer

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

332

Fuse Holder Cap

278001326

$6.03

333

Fuse Holder

278001325

$8.57

337

Female Terminal

710000113

Unavailable

354

Male Terminal Housing, 2 Circuits

515175654

$7.48

355

Female Housing, 2 Circuits

515175658

Unavailable

366

Male Housing, 6 Circuits

515175673

$13.05

371

Male Wedge, 6 Circuits

515175678

Unavailable

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

Unavailable

410

Female Housing, 24 Circuits

515175801

Unavailable

411

Retainer Block

515175802

Unavailable

412

Wire Seal

515175803

Unavailable

415

Female Terminal

515175806

$0.81

417

Female Terminal Housing, 8 Circuits

515175819

$7.46

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

456

Cushion

278000805

$3.22

498

Female Housing

710000399

Unavailable

645

Male Terminal

515176164

Unavailable

666

Little Fuse, 5 Amperes

710000742

Unavailable

668

Little Fuse, 10 Amperes

710000744

Unavailable

669

Little Fuse, 15 Ampere

710000745

Unavailable

670

Little Fuse, 20 Amperes

710000746

Unavailable

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

732

Female Terminal

710000877

Unavailable

734

Female Housing, 3 Circuits

710000879

Unavailable

736

Seal

710000881

Unavailable

737

Cap

710000882

$9.19

764

Clip

710000992

$4.00

773

Fuse Cover

710001026

$17.52

831

Female Terminal

710001131

Unavailable

930

Wire Seal

515176621

Unavailable

956

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

967

Foam

278002172

Unavailable

968

RELAY-FUSE DECAL - Call your local BRP dealership

515176723

Unavailable

981

Relay, 30 AMP

515176774

$19.20

982

Relay, 50 AMP

515176775

$13.86
