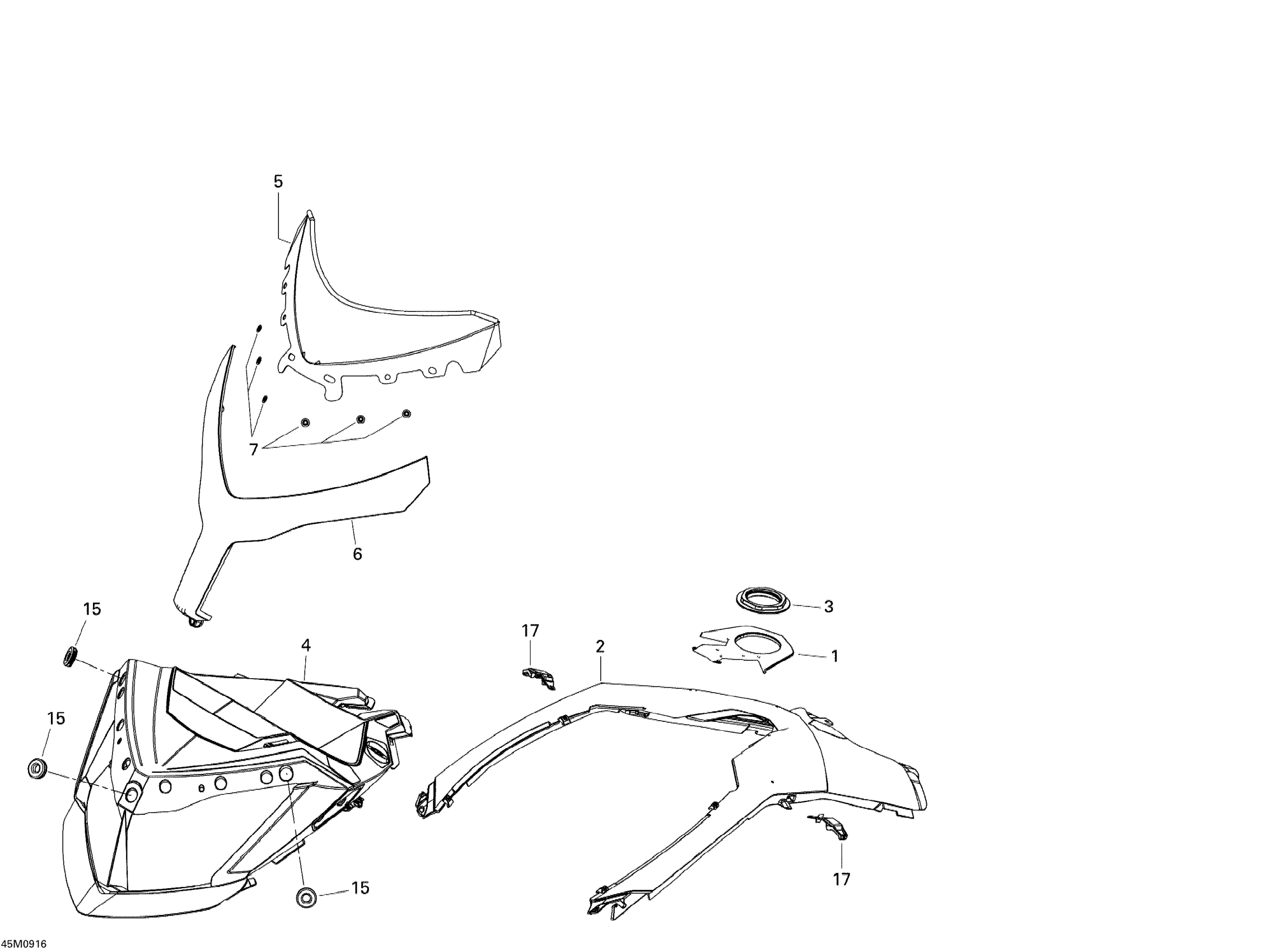

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Windshield And Console TNT Diagram

#

Description

Price

1

Deep Black, Cap Console

517304027

$13.06

2

CONSOLE, YELLOW - Call your local BRP dealership

517304041

Unavailable

3

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

4

Black Indicator Support

517303742

$82.28

5

Low Windshield (250)

517303888

$189.97

6

LOW WINDSHIELD SUPPORT - Call your local BRP dealership | MXZ X, Renegade X Model

517303959

Unavailable

7

Push Nut

732610072

$1.72

15

Grommet

517303756

$3.15

17

Panel Latch

517305000

$11.32
