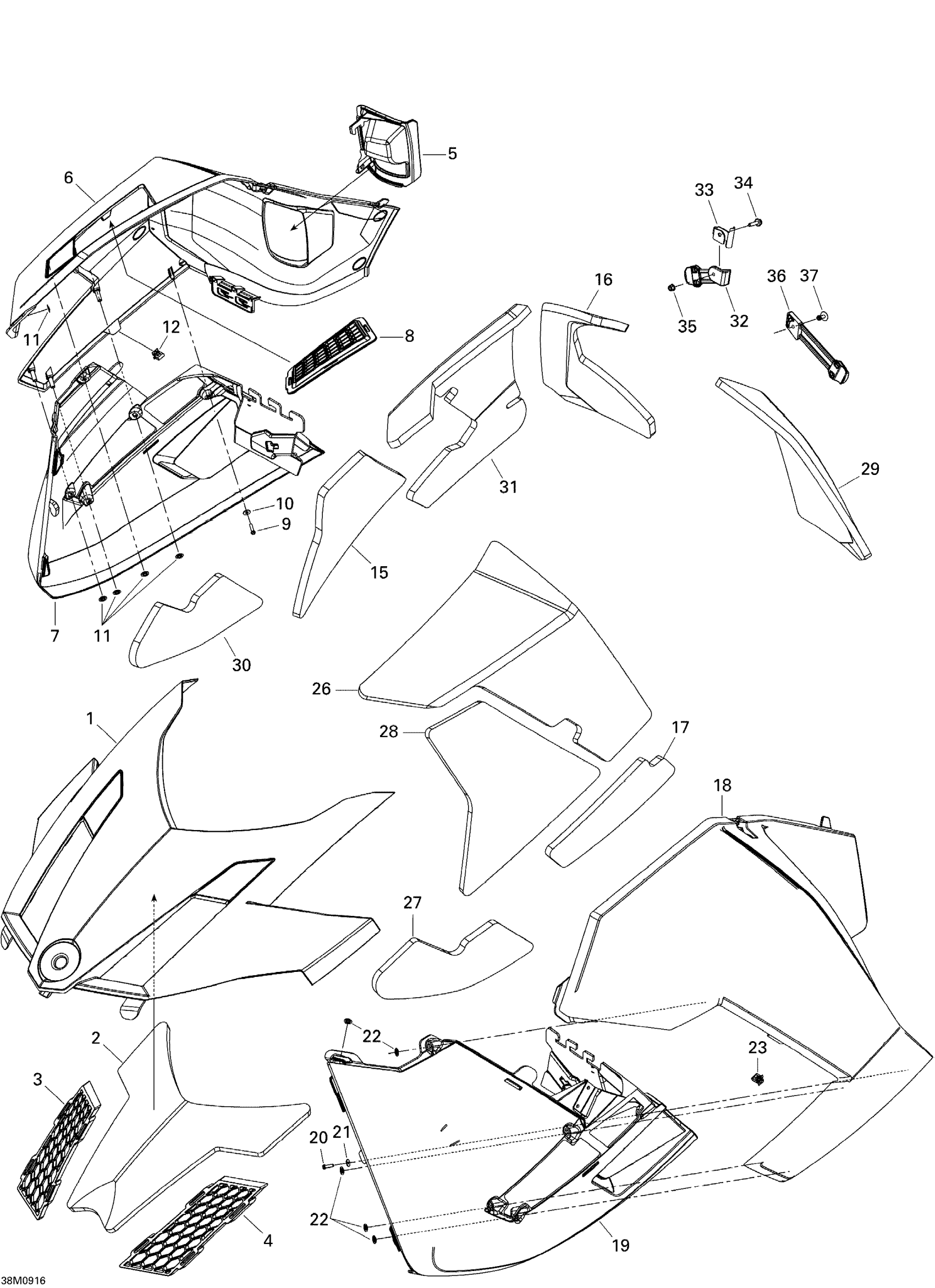

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Hood Diagram

#

Description
Price

1

Black Hood | Model-Black-Black

517303739

$223.82

1

HOOD, YELLOW - Call your local BRP dealership

517304035

Unavailable

2

HOOD FOAM - Call your local BRP dealership

517304892

Unavailable

3

RH Hood Grille

517303805

$29.20

4

LH Hood Grille

517303804

$29.20

5

Black, RH Console

517304500

$27.66

6

Black RH Panel

517303748

$346.12

6

PANEL_BODY RH B-190 - Call your local BRP dealership | Model-TNT

517304067

Unavailable

7

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

8

PANEL GRILL - Call your local BRP dealership

517303801

Unavailable

9

Hex. Flange Screw K40 X 16

241141660

$1.25

10

Flat Washer 4 mm, Stainless

234042600

$0.92

11

Push Nut

732610072

$1.72

12

Edge Clip

517302785

$0.70

15

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

16

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

17

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304896

Unavailable

18

Black LH Pannel | Model-Black-Black

517303753

$212.28

18

PANEL_BODY LH B-190 - Call your local BRP dealership | Model-TNT

517304069

Unavailable

19

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.25

21

Flat Washer 4 mm, Stainless

234042600

$0.92

22

Push Nut

732610072

$1.72

23

Edge Clip

517302785

$0.70

26

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304898

Unavailable

27

LH LOWER PANEL FOAM - Call your local BRP dealership

517304900

Unavailable

28

LH UPPER PANEL FOAM - Call your local BRP dealership

517304903

Unavailable

29

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

30

RH LOWER PANEL FOAM - Call your local BRP dealership

517304906

Unavailable

31

RH UPPER PANEL FOAM - Call your local BRP dealership

517304907

Unavailable

32

RH Panel Latch

517303612

$9.49

33

Latch Support

517304221

$6.49

34

Hex.Flange Screw M5 X 20

207652044

$1.56

35

Hex. Flange Elastic Nut M5

233251414

$1.66

36

LH Panel Latch

517303808

$9.91

37

Pop Rivet 3/16”

293150108

$1.23
