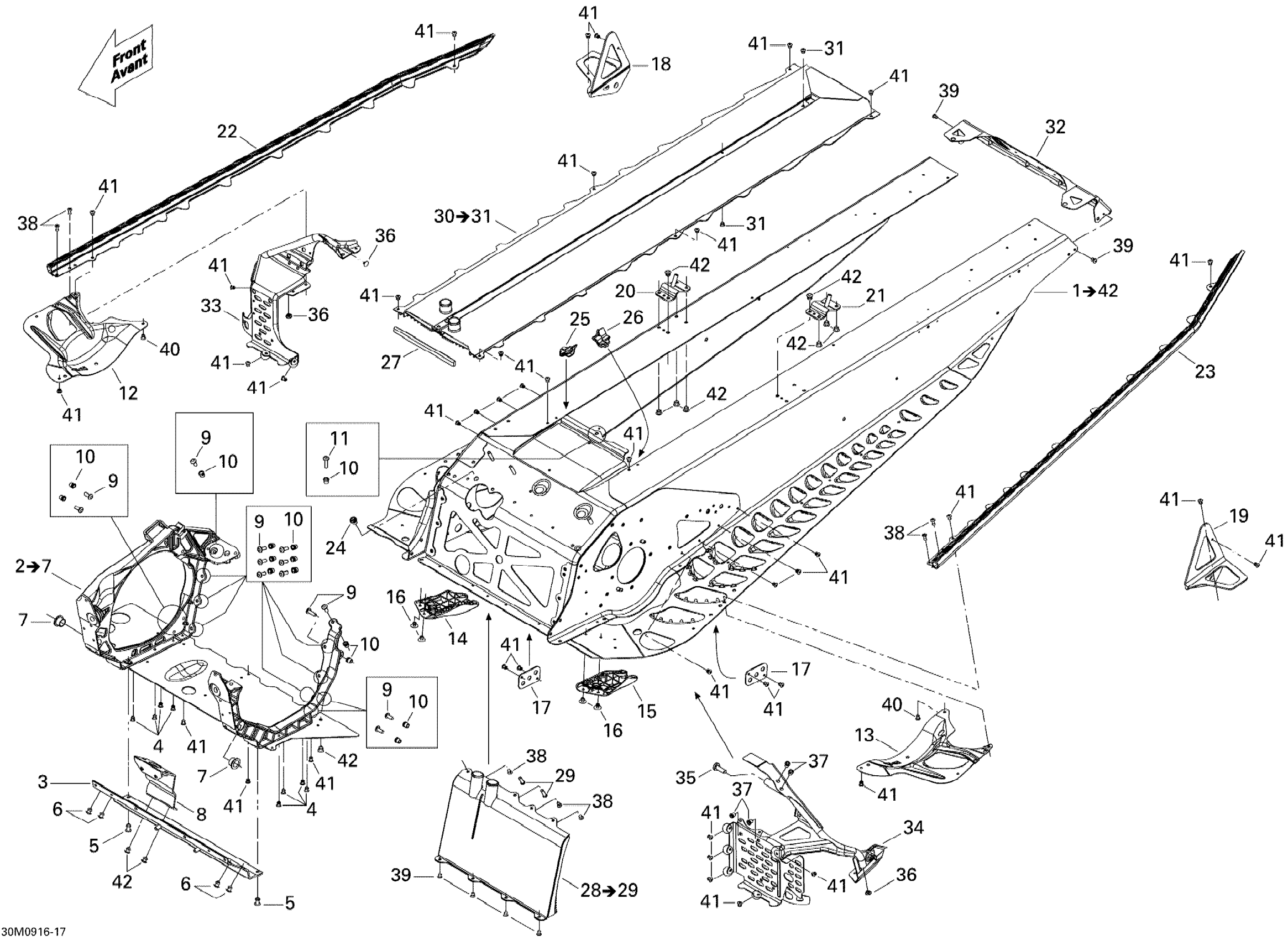

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Frame Diagram

#

Description
Price

1

FRAME GSX LE REV XR 120'' - Call your local BRP dealership | Includes 1 to 37

415129664

Unavailable

2

E MODULE - Call your local BRP dealership

518327485

Unavailable

3

Front Member

518326198

$59.97

4

Stavex Rivet

293150144

Unavailable

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Hemlock Rivet, 6.5 mm

293150119

$4.00

7

Leg Bushing

505072690

Unavailable

8

MAG Engine Support

518325371

$75.35

9

Hex. Flange Screw M6 X 20

207662044

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

Unavailable

12

RH Reinforcement

518324874

Unavailable

13

LH Reinforcement

518324875

Unavailable

14

RH Deflector, Black Polypropylene

518325782

Unavailable

15

LH Deflector, Black Polypropylene

518325783

Unavailable

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

18

RH Slide Bracket

518324885

Unavailable

19

LH Slide Bracket

518324886

Unavailable

20

RH Rear Base

518325973

Unavailable

21

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

22

RH Roller

518324812

Unavailable

23

LH Roller

518324813

Unavailable

24

Insert

293450275

Unavailable

25

RH SEAL - Call your local BRP dealership

518325653

Unavailable

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

28

FRONT RADIATOR ASS'Y - Call your local BRP dealership

518326489

Unavailable

29

Clinch Stud M6 X 20

250300027

$1.92

30

Rear Radiator 120''

518327580

Unavailable

31

Stavex Rivet

293150144

Unavailable

32

Rear Cap

518327105

Unavailable

33

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

36

Full Moon Dart 5 mm

293730042

Unavailable

37

Insert M5 X 0.8

293450268

Unavailable

38

Pop Rivet 3/16"

390402300

Unavailable

39

Avex Rivet

390909200

Unavailable

40

Avex Rivet

390909100

$0.29

41

Stavex Rivet

293150144

Unavailable

42

Hemlock Rivet, 6.4 mm

293150174

$6.43
