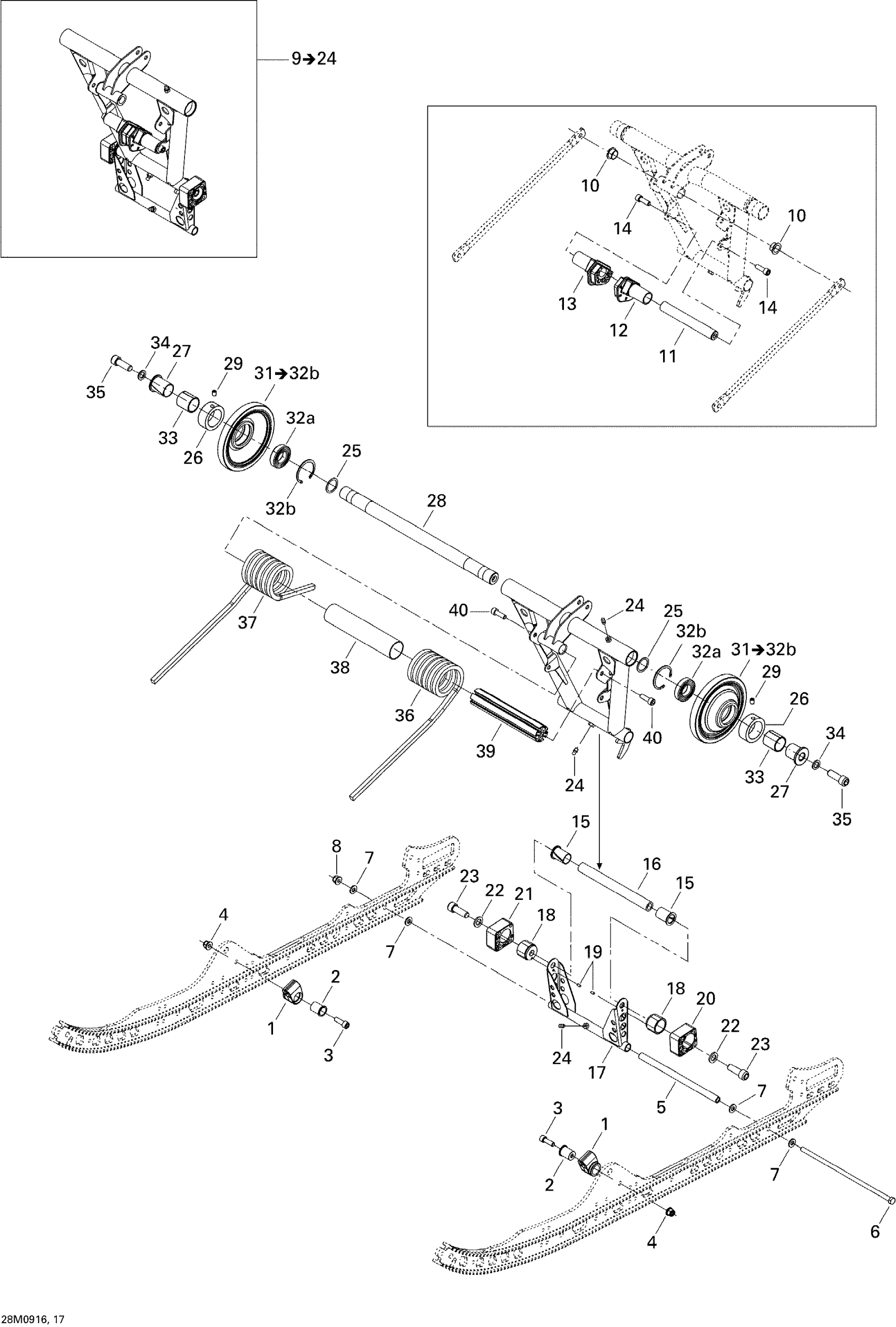

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Pivot Arm Axle

503189156

$20.74

6

Bolt M8 X 248mm

503192440

$29.97

7

Washer

503189157

$3.20

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$226.12

10

Swivel Bushing

503191555

$5.71

11

Spring Cam Axe

503191178

$27.66

12

LH Spring Cam

503191191

$13.88

13

RH Spring Cam

503191190

$13.78

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

15

Cushion

503191640

$5.71

16

Lower Shaft

503192330

$46.12

17

Pivot Arm

503191302

$118.43

18

Block Guide

503189488

$37.66

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

LH Block, 4 Positions

503191563

Unavailable

21

RH Block, 4 Positions

503191562

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.72

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

24

Grease Fitting

408200700

$2.80

25

Washer

503191774

$2.25

26

Retaining Ring

503191782

$13.95

27

Bushing

503191775

$15.26

28

Upper Shaft

503191776

$46.12

29

Socket Set Screw M6 X 8

206260844

$1.25

31

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$36.12

32a

Ball Bearing

503191778

$11.46

32b

Retaining Ring

415129371

$8.92

33

Bushing

503191773

$13.60

34

Washer

503189276

$3.20

35

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

36

LH SPRING, SQUARE - Call your local BRP dealership

503191188

Unavailable

37

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

38

Plastic Bushing

503191345

$6.89

39

Spring Axle

503191344

$34.58

40

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56
