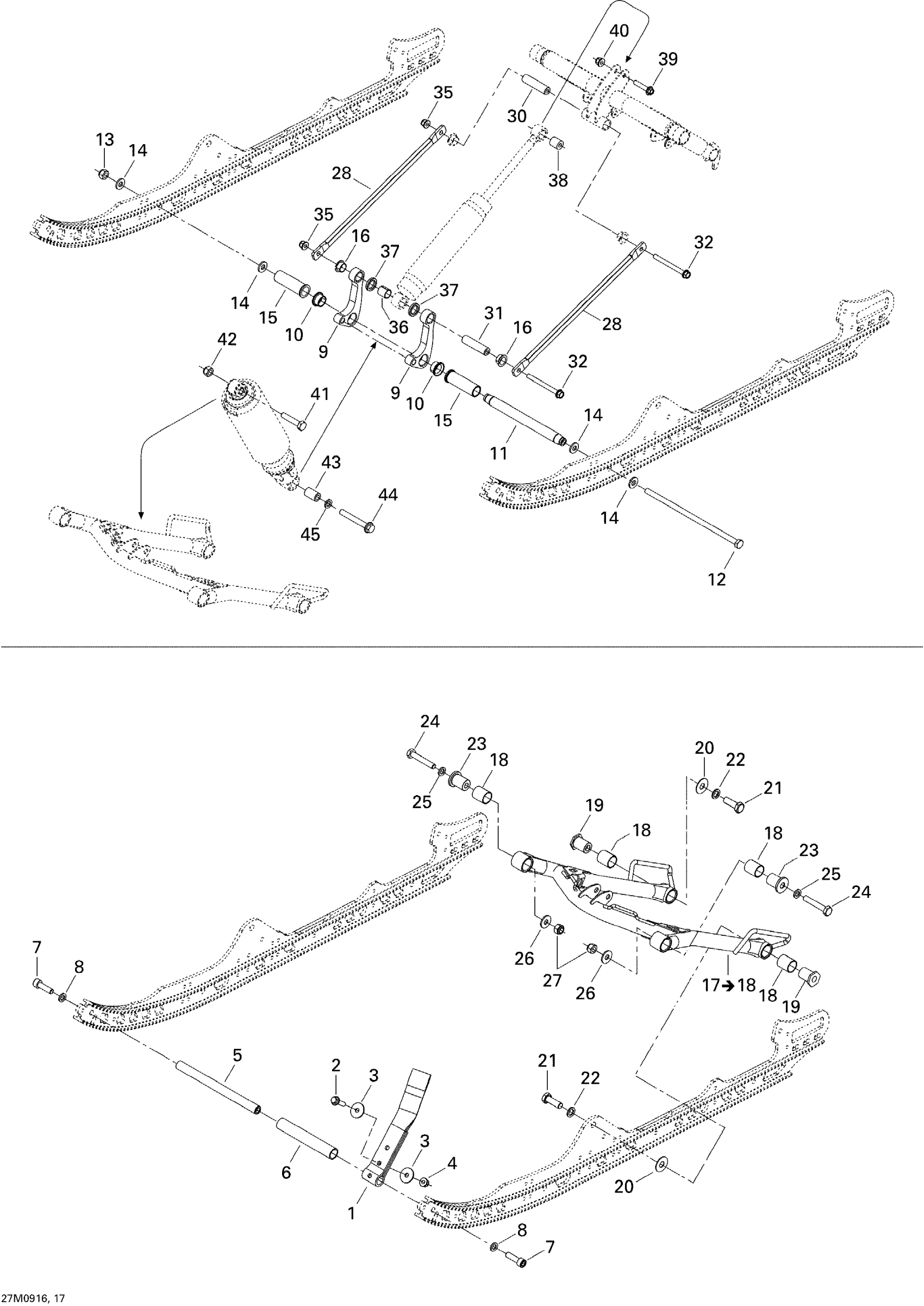

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.97

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

3

Flat Washer

224081301

$0.86

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Axle Strap

503191260

$29.20

6

Spacer

503191448

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

8

Washer

503189564

$0.72

9

LH Rocker Arm

503191890

$61.51

9

RH Rocker Arm

503191894

$61.51

10

Bushing

503191552

$5.71

11

Center Shaft

503191764

$64.58

12

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.74

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Washer

732900049

$0.57

15

Center Bushing

503191351

Unavailable

16

Swivel Bushing

503191555

$5.71

17

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$447.66

18

Bushing

503191554

$5.88

19

Lower Axle

503191966

$15.35

20

Washer

503190656

$2.91

21

Hex. Cap Screw M12 X 35

250000537

$2.63

22

Washer

503189276

$3.20

23

Axle

503190698

$17.66

24

Hex. Cap Screw M10 X 60

207006056

$6.18

25

Washer

503191910

$2.25

26

Washer

503191910

$2.25

27

Elastic Locking Nut M10 X 1.5

233601416

$1.68

28

Link Rod

503191802

$27.66

30

Axle Bar (Long)

503190643

$15.35

32

Hex. Flange Screw

207688544

$1.68

35

Hex. Flange Elastic Nut M8

233281414

$1.14

36

Bushing

503191553

$5.71

37

Plastic Spacer

503190694

$2.05

38

Bushing

414936000

$11.55

39

Hex. Flange Screw M8 X 40

207684044

$1.25

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

42

Elastic Stop Nut M10

232500416

$1.56

43

Central Shock Axle

503190604

$11.17

44

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

45

Washer

503189564

$0.72
