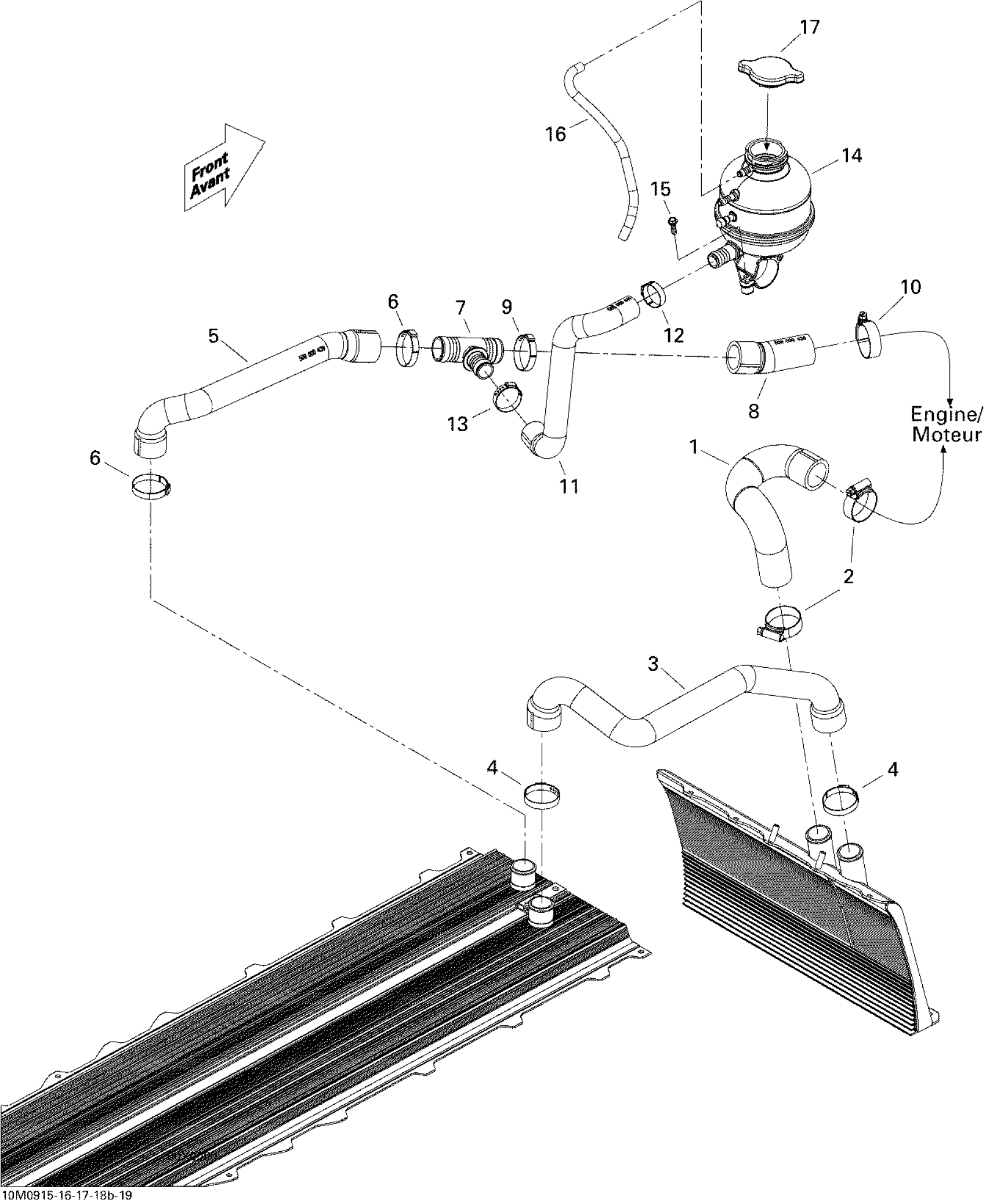

Ski-Doo MX Z TNT 1200 4-TEC, 2009 Cooling System Diagram

#

Description
Price

1

Outlet Hose

509000440

$18.43

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

RADIATOR HOSE - Call your local BRP dealership

509000370

Unavailable

4

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

5

Radiator Hose

509000439

Unavailable

6

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

7

T-Fitting

509000372

$7.87

8

Radiator Hose

509000438

$18.43

9

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

10

Aba Gear Clamp, 26-38 MM

509000443

$5.68

11

Hose

509000441

$24.58

12

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

13

Crimp Clamp

293650099

Unavailable

14

Coolant Tank

509000421

$86.89

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

17

Radiator Pressure Cap

509000180

Unavailable
