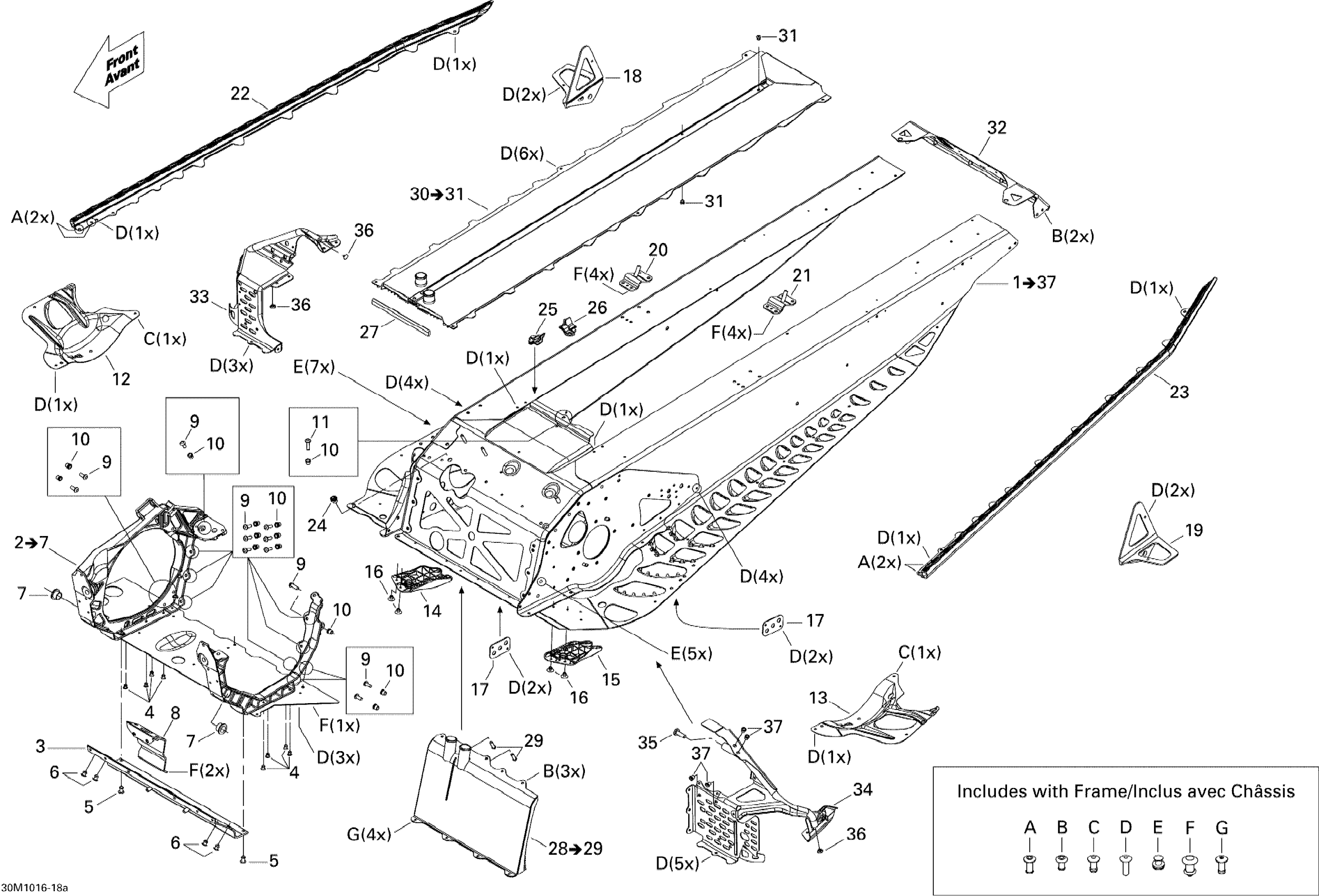

Ski-Doo MX Z TNT 1200, 2010 Frame TNT Diagram

#

Description
Price

1

FRAME GSX LE REV XR 120'' - Call your local BRP dealership | Includes 1 to 37

415129664

Unavailable

2

E MODULE - Call your local BRP dealership

518327485

Unavailable

3

Front Member

518326198

$58.18

4

Stavex Rivet

293150144

$0.75

5

Hemlock Rivet 6.5 mm

293150120

$7.01

6

Hemlock Rivet, 6.5 mm

293150119

$3.88

7

Leg Bushing

505072690

$5.75

8

MAG Engine Support

518325371

$73.10

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Hex. Flange Screw M6 X 20

207662044

$1.91

12

RH Reinforcement

518324874

$24.60

13

LH Reinforcement

518324875

$24.60

14

RH Deflector, Black Polypropylene

518325782

$11.42

15

LH Deflector, Black Polypropylene

518325783

$11.42

16

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

18

RH Slide Bracket

518324885

$35.79

19

LH Slide Bracket

518324886

$35.79

20

RH Rear Base

518325973

$17.88

21

LH Rear Base | Includes 10v to 10x

518325974

$17.88

22

RH Roller

518324812

$175.34

23

LH Roller

518324813

$175.34

24

Insert

293450275

$11.36

25

RH SEAL - Call your local BRP dealership

518325653

Unavailable

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

28

FRONT RADIATOR ASS'Y - Call your local BRP dealership

518326489

Unavailable

29

Clinch Stud M6 X 20

250300027

$1.87

30

Rear Radiator 120''

518327580

$739.52

31

Stavex Rivet

293150144

$0.75

32

Rear Cap

518327105

$20.12

33

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

36

Full Moon Dart 5 mm

293730042

$2.06

37

Insert M5 X 0.8

293450268

$1.90

A

Pop Rivet 3/16"

390402300

$0.73

B

Avex Rivet

390909200

$0.28

C

Avex Rivet

390909100

$0.28

D

Stavex Rivet

293150144

$0.75

E

Henrob Rivet

293150146

$1.87

F

Hemlock Rivet, 6.4 mm

293150174

$6.24

G

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable
