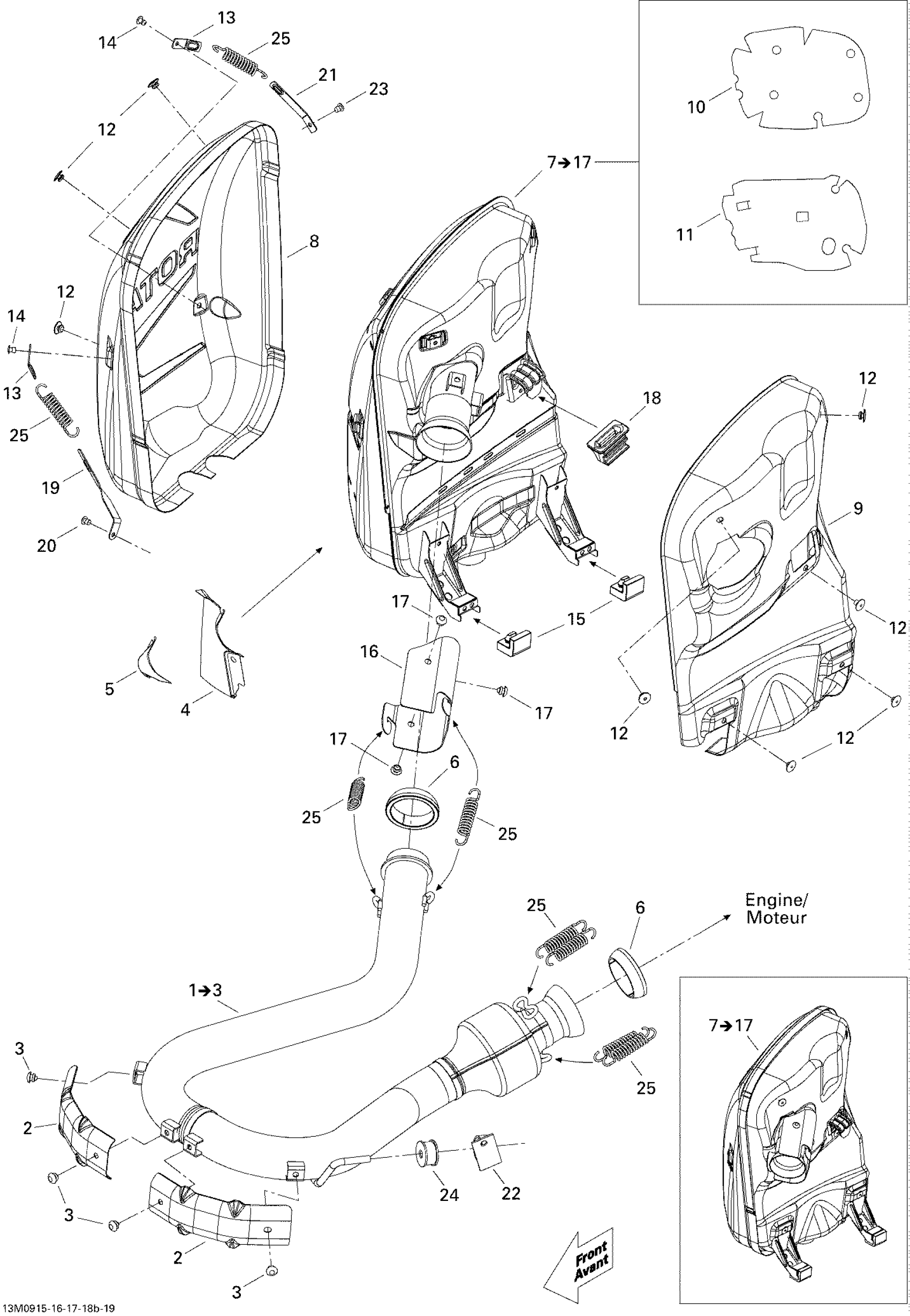

Ski-Doo MX Z Renegade 1200 4-TEC, 2009 Exhaust System Diagram

#

Description
Price

1

Long Tube Ass'y

514055074

$394.58

2

DEFLECTOR - Call your local BRP dealership

514054564

Unavailable

3

Rivet 6,4 mm

293150173

$3.38

4

REFLECTIVE SHEET - Call your local BRP dealership

514054398

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

514054399

Unavailable

6

Exhaust Gasket

514054174

$27.66

7

MUFFLER ASS'Y - Call your local BRP dealership | Includes 7 to 17

514054621

$701.51

8

RH HEAT SHIELD - Call your local BRP dealership

514054474

Unavailable

9

LH HEAT SHIELD - Call your local BRP dealership

514054369

$42.28

10

INSULATING WOOL - Call your local BRP dealership

514054256

$17.66

11

INSULATING WOOL - Call your local BRP dealership

514054257

$17.66

12

Pop Rivet 3/16”

390910000

$0.48

13

Spring Bracket

514054522

$6.28

14

Avex Rivet

390909200

$0.29

15

Lower Stopper

514054496

$26.12

16

DEFLECTOR - Call your local BRP dealership

514054396

$17.66

17

Rivet 6,4 mm

293150173

$3.38

18

Stopper

514054346

$18.43

19

Spring Bracket

514055030

$10.55

20

Avex Rivet

390909100

$0.29

21

SPRING BRACKET - Call your local BRP dealership

514054484

$6.80

22

Support

514054600

Unavailable

23

Avex Rivet

390909200

$0.29

24

Anti-Vibration Rubber

707600702

$8.34

25

Spring

514054226

$6.20
