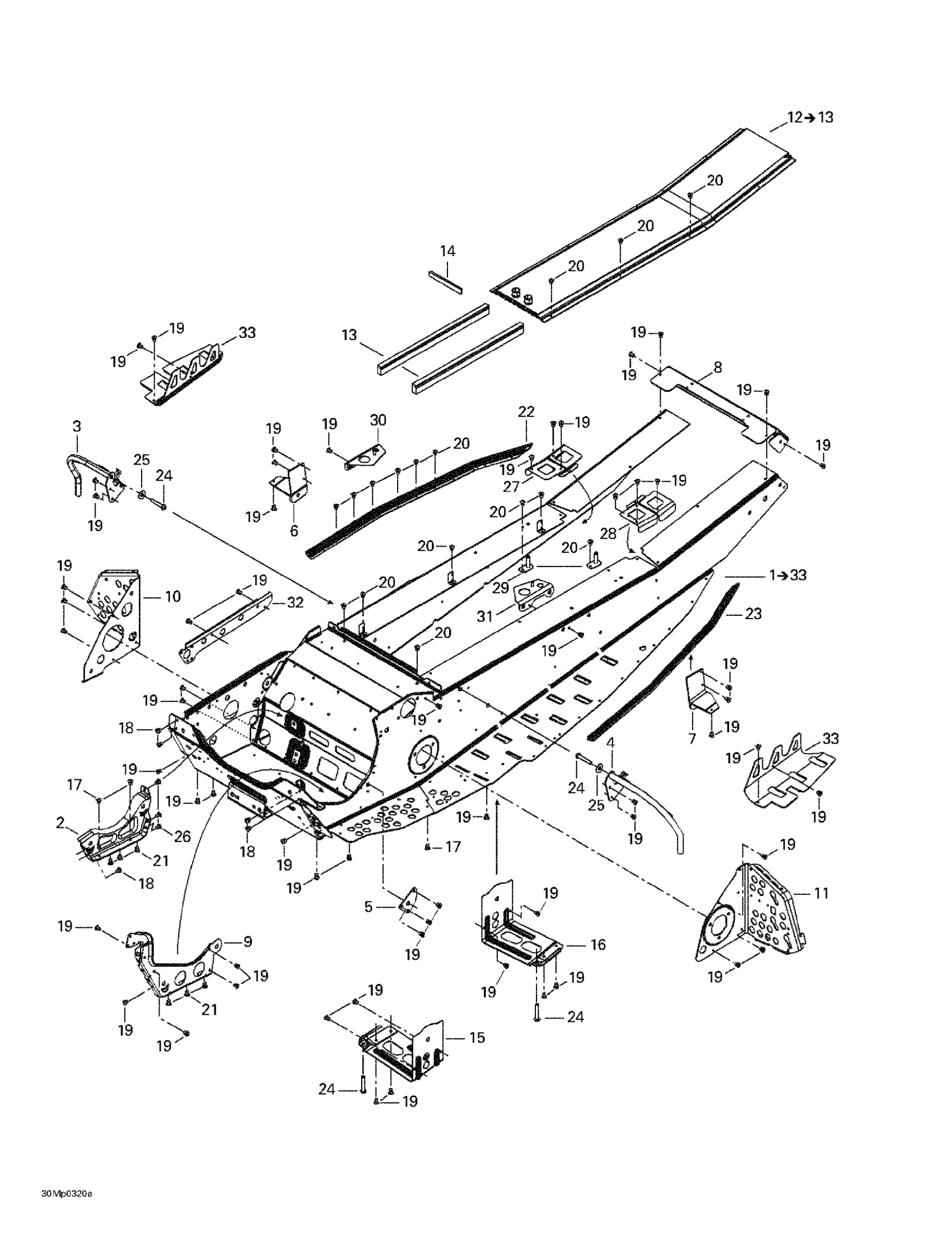

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Frame Diagram
#
Description
Price
1
Frame ass'y | Includes 1 - 33.
415128560
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Slide Bracket
518323572
Unavailable
7
LH SLIDE BRACKET - Call your local BRP dealership
518323573
Unavailable
8
Rear cap
518322938
Unavailable
9
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
10
RH footrest reinforcement
518323369
Unavailable
11
LH footrest reinforcement
518323370
Unavailable
12
Rear radiator | Includes 12 - 13.
518323550
Unavailable
13
RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.
415012300
Unavailable
15
RH footrest
518323574
Unavailable
16
LH footrest
518323576
Unavailable
17
Avex Rivet
390909200
Unavailable
20
Pop Rivet 3/16"
390402400
Unavailable
21
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
22
RH Roller
518323551
Unavailable
23
LH Roller
518323552
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
29
Tank Bracket
518322791
Unavailable
30
RH Frame Reinforcement, Black
518323336
Unavailable
31
LH Frame Reinforcement, Black
518323337
Unavailable
32
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
