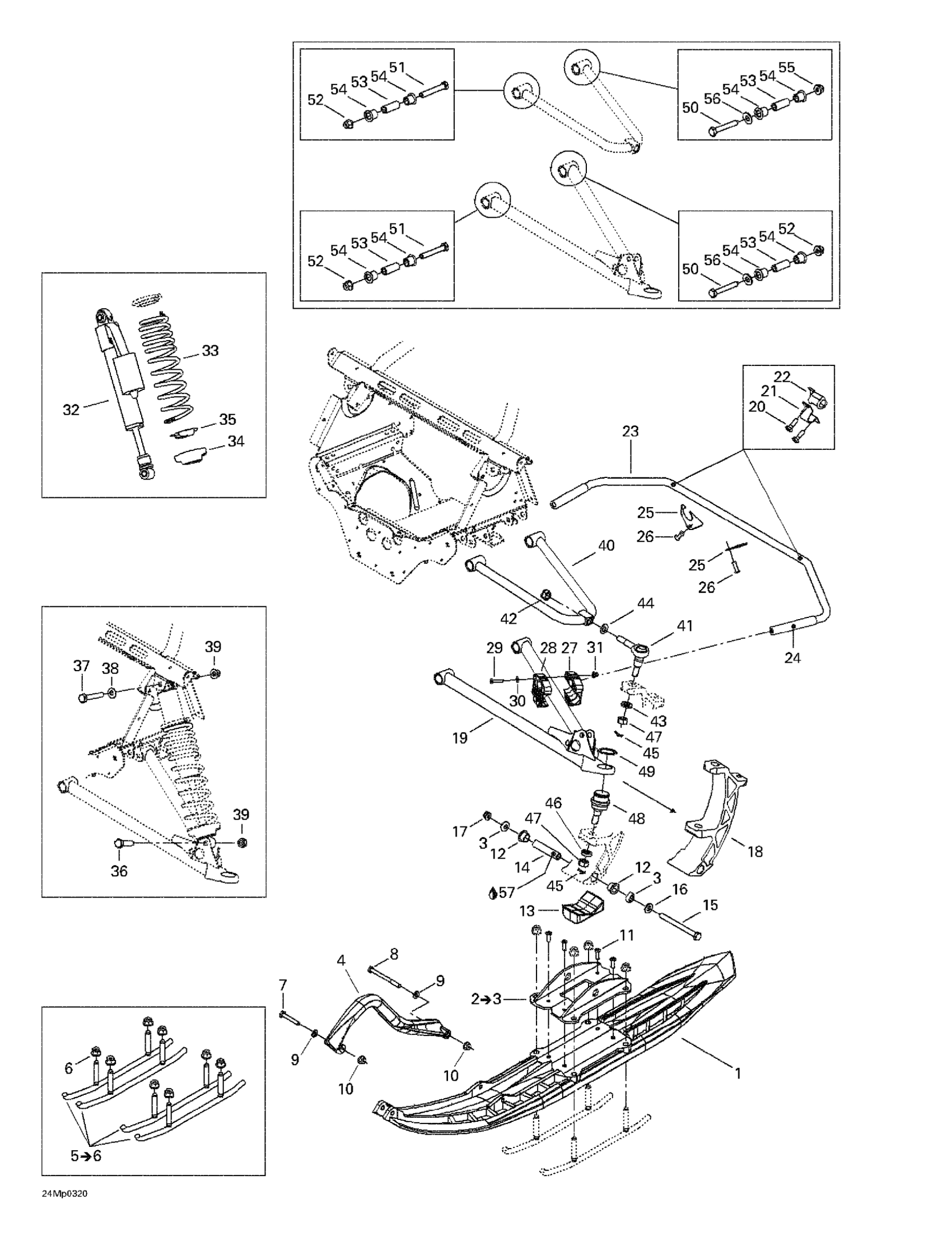

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Yellow Handle | Model-MX-Z TNT

505070917

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

Unavailable

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

Ski Leg

505071094

Unavailable

19

RH Lower Arm

505071088

Unavailable

LH Lower Arm

505071091

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING, 5/8? - Call your local BRP dealership

505070665

Unavailable

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

23

Stabilisator, 5/8”

505070659

Unavailable

24

STABILISATOR BOOT, 5/8? - Call your local BRP dealership

505070750

Unavailable

25

Plug

505070874

Unavailable

26

Pop Rivet 3/16"

293150103

Unavailable

27

RH HALF SLIDER - Call your local BRP dealership

505070667

Unavailable

28

LH Half Slider

505070668

Unavailable

29

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

30

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

Unavailable

32

RH Front Shock

505070904

Unavailable

LH Front Shock

505070903

Unavailable

RH Front Shock

505070938

Unavailable

LH Front Shock

505070937

Unavailable

33

Spring

505071162

Unavailable

Spring

505071162

Unavailable

34

Spring Stopper

706200881

$10.30

35

Cap

706200785

Unavailable

36

Hex. Screw M10 X 55

207005544

$1.85

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

Washer

732900049

Unavailable

39

Hex. Flange Elastic Nut M10

233201414

$1.26

40

Upper Arm

505071165

Unavailable

41

Upper Ball Joint

505072257

$16.89

42

Hex. Flange Elastic Nut M12

250000047

Unavailable

43

Flat Washer 12 mm

234021410

$0.68

44

Washer

503189276

Unavailable

45

Cotter Pin

211400017

Unavailable

46

Washer

505071184

Unavailable

47

Hex. Castellated Nut M12

232221414

Unavailable

48

Lower Ball Joint

505071074

Unavailable

49

Circlip

293370035

$2.55

50

Cone Screw M10 X 75

250000114

Unavailable

51

Hex. Screw M10 X 70

207007044

Unavailable

52

Hex. Flange Elastic Nut M10

233201414

$1.26

53

Bushing

505070567

Unavailable

54

Arm Bushing

505070566

Unavailable

55

Elastic Locking Nut M10 X 1.5

233601416

$1.68

56

Washer

503189564

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
