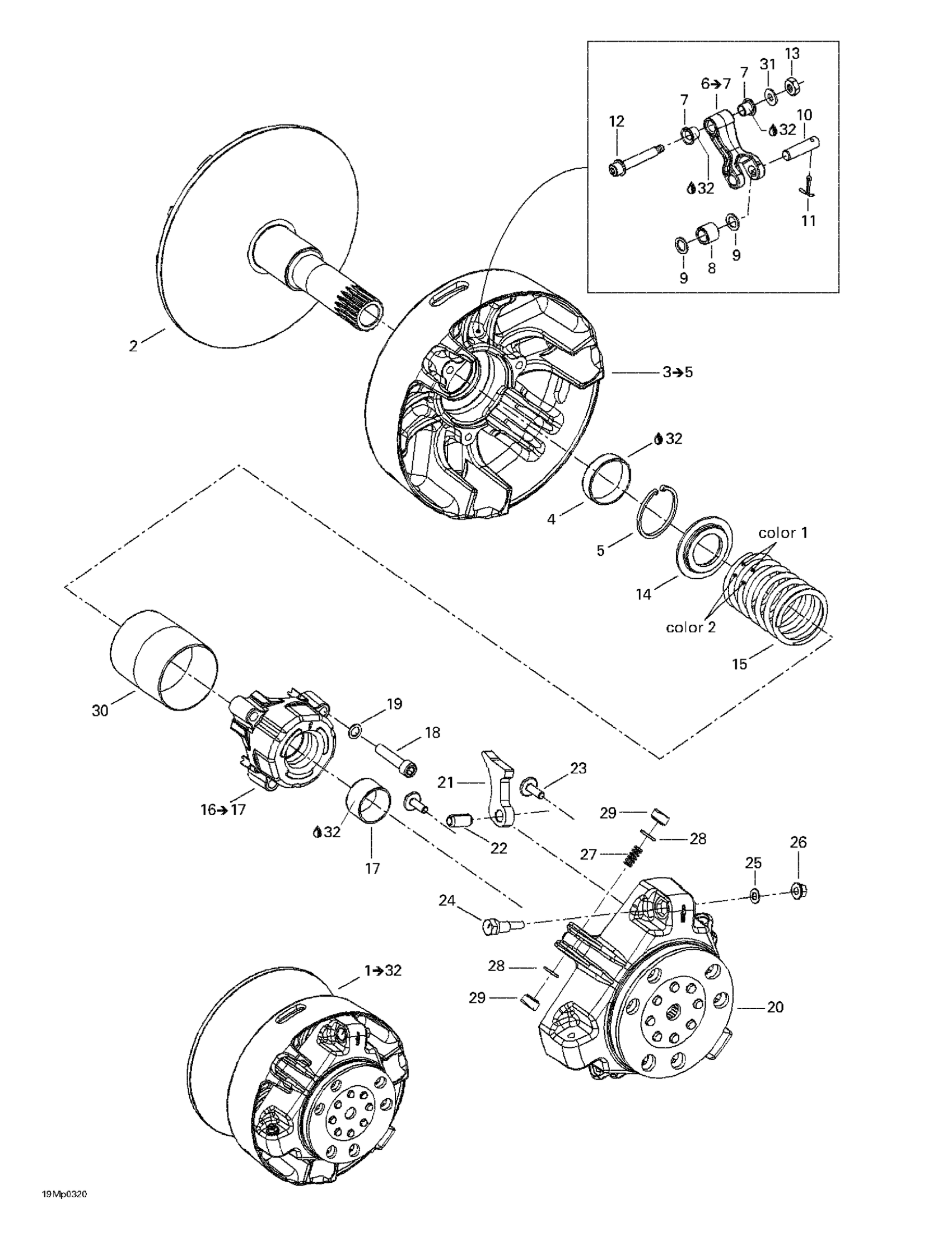

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

$281.51

3

Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.

415129293

$433.82

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Lever | Includes 10f to 10g

417222671

$32.28

7

Bushing

417004305

$4.62

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417004308

$13.18

11

Cotter Pin

250400060

$1.60

12

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

13

Elastic Stop Nut M6

232561414

$1.55

14

Spring Seat

417222312

$8.28

15

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

16

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

17

Bushing

417009204

$16.12

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

19

Lock Washer 8 mm

250200009

$2.06

20

Governor Cup

417222213

Unavailable

21

Ramp 414

417222546

$32.28

22

Spring Pin M10 X 22

250400050

$2.38

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

24

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

25

Washer

417005600

$3.86

26

Hex. Flange Nut M6

233061414

$1.34

27

Spring

417005700

$4.65

28

O-Ring

732401030

$0.95

29

Slider Shoe This part replaces 420460045.

417223021

$6.09

30

Guard

417009205

$16.89

31

Flat Washer 6 mm

234061410

$1.04

32

Loctite 609, 10 ml

413703100

$24.58
