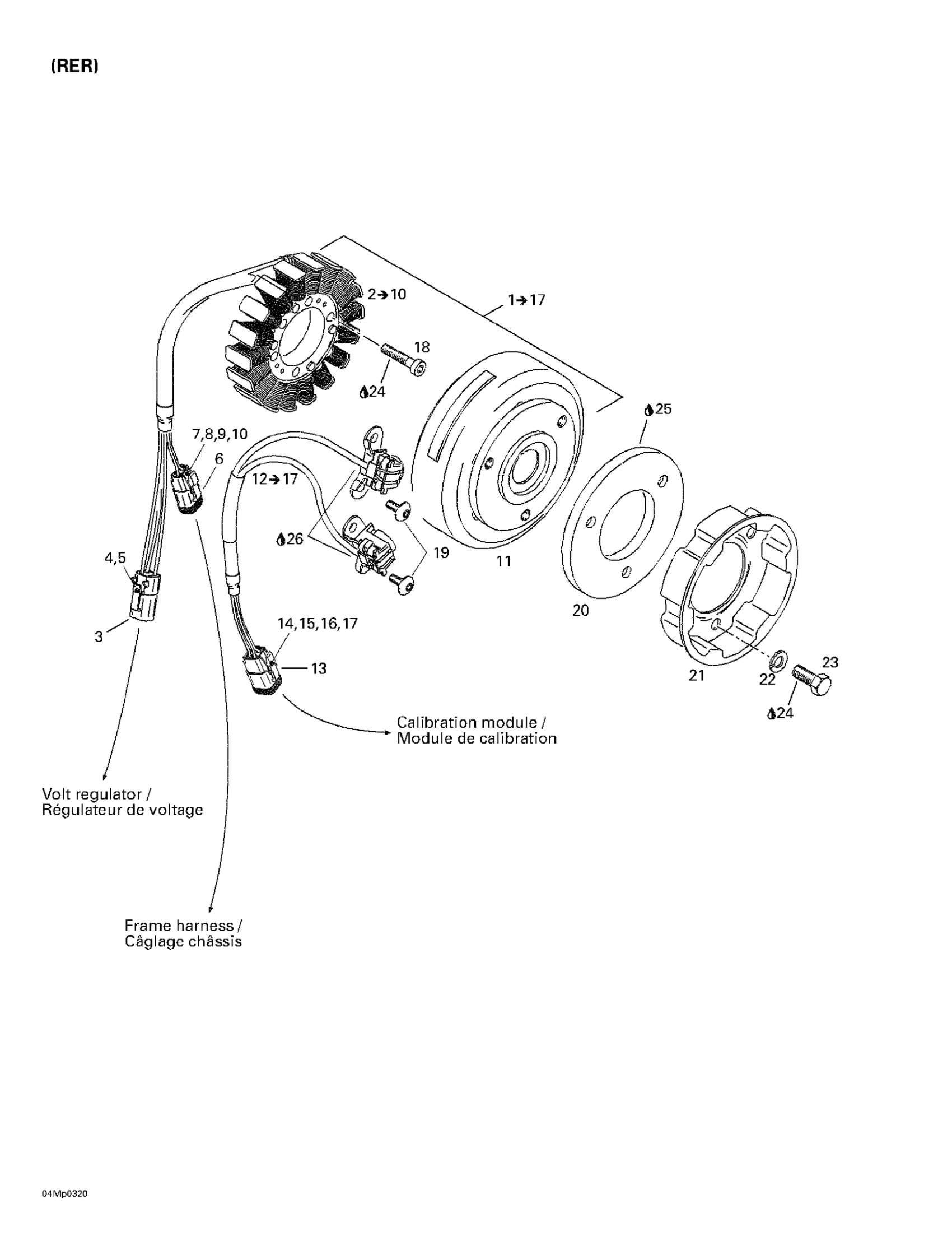

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Magneto (12V, 360W) Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Stator Plate A
420889905
Unavailable
3
Female Terminal Housing, 4 Circuits
278001473
Unavailable
5
Female Lock, 4 Circuits
278001474
Unavailable
6
Female Terminal Housing, 2 Circuits
515175670
Unavailable
7
Female Terminal
278000632
Unavailable
8
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
9
Female Lock, 2 Circuits
515175675
Unavailable
10
Sealing Cap
293000052
Unavailable
11
FLYWHEEL - Call your local BRP dealership
410922947
Unavailable
12
Pickup Ass'y
410922948
Unavailable
13
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
14
Female Terminal
278000632
Unavailable
15
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
16
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
17
Sealing Cap
293000052
Unavailable
18
Socket Head Screw M6 X 30
205063044
Unavailable
20
Flywheel
420866756
Unavailable
21
Starting Pulley | Manual Start This part replaces 420852532.
420852533
Unavailable
22
Washer-Lock Din.128
420945832
Unavailable
25
Sealant Loctite 648
219703000
Unavailable
26
SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership
293530011
Unavailable
