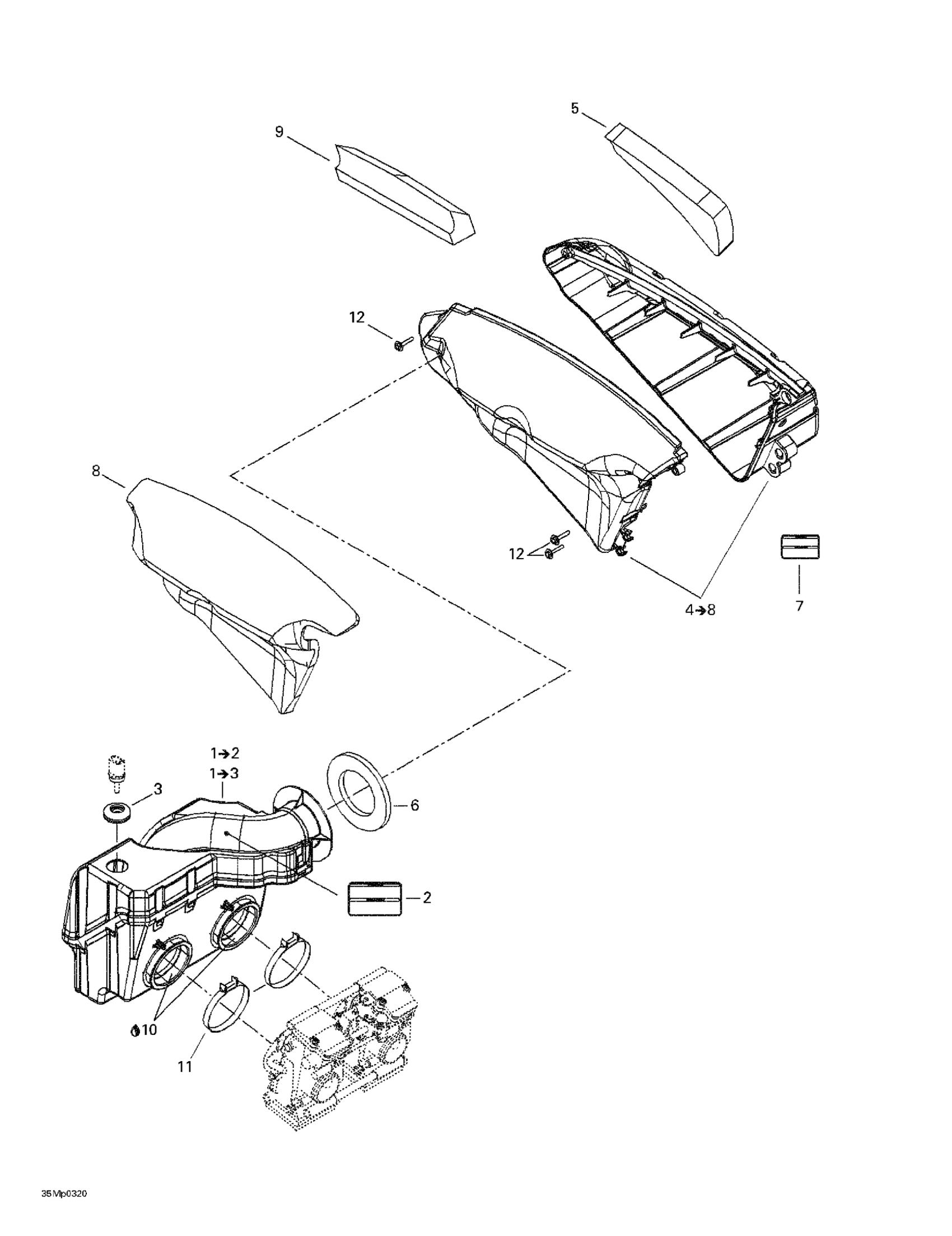

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Air Intake System Diagram

#

Description

Price

1

Chamber Ass’Y | Includes 1 - 3.

508000304

Unavailable

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

GROMMET - Call your local BRP dealership

570065500

Unavailable

4

Chamber Ass’Y | Includes 4 - 8.

508000302

Unavailable

5

Inner Foam

508000145

Unavailable

6

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

9

Air Filter

508000394

Unavailable

10

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

11

Gemi Clamp

508000346

$9.31

12

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable
