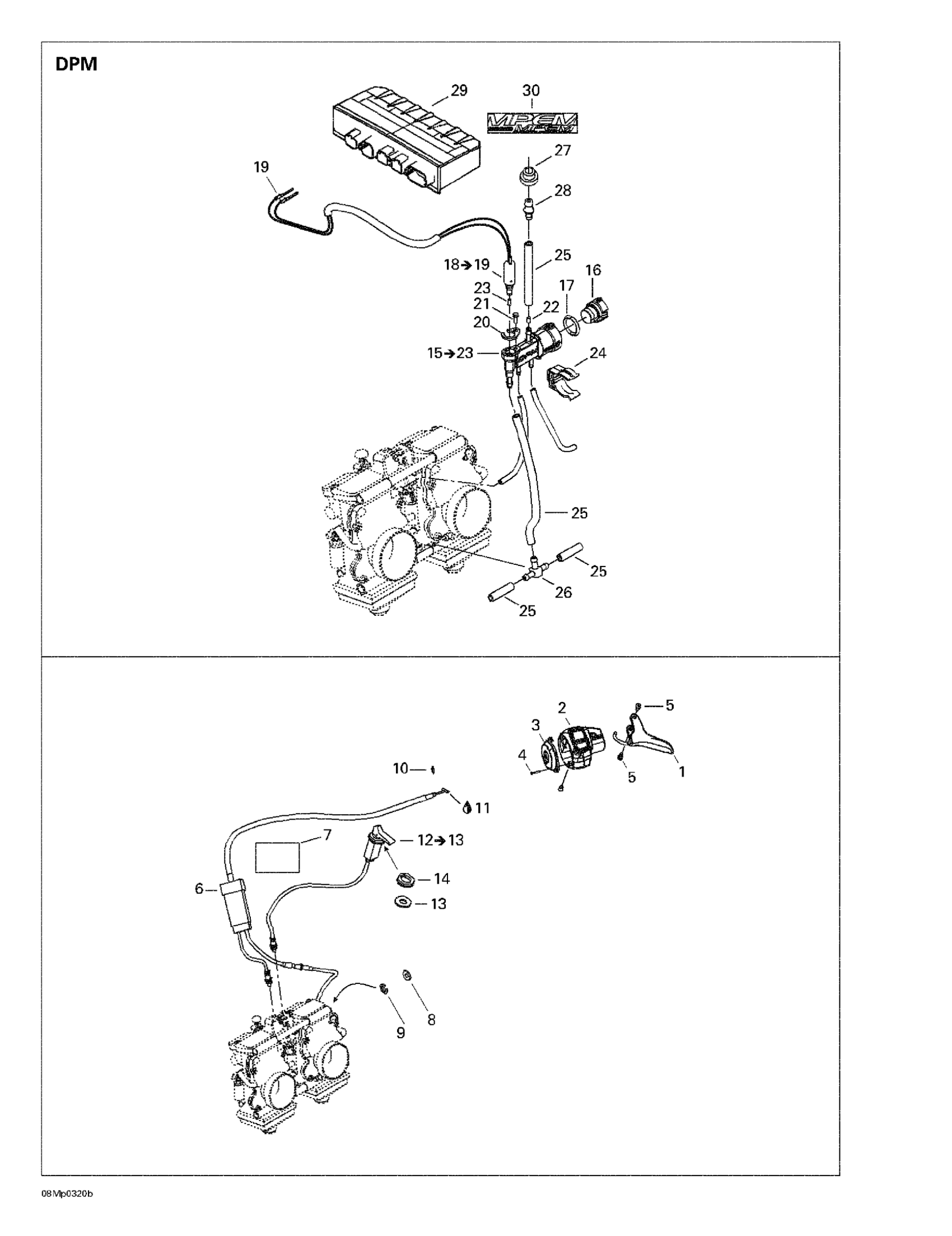

Ski-Doo MX Z Blair Morgan Special Edition, 2003 Engine 2 Diagram

#

Description
Price

1

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

2

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

3

COVER - Call your local BRP dealership

512059698

Unavailable

4

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

5

Flange Screw

732601143

$4.02

6

Throttle Cable

512060085

Unavailable

7

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.00

9

Circlip

414753500

$0.59

10

Circlip

414274500

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

12

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

15

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

16

CAP - Call your local BRP dealership

270600009

$5.63

17

O-RING - Call your local BRP dealership

293300042

$7.69

18

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

19

Female Terminal

278001665

Unavailable

20

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

21

Screw K40 X 10

241140060

$1.25

22

Not Available As Spare Part - Friction Washer

Unavailable

23

STARTER JET - Call your local BRP dealership

404161825

Unavailable

24

SUPPORT - Call your local BRP dealership

512058919

Unavailable

25

Polyurethane Hose 10000Mm Long

219704410

Unavailable

26

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

27

Grommet

513032908

$8.74

28

Straight Fitting

293710035

$8.63

29

Calibrated Module

512059709

Unavailable

30

Electrical Box Decal

516000245

Unavailable
