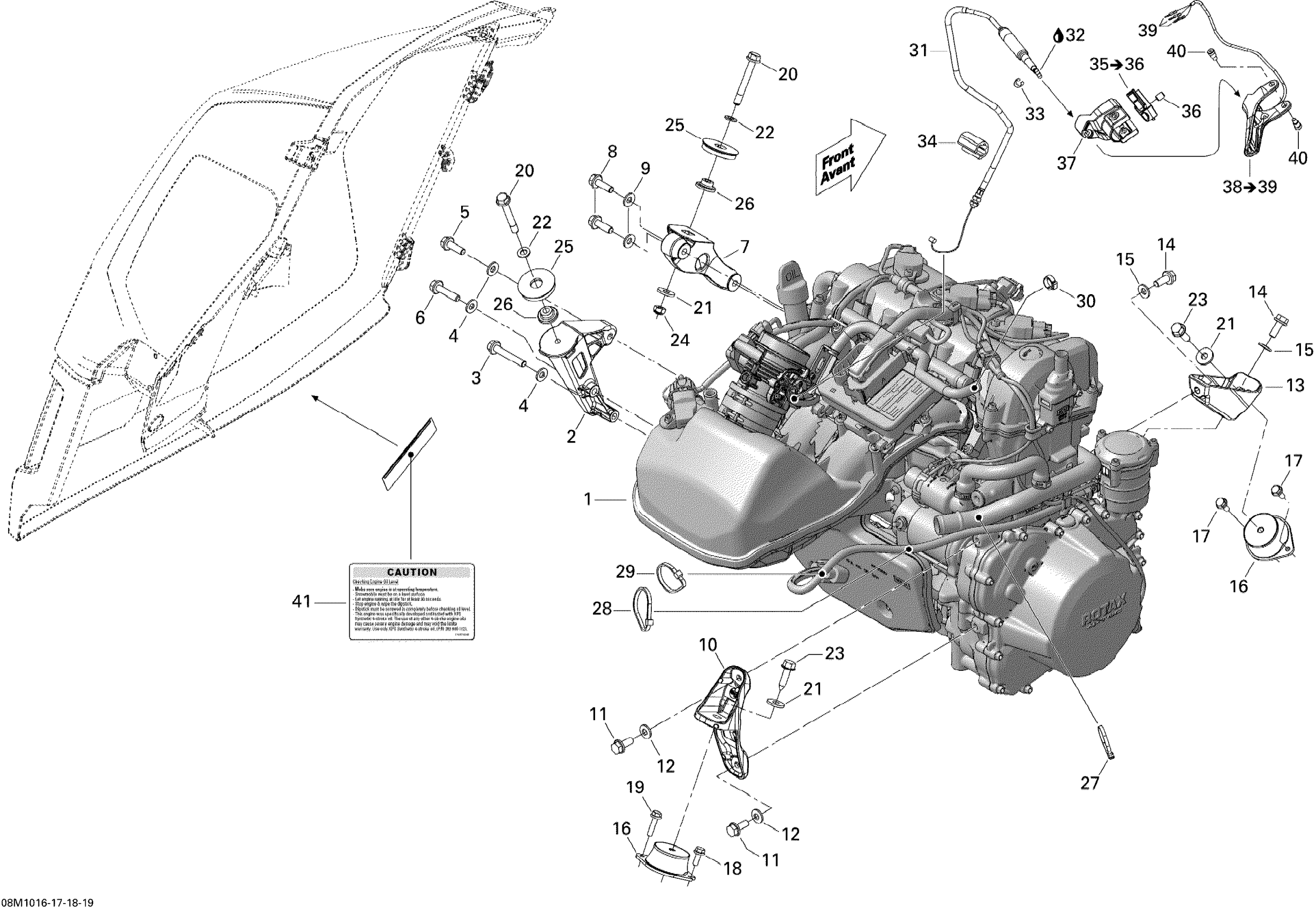

Ski-Doo MX Z Adrenaline 1200, 2010 Engine ADRENALINE Diagram

#

Description
Price

1

Long Block 1203

420120303

$5,769.99

28

REBUILT - Long Block1203

421000678

Unavailable

2

Rear Support, PTO

512060591

$44.00

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.15

4

Conical Spring Washer M8

234281474

$1.43

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6

Hex. Flange Screw M8 X 35

250000986

$2.00

7

FRONT SUPPORT, PTO - Call your local BRP dealership

512060232

Unavailable

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

9

Conical Spring Washer M8

234281474

$1.43

10

Rear Support, MAG

512060594

$29.07

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

12

Conical Spring Washer M8

234281474

$1.43

13

Front Support, MAG

512060596

$29.07

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

15

Conical Spring Washer M8

234281474

$1.43

16

Rubber Mount

512060729

$67.88

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

21

Yellow, Washer

503183200

$2.91

22

Flat Washer With Teflon 8 mm

250200008

$3.58

23

Cone Screw, M8 X 30

250000257

$1.67

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Stopper This part replaces 512060244.

512061202

$17.88

26

Spacer

512060285

$17.13

27

Tie-Rap 180 mm

414115200

$0.10

28

Tie-Rap 180 mm

414115200

$0.10

29

Tie-Rap 180 mm

414115200

$0.10

30

Oetiker Gear Clamp

293650025

$2.82

31

THROTTLE CABLE - Call your local BRP dealership

512060673

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

Circlip

414274500

$0.85

34

Protector

512060313

$9.03

35

Upper Housing Ass'y

512060198

Unavailable

36

Socket Set Screw M8 X 10

414440800

$3.88

37

Lower Housing

512060860

$16.39

38

Throttle Handle Ass'y

512061252

$114.15

39

Male Terminal

515175232

$1.45

40

Flange Screw

732601143

$3.90

41

Caution Decal, Oil Level

516005521

Unavailable
