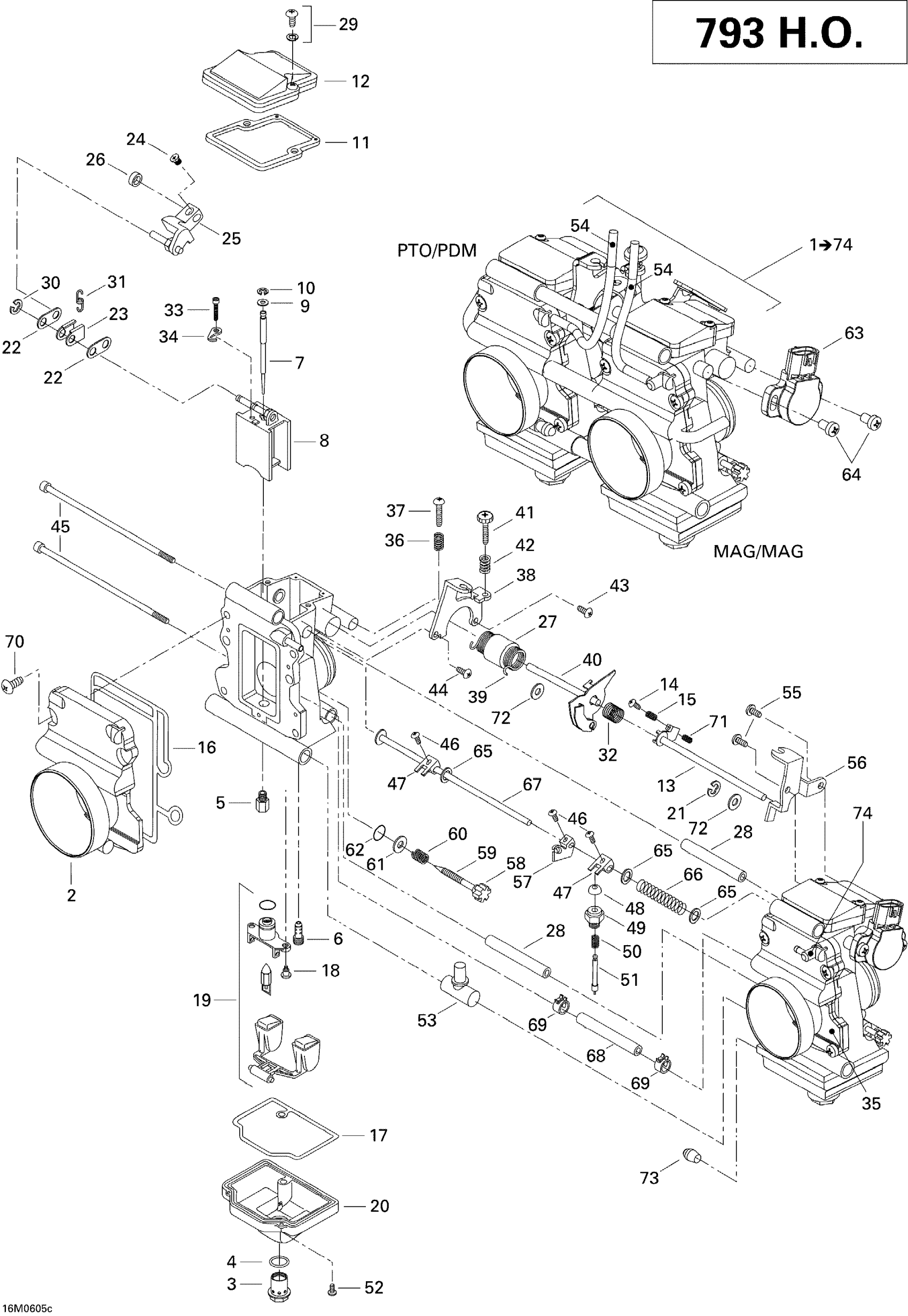

Ski-Doo MX Z 800 HO Adrenaline & X, 2006 Carburetor Diagram
#
Description
Price
1
Carburetor Kit TM40-B322
403138778
Unavailable
2
Funnel, PTO
404162017
Unavailable
3
DRAIN SCREW - Call your local BRP dealership
404161955
Unavailable
5
MAIN JET 440 - Call your local BRP dealership
404108100
Unavailable
13
Throttle Shaft
404162077
Unavailable
20
BODY FLOAT ASS'Y - Call your local BRP dealership
404161960
Unavailable
27
Ring
404161925
Unavailable
28
RING - Call your local BRP dealership
404161924
Unavailable
35
Funnel, MAG
404162021
Unavailable
36
Spring
404161918
Unavailable
37
Screw
404161917
Unavailable
45
Screw
404161911
Unavailable
47
Lever
404161909
Unavailable
54
Hose
404162001
Unavailable
64
SCREW - Call your local BRP dealership
404162080
Unavailable
