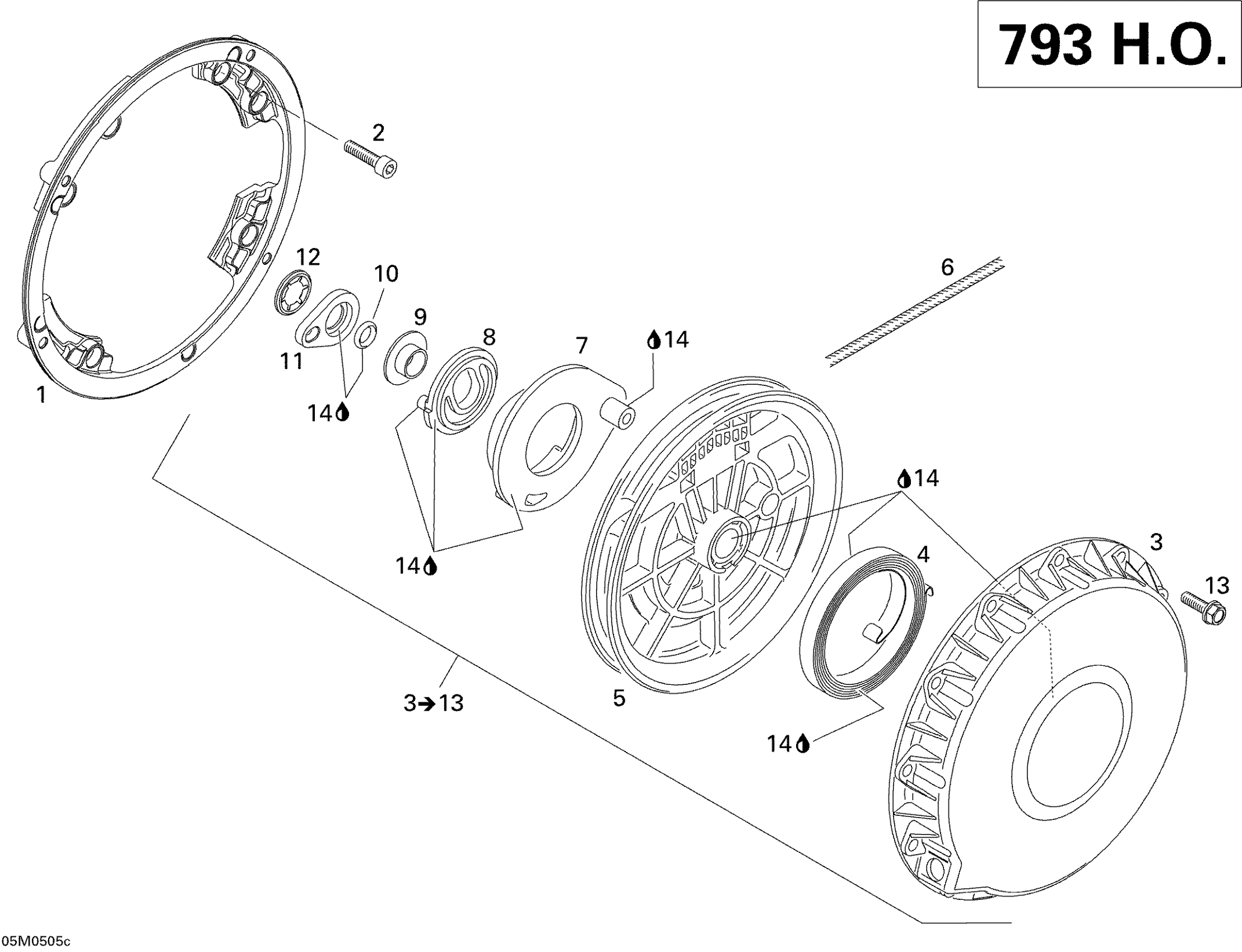

Ski-Doo MX Z 800 HO Adrenaline & X, 2005 Rewind Starter 793HO Diagram
#
Description
Price
2
Socket Head Screw M6 x 16
420241237
Unavailable
6
Was 412500100 Rope-Starter
219704403
Unavailable
9
Stage Sleeve
420847926
Unavailable
10
O-Ring
420250400
Unavailable
11
Lock Ring
420852520
Unavailable
12
Locking Element
420845560
Unavailable
13
Torx Flange Screw M6 X 20
420441386
Unavailable
14
Molykote PG 54, 10 g
420899763
Unavailable
