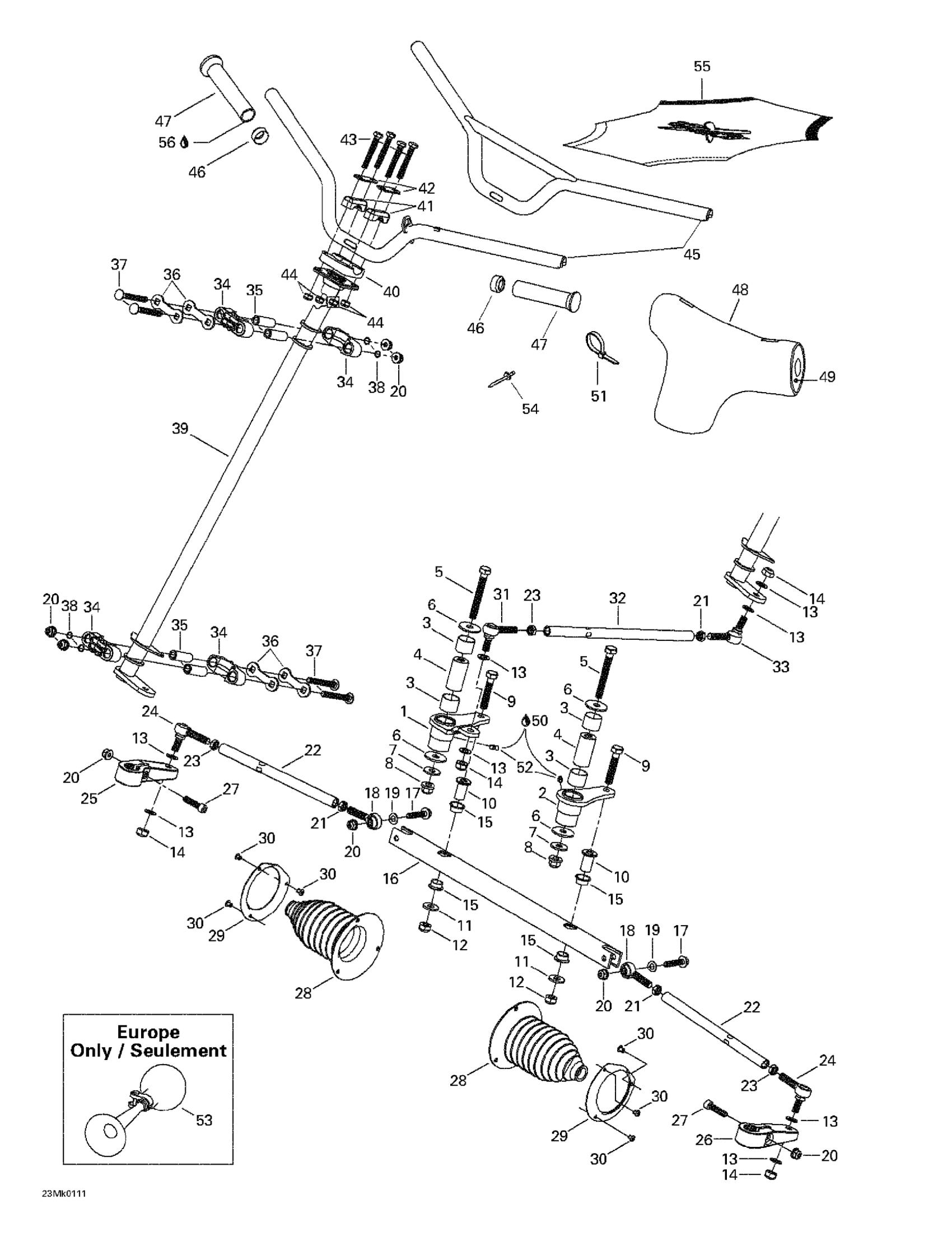

Ski-Doo MX Z 800, 2001 Steering System Diagram
#
Description
Price
1
Heating Grip
515175573
Unavailable
2
GAINE LOW TEMP.VINYL - Call your local BRP dealership
515175314
Unavailable
3
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
9
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
10
Brake Housing
515175307
Unavailable
DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550
572079500
Unavailable
12
Light Switch | 500 F.
515175390
Unavailable
13
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership
250000022
Unavailable
14
Switch Decal
415025500
Unavailable
15
Female Terminal Housing, 13 Circuits
515175350
Unavailable
16
Female Terminal
515175231
Unavailable
19
Female Terminal
515175231
Unavailable
20
Kill Switch
515175410
Unavailable
21
Microswitch
507032366
Unavailable
22
Throttle Handle
512059481
Unavailable
23
Loctite BLACK/MAX Gel Tube, 20 g
293800061
Unavailable
24
Plate | SWT 550
517283800
Unavailable
