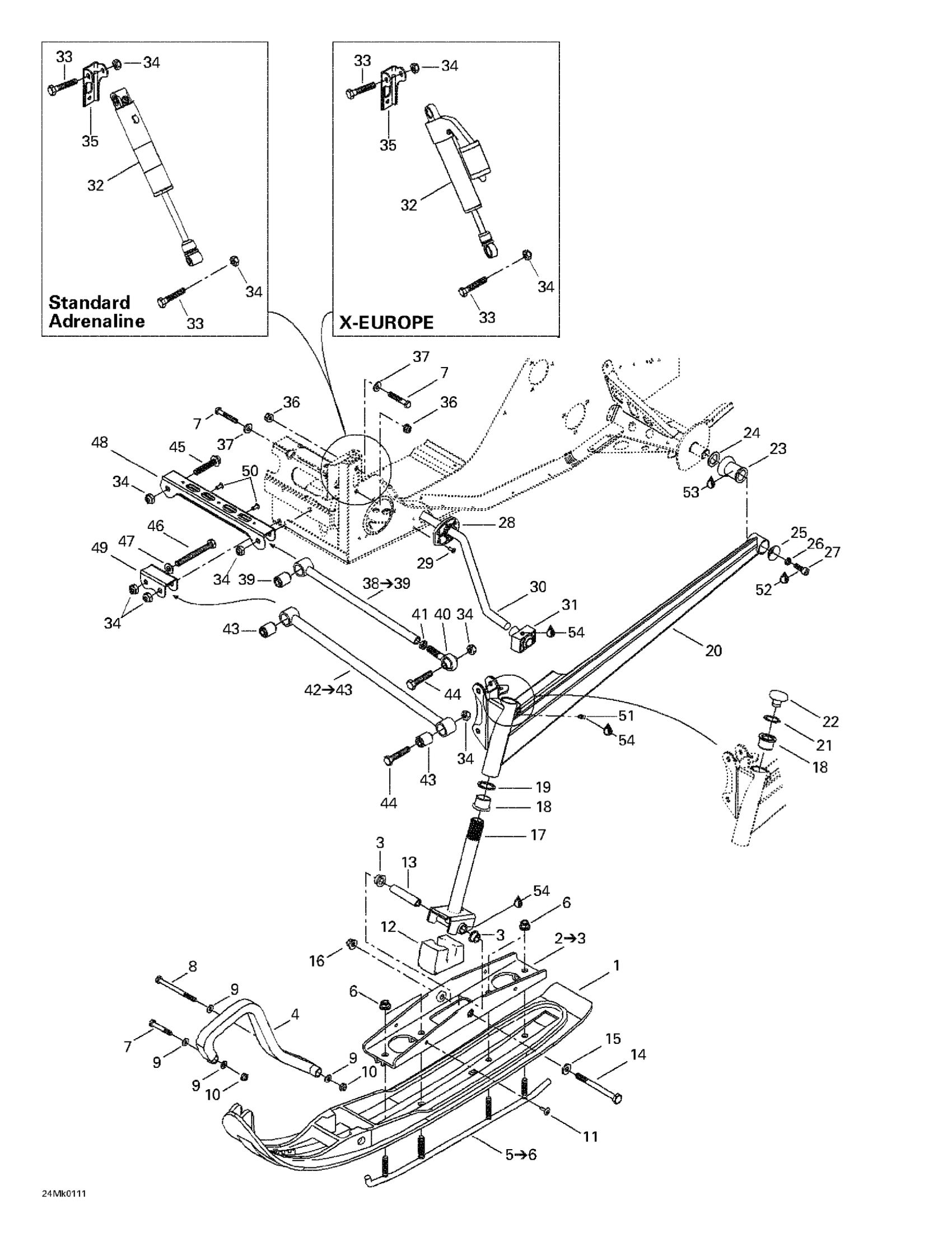

Ski-Doo MX Z 800, 2001 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

Unavailable

Ski-Liner Flex

505070189

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Hex. Screw M8 X 50

207085044

Unavailable

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Elastic Stop Nut M8

232581414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

Unavailable

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

Unavailable

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.97

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

$4.42

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

Unavailable

27

Socket Head Screw M8 X 25

205082544

Unavailable

28

BUSHING - Call your local BRP dealership

505070139

Unavailable

29

Pop Rivet 3/16"

390402300

Unavailable

30

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

31

BALL JOINT BLOCK - Call your local BRP dealership

505070121

Unavailable

32

Front Shock Ass'y (STD-ADR)

505070512

Unavailable

Front Shock RH (X) | MX-Z 600. MX-Z 700.

505070641

Unavailable

Front Shock RH (EUROPE) | Europe.

505070601

Unavailable

Front Shock LH (X) | MX-Z 600. MX-Z 700.

505070642

Unavailable

Front Shock LH (EUROPE) | Europe.

505070600

Unavailable

33

Hex. Screw M10 X 55

207005544

$1.85

34

Elastic Locking Nut M10 X 1.5

233601416

$1.68

35

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

36

Hex. Flange Elastic Nut M8

233281414

Unavailable

37

Washer

506151245

Unavailable

38

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 - 42. ADRENALINE & TRAIL

505070214

Unavailable

39

Bushing

505070025

Unavailable

40

Ball Joint

415068400

Unavailable

41

Nut Hexagonal RH.

232026414

Unavailable

42

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

43

Bushing

505070025

Unavailable

44

Hex. Screw M10 X 55

207005544

$1.85

45

Hex. Flange Screw M10 X 55

207605544

Unavailable

46

Hex. Screw M10 X 95

207009544

Unavailable

47

Flat Washer 10 mm

234001410

Unavailable

48

Upper Arm Bracket

505070010

Unavailable

49

Lower Arm Bracket

505070011

Unavailable

50

Pop Rivet 3/16"

390402200

$0.26

51

Grease Fitting

408200700

Unavailable

52

Loctite 243, 10 ml

293800060

$20.77

53

Grease, Super Lube

293550030

Unavailable

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
