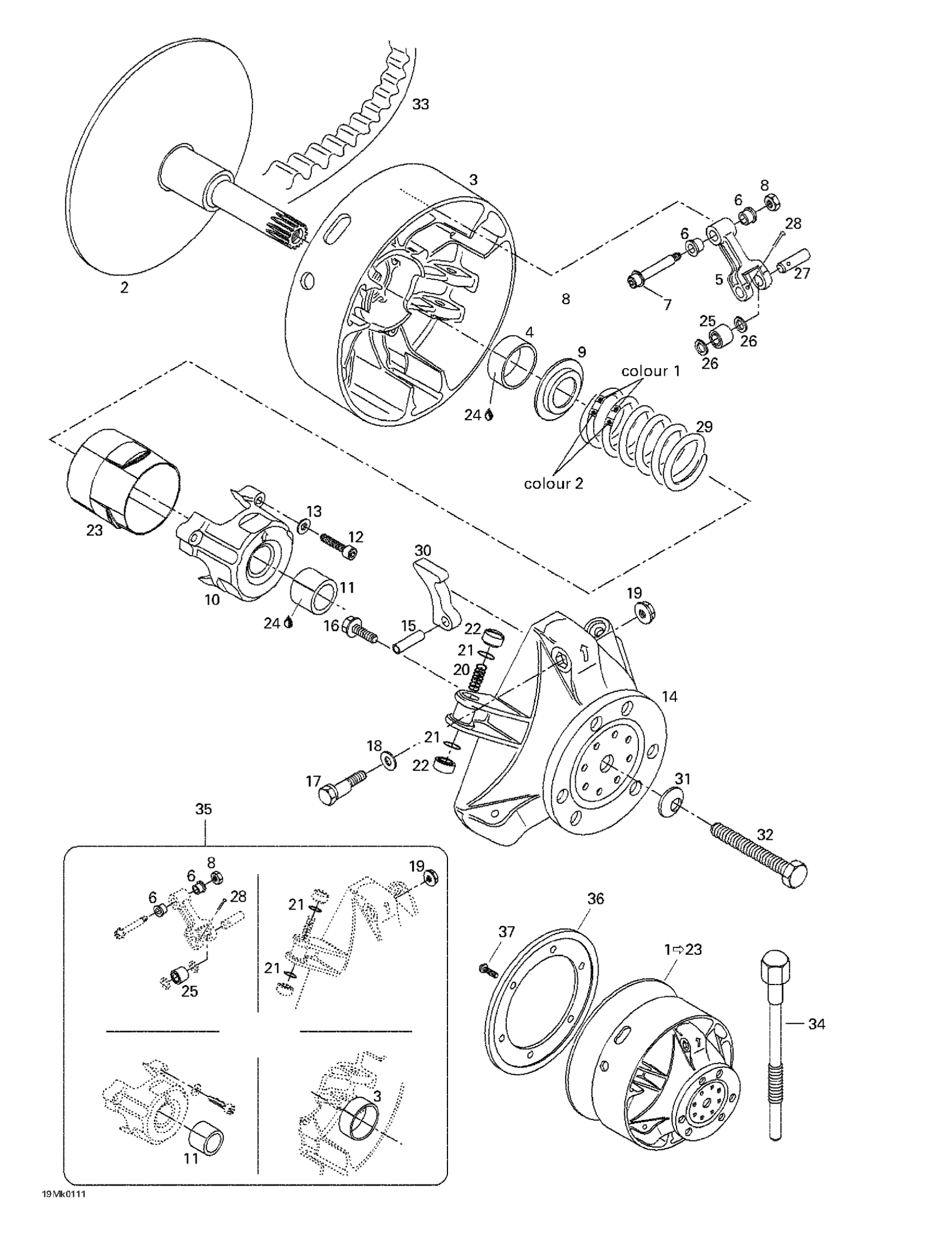

Ski-Doo MX Z 800, 2001 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417222366

Unavailable

2

FIXED FLANGE ASSY - Call your local BRP dealership

417222272

Unavailable

3

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

4

Bushing

417004201

$23.82

5

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

6

Bushing

417004305

$4.62

7

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

8

Elastic Stop Nut M6

232561414

$1.55

9

Spring Seat

417222044

Unavailable

10

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

11

Bushing

417004501

Unavailable

12

Socket Head Screw M6 X 40

250000038

$6.52

13

WASHER - Call your local BRP dealership

420245370

Unavailable

14

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

15

Pin M8 X 24

732804009

Unavailable

16

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

17

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

18

Washer

417005600

$3.86

19

Hex. Flange Nut M6

233061414

$1.34

20

Spring

417005700

$4.65

21

O-Ring

732401030

$0.95

22

Slider Shoe This part replaces 420460045.

417223021

$6.09

23

Guard

417222176

Unavailable

24

Loctite 609, 10 ml

413703100

$24.58

25

Roller

417222947

$19.97

26

Stopper Washer

417004302

$15.99

27

Pin

417004308

$13.18

28

Cotter Pin

250400060

$1.60

29

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

30

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

31

Spring Washer 14 mm

250200006

$5.80

32

Drive Pulley Bolt

417120000

$63.82

33

Drive Belt

417300585

$154.58

34

Puller This part replaces 529022400.

529000064

$73.99

35

Clutch Repair Kit

417006100

$175.35

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Hex. Screw M8 X 16

236281684

$4.00
