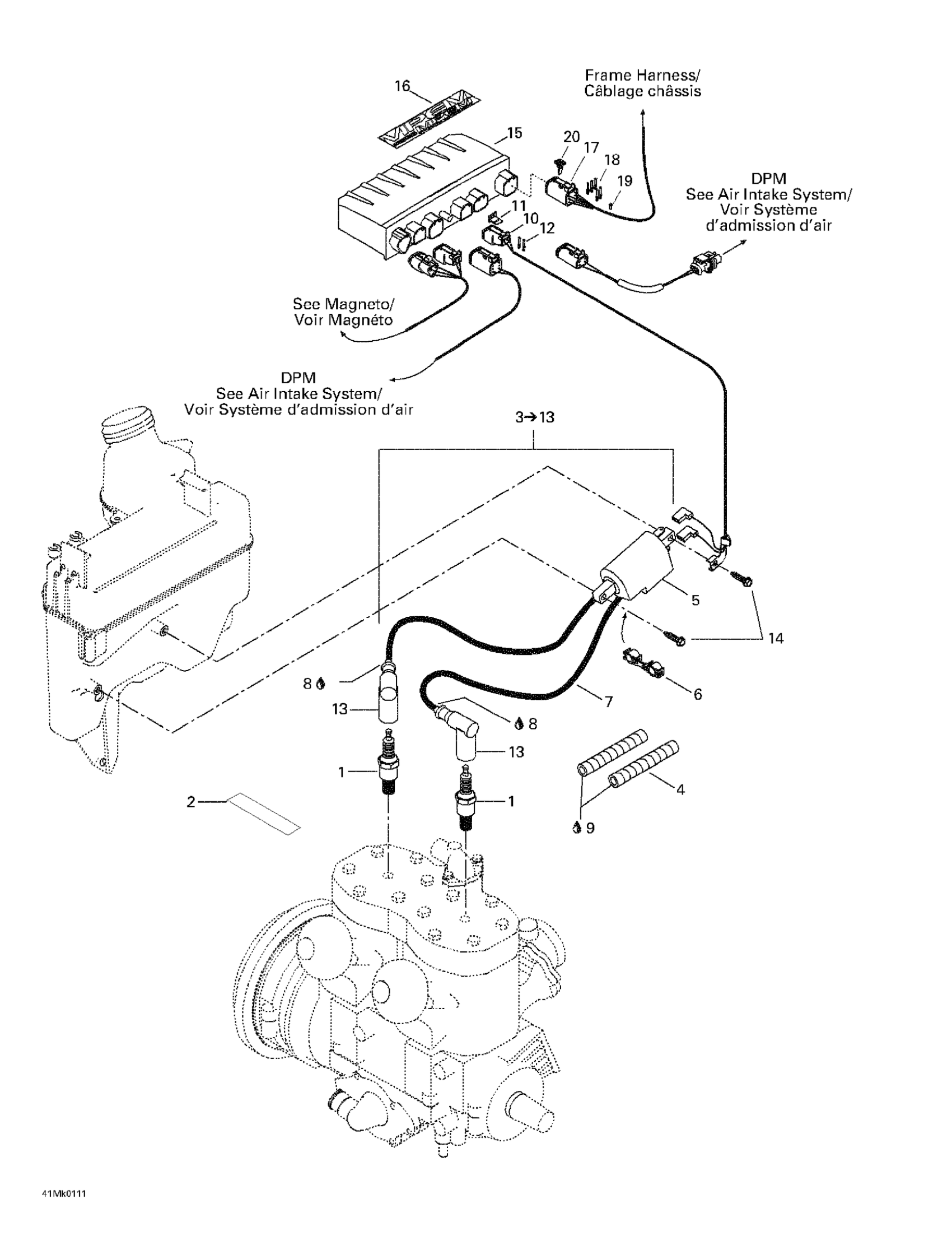

Ski-Doo MX Z 800, 2001 Ignition Diagram
#
Description
Price
1
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
2
Spark Plug Decal
516000986
Unavailable
3
Ignition Coil Ass'y | Includes 3 - 13.
512059377
Unavailable
4
Tubing
512059376
Unavailable
5
Ignition Coil
512059363
Unavailable
6
Plastic Clip, Spark Plug Wire
410914600
Unavailable
7
Cable Ass’y, 375 mm
512059696
Unavailable
CABLE ASSY, 455 MM - Call your local BRP dealership
512059486
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
9
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
11
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
12
Female Terminal
278000632
Unavailable
13
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
14
14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.
296000365
Unavailable
15
Calibration Module (X-ADR-EURO)
512059431
Unavailable
Calibration Module (STD)
512059387
Unavailable
16
Electrical Box Decal
516000245
Unavailable
17
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
18
Female Terminal
278000632
Unavailable
19
Sealing Cap
293000052
Unavailable
20
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
