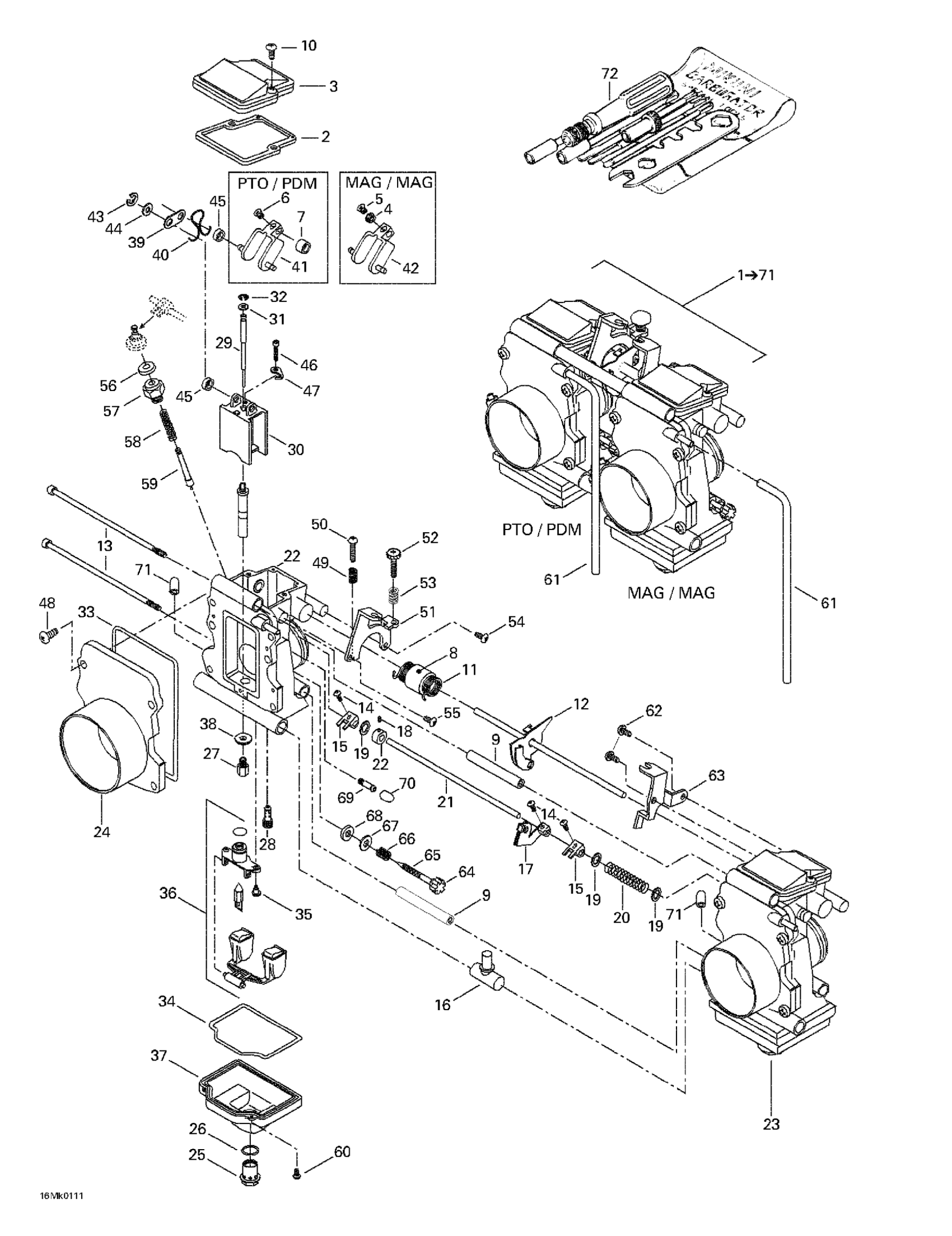

Ski-Doo MX Z 800, 2001 Carburetors Diagram
#
Description
Price
1
Carburetor Kit TM
403138661
Unavailable
4
Ring
404161937
Unavailable
5
Screw
404161936
Unavailable
8
Ring
404161925
Unavailable
9
RING - Call your local BRP dealership
404161924
Unavailable
11
Spring
404161915
Unavailable
12
Throttle Shaft
404161914
Unavailable
13
Screw
404161911
Unavailable
15
Lever
404161909
Unavailable
18
Screw | Formula Deluxe 600. Formula Deluxe 700.
404161949
Unavailable
21
Shaft | Formula Deluxe 600. Formula Deluxe 700.
404161952
Unavailable
22
Ring | Formula Deluxe 600. Formula Deluxe 700.
404161951
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
24
Funnel | MX-Z 600. MX-Z 700.
404161947
Unavailable
25
DRAIN SCREW - Call your local BRP dealership
404161955
Unavailable
29
Needle J8-9zly02-58 | Grand Touring 800.
404161962
Unavailable
30
Piston Valve 2.0
404161950
Unavailable
37
BODY FLOAT ASS'Y - Call your local BRP dealership
404161960
Unavailable
38
WASHER - Call your local BRP dealership
404161862
Unavailable
39
Plate
404161930
Unavailable
40
Clip
404161929
Unavailable
41
Lever (PTO)
404161927
Unavailable
42
Lever (MAG)
404161938
Unavailable
44
Washer
404161922
Unavailable
45
Ring
404161921
Unavailable
49
Spring
404161918
Unavailable
50
Screw
404161917
Unavailable
51
Bracket TM 40-98 (PTO)
404161916
Unavailable
61
HOSE - Call your local BRP dealership
404161904
Unavailable
63
Bracket, Mag
404161902
Unavailable
70
CAP - Call your local BRP dealership
404154900
Unavailable
72
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
