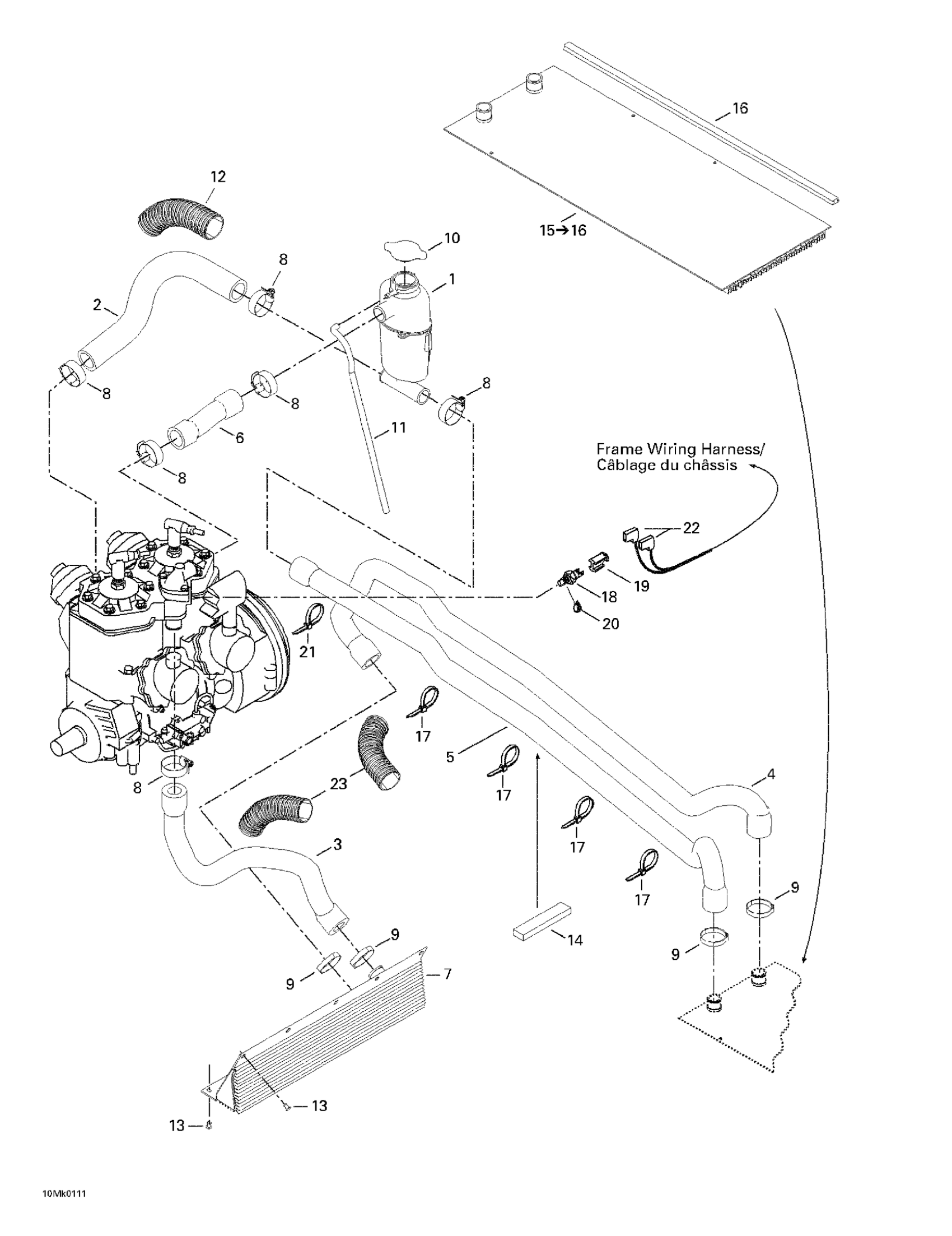

Ski-Doo MX Z 800, 2001 Cooling System Diagram

#

Description
Price

1

Tank Coolant

509000167

$89.20

2

Engine Inlet Hose

509000001

Unavailable

3

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

4

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

5

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

6

Deviation Hose | Grand Touring 500.

509000112

Unavailable

7

Front Radiator | Grand Touring 500.

517297100

Unavailable

8

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

9

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10

Pressure Cap

509000187

$27.66

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

12

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Neoprene Seal (1PAC=3M)

219704364

$22.72

15

Rear Radiator | Includes 29 - 30.

517296300

Unavailable

16

Radiator Protector

518321655

Unavailable

17

Tie Wrap 368 mm

293750008

$0.85

18

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

19

Connector Plug | Grand Touring 500.

515175297

Unavailable

20

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

21

Tie Wrap 142 mm

293750002

$0.88

22

Female Terminal

409010300

$4.12

23

Tubing 25 MM 1000MM Long

219704402

$12.69
