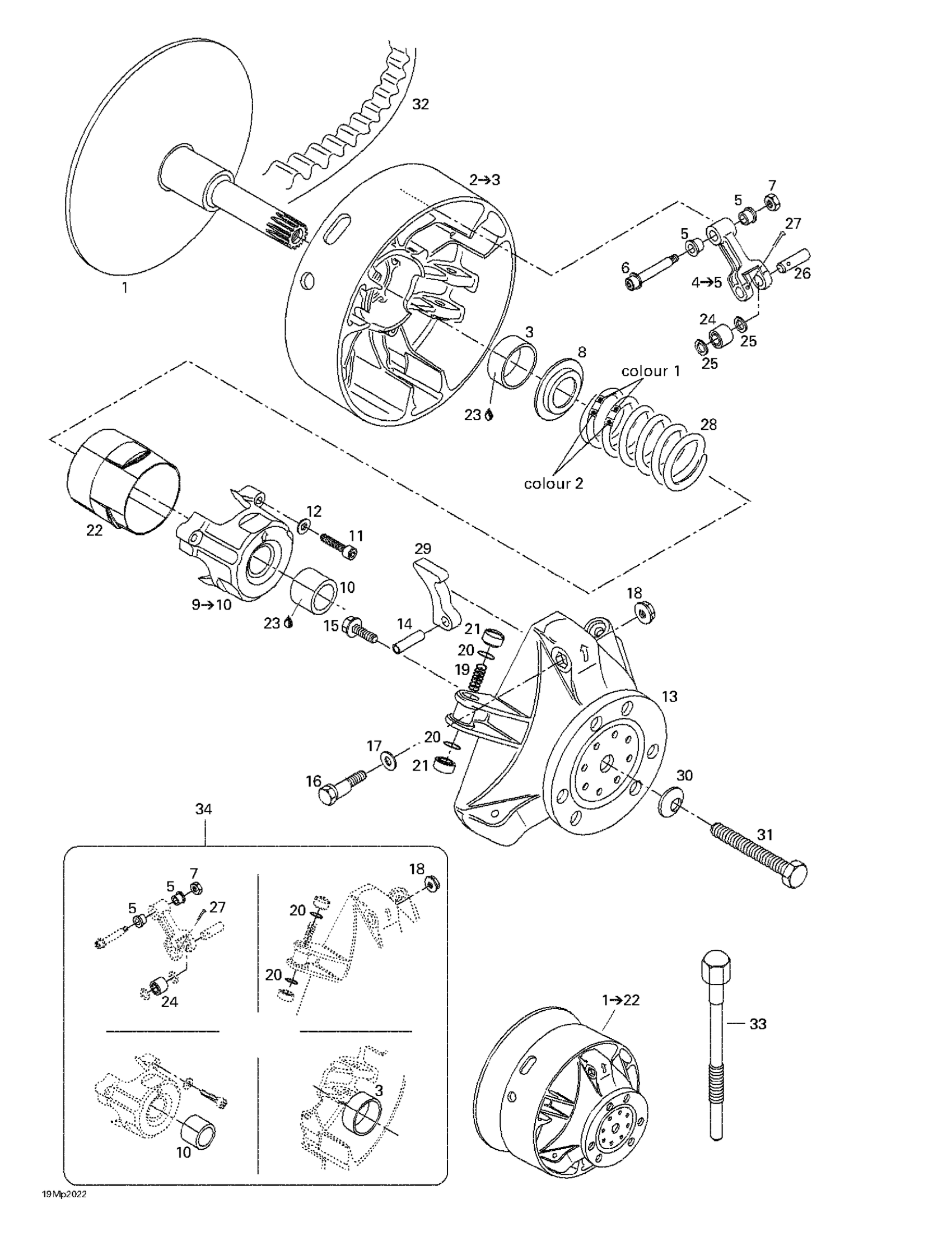

Ski-Doo MX Z 800, 2000 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y

417222324

Unavailable

1

FIXED FLANGE ASS'Y - Call your local BRP dealership

417222130

Unavailable

2

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

3

Bushing

417004201

Unavailable

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass'y | Includes 9 - 10.

417222298

Unavailable

10

Bushing

417004501

Unavailable

11

Socket Head Screw M6 X 40

250000038

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.86

18

Hex. Flange Nut M6

233061414

Unavailable

19

Spring

417005700

Unavailable

20

O-Ring

732401030

$0.95

21

Slider Shoe This part replaces 420460045.

417223021

$6.09

22

Guard

417222176

Unavailable

23

Loctite 609, 10 ml

413703100

$24.58

24

Roller

417222947

$19.97

25

Stopper Washer

417004302

$15.99

26

Pin

417004308

Unavailable

27

Cotter Pin

250400060

$1.60

28

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

29

Ramp 298 | Formula Deluxe 700.

417222271

Unavailable

30

Spring Washer 14 mm

250200006

Unavailable

31

Drive Pulley Bolt

417120000

$63.82

32

Drive Belt | Formula Deluxe 700.

417300067

Unavailable

33

Puller This part replaces 529022400.

529000064

Unavailable

34

Clutch Repair Kit

417006100

Unavailable
