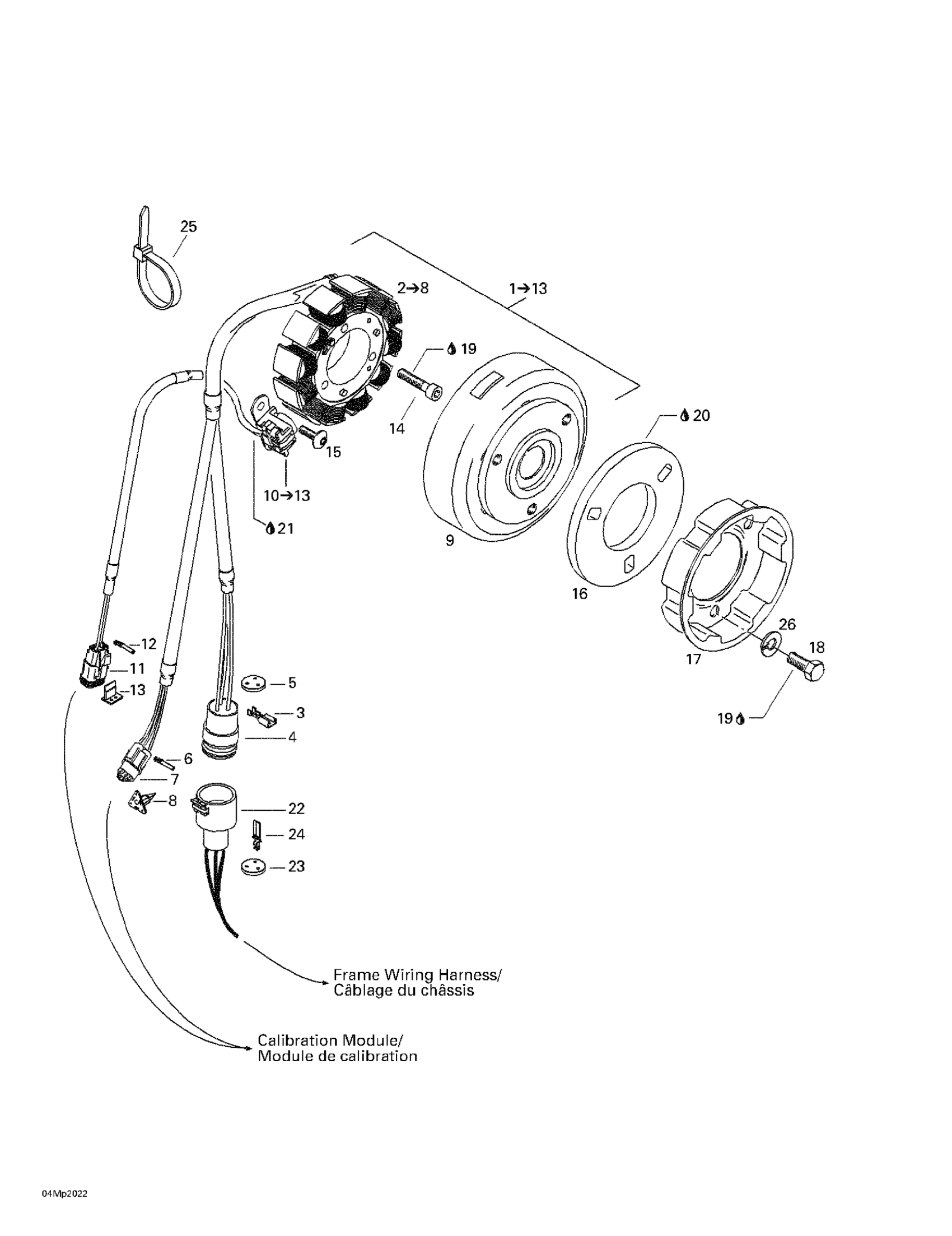

Ski-Doo MX Z 800, 2000 Magneto (12V, 290W) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

STATOR PLATE ASS'Y - Call your local BRP dealership | Formula Deluxe 700.

410922923

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

5

SEAL - Call your local BRP dealership

409208500

Unavailable

6

Female Terminal

278000632

Unavailable

7

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

8

Female Lock

409207200

$3.48

9

Flywheel | Formula Deluxe 700.

410922924

Unavailable

10

Pickup Ass'y

410922925

Unavailable

11

Female Connector, 2 Circuits

409207300

$9.60

12

Female Terminal

278000632

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Flywheel

420866752

Unavailable

17

Starting Pulley | Formula Deluxe 700.

420852411

Unavailable

18

Hex. Screw M8 X 20

207182044

$0.61

19

Loctite 243, 10 ml

293800060

$20.77

20

Sealant Loctite 648

219703000

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

23

SEAL - Call your local BRP dealership

409208500

Unavailable

24

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

25

Tie Wrap 94 mm | 4X4

293750001

$0.83

26

Washer-Lock Din.128

420945832

Unavailable
