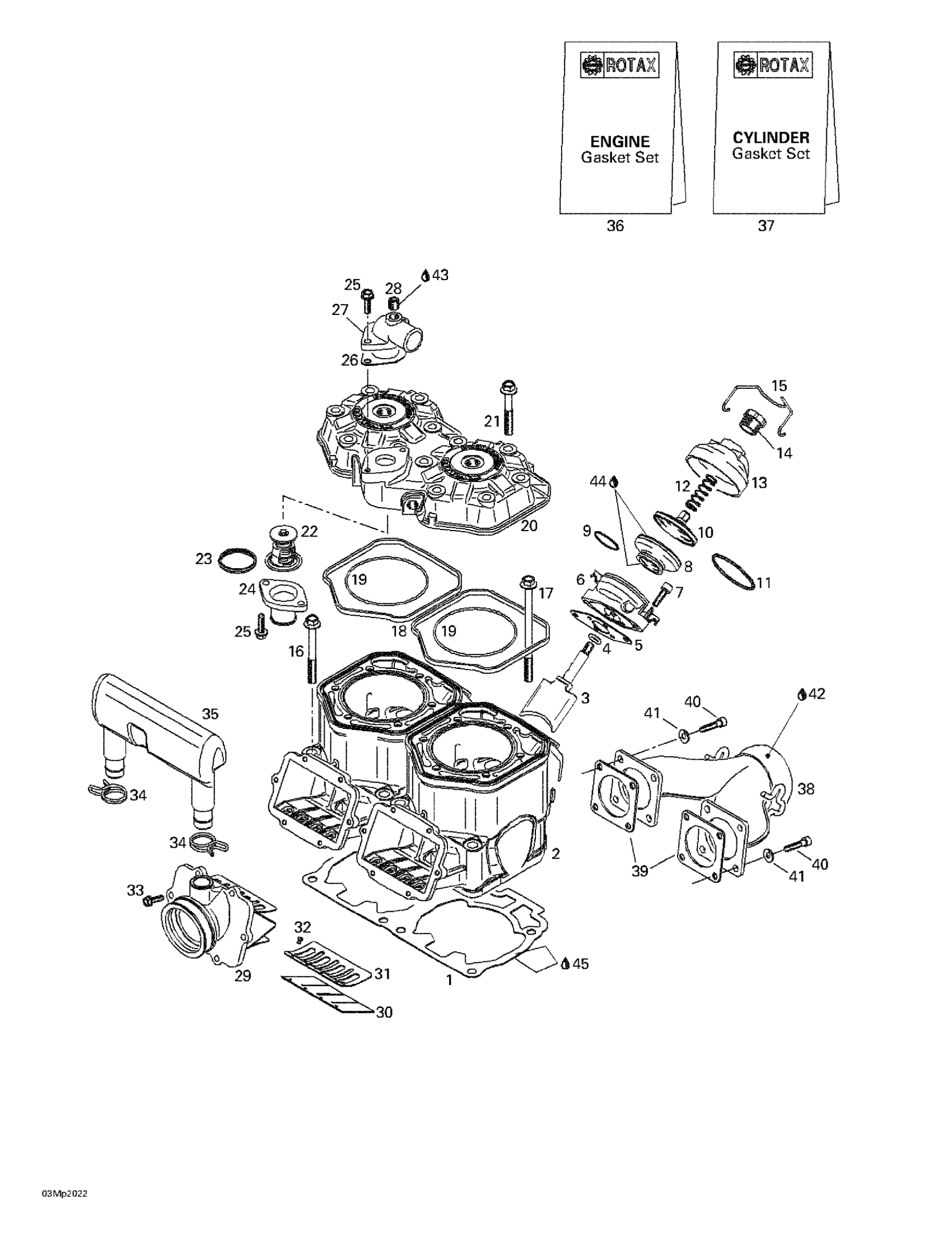

Ski-Doo MX Z 800, 2000 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

2

Nicasil Cylinder

420923810

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$3.61

5

Gasket

420931542

$6.62

6

Valve Housing | Grand Touring 800.

420854450

Unavailable

7

Socket Head Screw M6 X 25

205062544

$0.88

8

Bellows

420260729

$37.66

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

Unavailable

12

Spring This part replaces 420239944.

420239954

Unavailable

13

Valve Cover This part replaces 420911558.

420911559

$24.02

14

Adjuster Screw

420241221

Unavailable

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Collar Screw

420640524

$11.52

17

Hex. Collar Screw

420640534

$13.58

18

Rubber Ring

420931590

$5.69

19

O-Ring | Included in gasket kit

420931410

Unavailable

20

Cylinder Head (Silver)

420923820

Unavailable

21

Hex. Screw M8 X 56.5

420941627

$8.34

22

Thermostat This part replaces 414834100.

420922519

Unavailable

23

SEALING RING - Call your local BRP dealership

420931270

Unavailable

24

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

25

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

26

Gasket

420850338

$10.28

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

29

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

Unavailable

30

Reed Pedal

420924680

$37.66

31

Reed Pedal Stop

420924695

$13.58

32

Phillips Screw M3 X 5

420941215

$1.42

33

Taptite Screw M5 X 16

420941928

Unavailable

34

CLAMP - Call your local BRP dealership

420851440

Unavailable

35

Intake Resonator

420867817

Unavailable

36

Gasket Engine Kit

420888741

Unavailable

37

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

38

EXHAUST MANIFOLD - Call your local BRP dealership | Grand Touring 800.

420973710

Unavailable

39

Gasket

420931850

Unavailable

40

Socket Head Screw M6 X 25

205062544

$0.88

41

Lock Washer M6, Black

234161471

$0.52

42

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Dow Corning 111, 150 g

413707000

$57.82

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable
