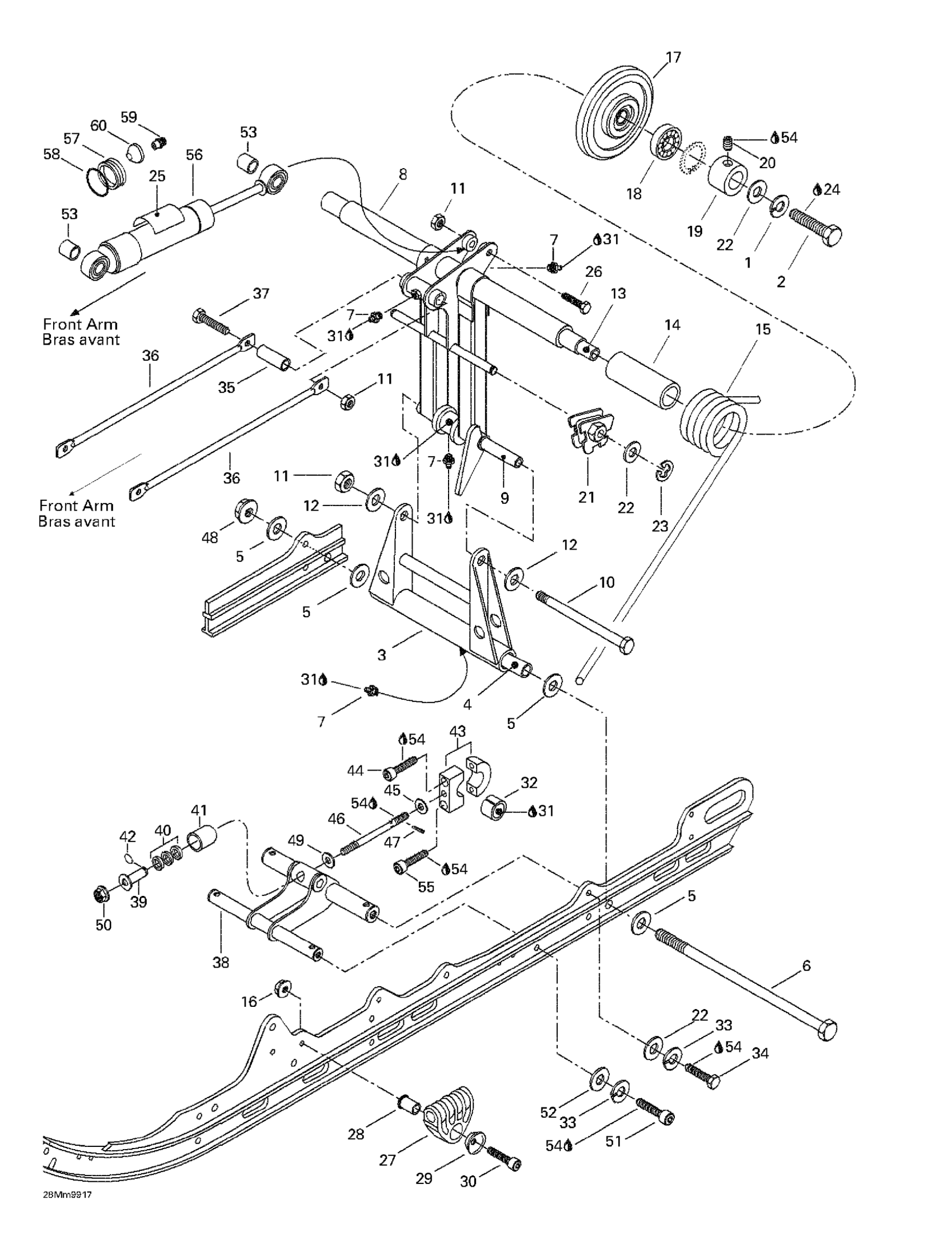

Ski-Doo MX Z 700, 1999 Rear Arm, Rear Suspension Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503186100
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
15
RH Spring
503188100
Unavailable
LH Spring
503188200
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
18
Ball Bearing
293350115
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
25
Shock Decal
516000183
Unavailable
26
Hex. Screw M8 X 50
207085044
Unavailable
27
Spring Support
503189657
Unavailable
28
Spring Guide Axle
503188934
Unavailable
29
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
30
Socket Head Screw M8 X 45
205084544
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
33
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
34
Hex. Screw M10 X 30
207103044
Unavailable
35
Tie Rod Shaft
503158600
Unavailable
36
Tie Rod
503187100
Unavailable
37
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
38
Bracket
503188969
Unavailable
39
Bushing
503172900
Unavailable
40
RUBBER STOPPER - Call your local BRP dealership
570049600
Unavailable
41
Cup
503103600
Unavailable
42
Circlip
371910700
Unavailable
43
Pivot Block Ass'y | Includes 45 - 49.
503189044
Unavailable
44
Socket Head Screw M8 X 30
205083044
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Rolled Pin M3 x 18
732804011
Unavailable
48
Hex. Flange Elastic Nut M8
233281414
Unavailable
49
WASHER - Call your local BRP dealership
503183400
Unavailable
51
Socket Screw M10 X 35
205003544
Unavailable
52
Hardened Washer 10 mm
503176700
Unavailable
53
Bushing
414936000
Unavailable
54
Loctite 271, 10 ml
293800005
Unavailable
55
Socket Head Screw M8 X 30
205083044
Unavailable
56
Rear Shock
503188912
Unavailable
57
Free Piston
415097900
Unavailable
60
Air Valve Cap
415127405
Unavailable
