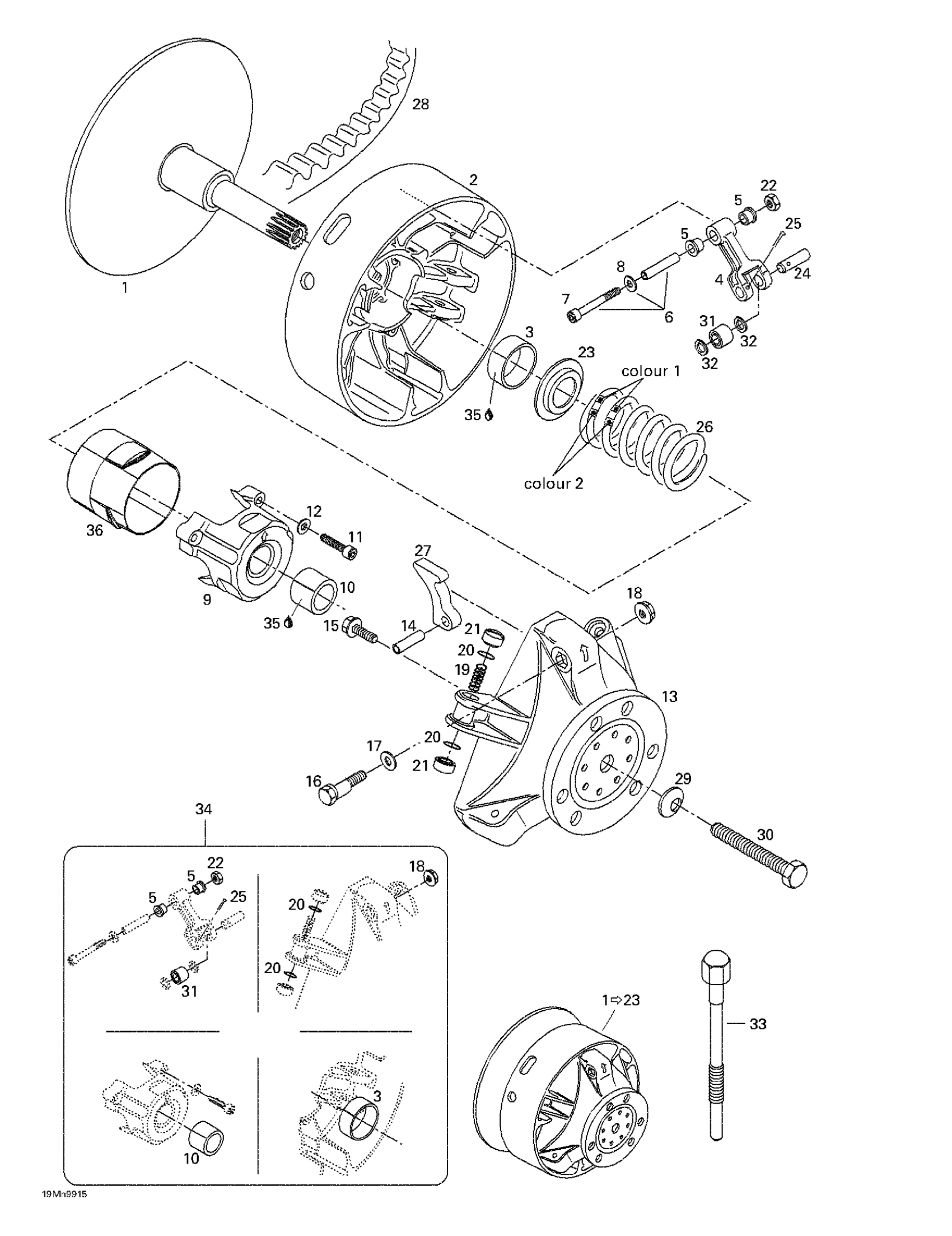

Ski-Doo MX Z 700, 1999 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500 LC. Formula Deluxe 670.
417222154
Unavailable
1
Fixed Flange
417222411
Unavailable
2
OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.
417222049
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
8
Flat Washer 6 mm
234061410
Unavailable
9
Spring Cover Ass'y | Includes 9 - 10.
417222157
Unavailable
10
Bushing
417004501
Unavailable
11
Allen Screw M6 x 40
222964066
Unavailable
12
WASHER - Call your local BRP dealership
420245370
Unavailable
13
Gouvernor Cup Ass'y
417004700
Unavailable
14
Pin M8 X 24
732804009
Unavailable
15
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership
210361890
Unavailable
16
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
18
Hex. Flange Nut M6
233061414
Unavailable
19
Spring
417005700
Unavailable
22
Elastic Stop Nut M6
232561414
Unavailable
23
Spring Seat
417222044
Unavailable
24
Pin
417004308
Unavailable
27
Ramp 297 | Formula Z 700.
417005297
Unavailable
28
Drive Belt | Formula Deluxe 700.
417300067
Unavailable
29
Spring Washer 14 mm
250200006
Unavailable
33
Puller This part replaces 529022400.
529000064
Unavailable
34
Clutch Repair Kit
417006100
Unavailable
36
Guard
417222176
Unavailable
