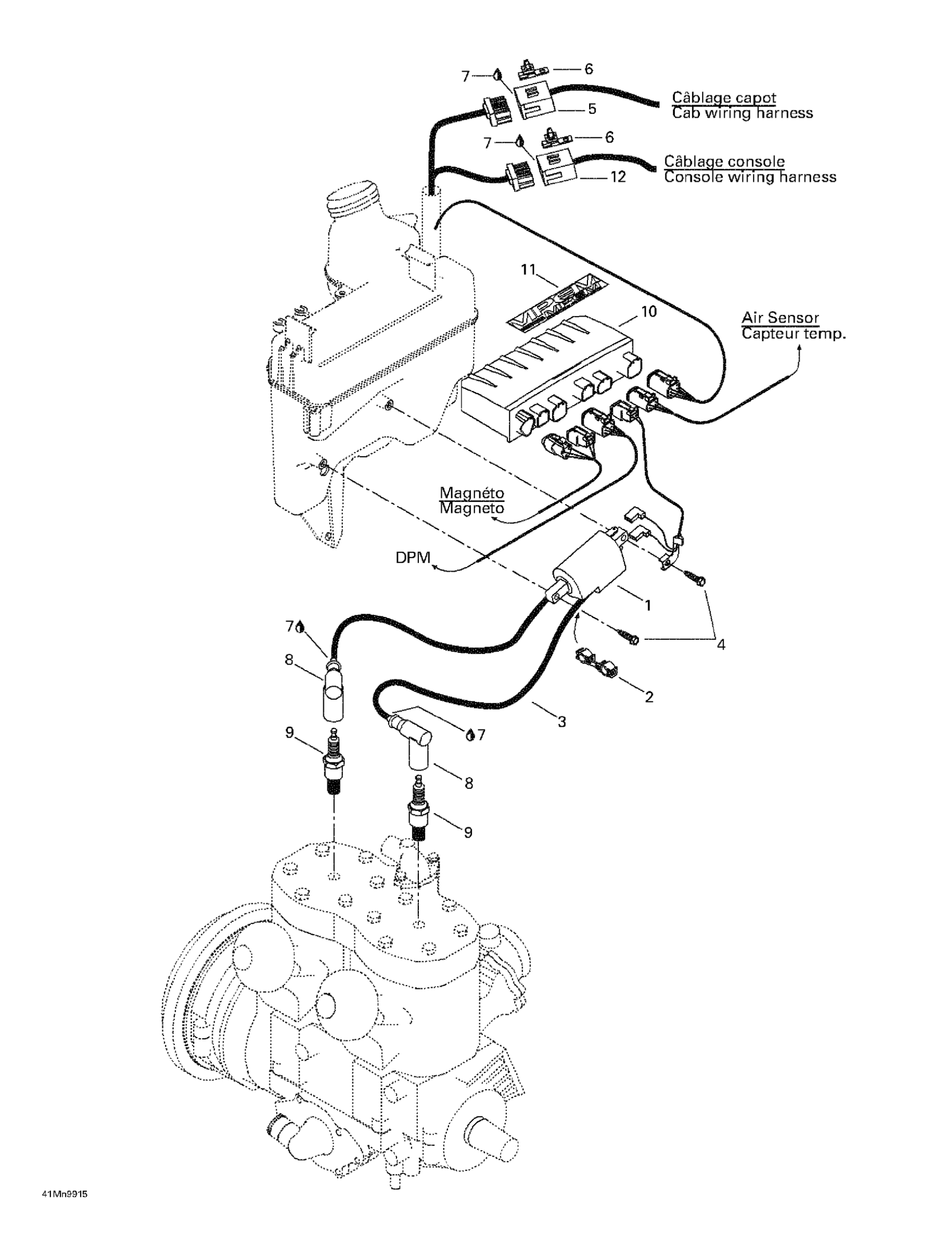

Ski-Doo MX Z 700, 1999 Ignition Diagram

#

Description
Price

1

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

2

Plastic Clip, Spark Plug Wire

410914600

Unavailable

3

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

4

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

5

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

6

Housing Support

515175283

$8.43

7

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

8

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

9

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

10

Calibration Module | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

515175383

Unavailable

11

Electrical Box Decal

516000245

Unavailable

12

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable
