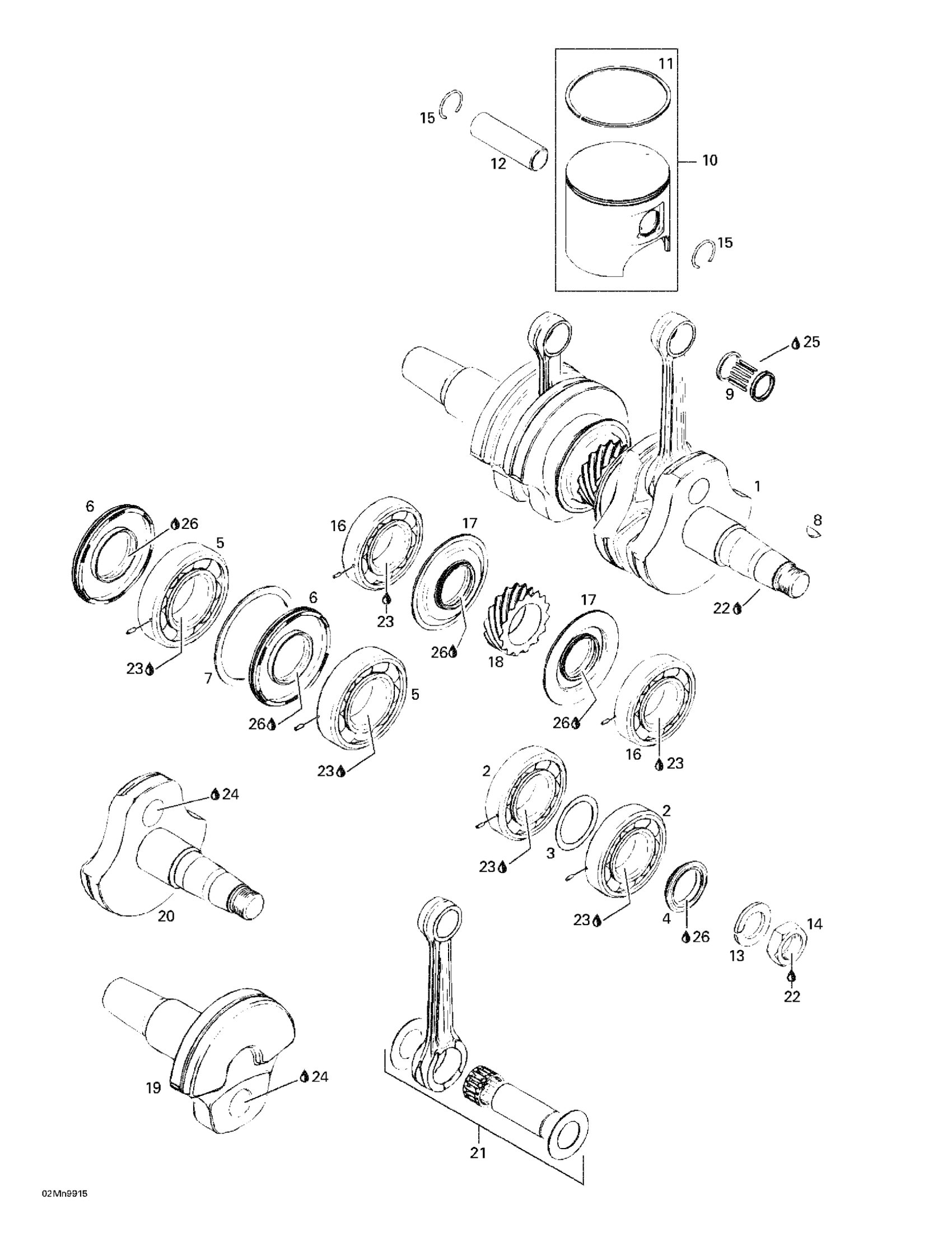

Ski-Doo MX Z 700, 1999 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 8. Formula Z 700.
420888280
Unavailable
2
Ball Bearing 6207 | With drive pin
420832575
Unavailable
3
ADJUSTMENT WASHER - Call your local BRP dealership
420427502
Unavailable
6
Oil Seal
420931280
Unavailable
7
Washer
420926190
Unavailable
8
Woodruff Key
420246015
Unavailable
9
Needle Bearing
420832445
Unavailable
10
Piston Ass'y (1 Ring 77.93 mm) | Includes 10 - 11.
420888290
Unavailable
11
Semi-Trapez Ring 78.00 mm
420815220
Unavailable
12
GUDGEON PIN - Call your local BRP dealership
420916371
Unavailable
13
Lock Washer, 22 mm
420945759
Unavailable
14
Hex. Nut, M22 X 1.5
420842239
Unavailable
15
PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.
420845102
Unavailable
16
Ball Bearing 6207 | With drive pin
420832575
Unavailable
17
OIL SEAL - Call your local BRP dealership | Summit 700 (CDN).
420931450
Unavailable
18
CENTRAL GEAR - Call your local BRP dealership
420834355
Unavailable
19
Crankshaft (PTO side) | Formula Deluxe 700.
420818706
Unavailable
20
Crankshaft (MAG side) | Formula Deluxe 700.
420818736
Unavailable
21
Rod Repair Kit (MAG side) | Formula Deluxe 700.
420888283
Unavailable
Rod Repair Kit (PTO side) | Formula Deluxe 700.
420888284
Unavailable
23
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
24
Sealant Loctite 648
219703000
Unavailable
26
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
