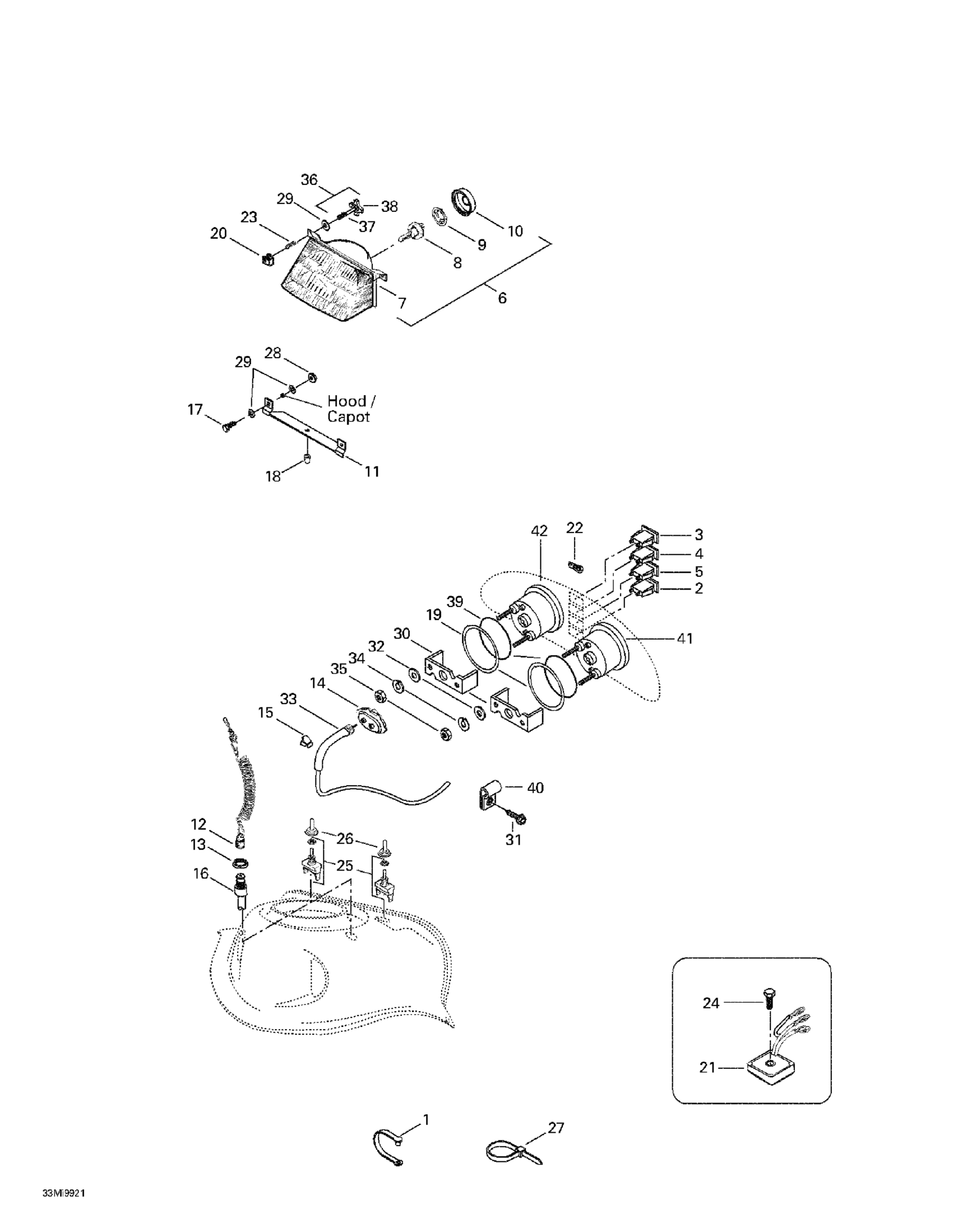

Ski-Doo MX Z 670 HO T.H., 1999 Electrical System Diagram
#
Description
Price
2
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
3
Pilot Lamp (Red)
410109500
Unavailable
4
Pilot Lamp (Blue)
410109600
Unavailable
5
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
6
Headlamp | Includes 42 to 45
410609100
Unavailable
7
Headlamp | Includes 53 to 56
410609300
Unavailable
8
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
10
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
11
Headlamp Support
517218500
Unavailable
12
DESS
515178284
Unavailable
14
Drive Angle | Formula S.
572022300
Unavailable
16
TERMINAL ASSY - Call your local BRP dealership | SUV 600
515166800
Unavailable
17
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
19
Washer
517258500
Unavailable
20
Projector Nut
572078600
Unavailable
21
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
22
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
23
Spring
517168600
Unavailable
24
Hex. Screw M6 x 35
732600016
Unavailable
28
Hex. Flange Elastic Nut M5
233251414
Unavailable
29
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
30
Case Holder
414806500
Unavailable
31
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
33
Speedometer Cable
414761400
Unavailable
34
Lock Washer
414806700
Unavailable
35
Nut
414806900
Unavailable
36
Adjuster Screw Ass'y | Includes 44 - 46.
415100700
Unavailable
37
Screw M4 x 40
732603004
Unavailable
38
Handle
572106600
Unavailable
39
O-Ring
414807100
Unavailable
41
Speedometer (MH)
415096400
Unavailable
42
Tachometer
415096500
Unavailable
