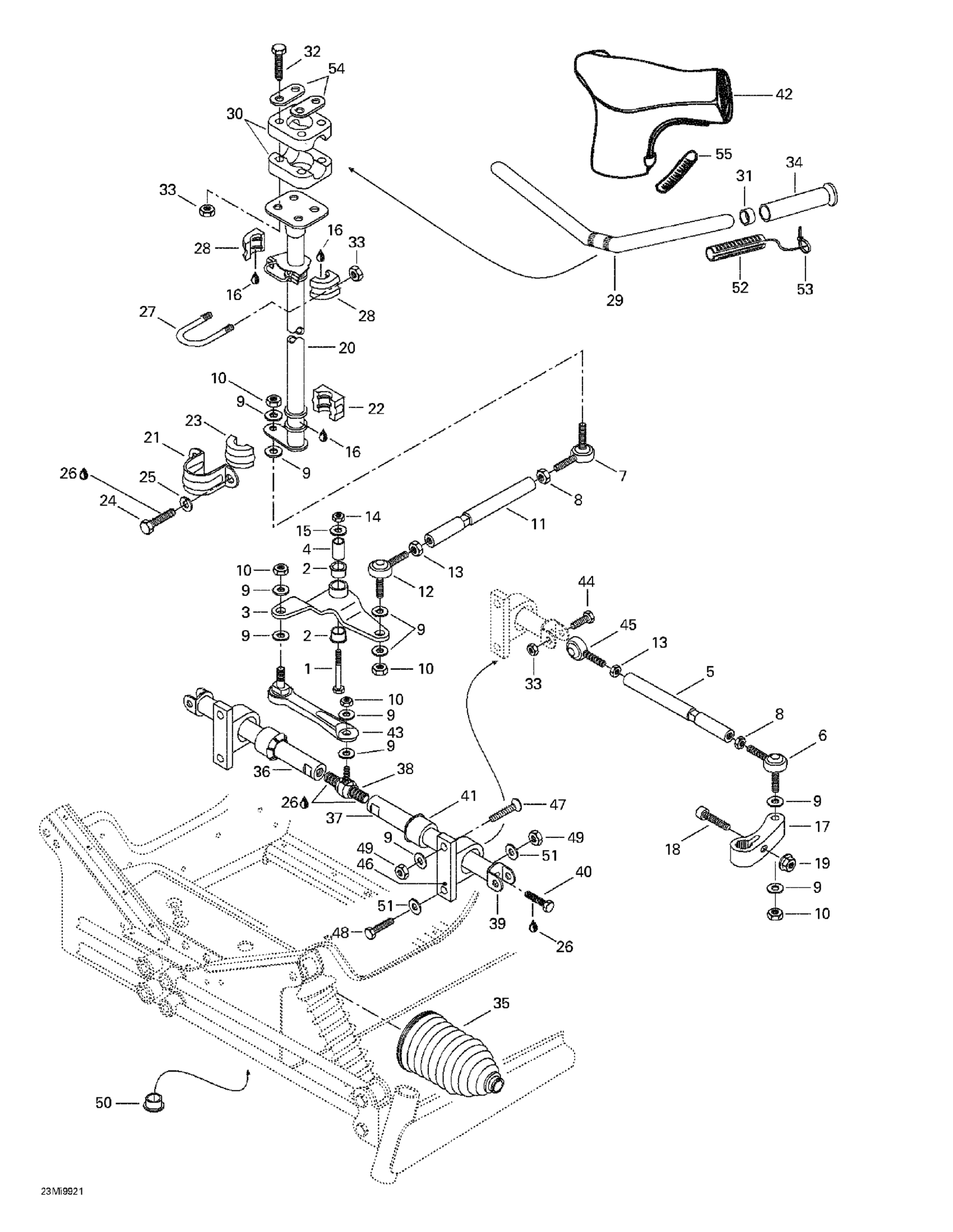

Ski-Doo MX Z 670 HO T.H., 1999 Steering System Diagram

#

Description
Price

1

Hex. Screw M12 x 65

207026544

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

Pivot Arm

506145700

Unavailable

4

Pivot

415038000

Unavailable

5

Tie-Rod

506140400

Unavailable

6

Ball Joint

506151491

Unavailable

7

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

9

Washer

503175800

$3.26

10

Elastic Flange Nut M10

232501416

Unavailable

11

Tie-Rod

506146100

Unavailable

12

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

13

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

15

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

18

Allen Screw M8 x 35

222983565

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Main Tube

506151127

Unavailable

21

Retainer Support

517126200

Unavailable

22

Bushing

572064400

Unavailable

23

BUSHING - Call your local BRP dealership

572064500

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.61

25

Lock Washer 8 mm

234181401

Unavailable

26

Loctite 271, 10 ml

293800005

Unavailable

27

U-clamp | X

506060600

Unavailable

28

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

29

Handlebar

506125900

Unavailable

30

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

31

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

32

Hex. Screw M8 X 55

207085544

$1.62

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

RH Grip 6-1/2"

506151530

Unavailable

35

TIE-ROD CAP - Call your local BRP dealership

570068300

Unavailable

36

Sliding Bar (Short)

506139500

Unavailable

37

Sliding Bar (Long)

506139600

Unavailable

38

Ball Joint (Double)

415053300

Unavailable

39

Bracket

506138300

Unavailable

40

Hex. Screw M10 X 25

207102544

Unavailable

41

Cushion

572108500

Unavailable

42

Steering Padding

572084100

Unavailable

43

Ball Joint Lever

415063700

Unavailable

44

Hex. Screw M8 X 40

207084044

Unavailable

45

LH Ball Joint

415048600

Unavailable

46

Sliding Bar Guide

506148800

Unavailable

47

Socket Head Screw M10 x 70

222907065

Unavailable

48

Hex. Screw M10 x 75

207007544

Unavailable

49

Elastic Locking Nut M10 X 1.5

233601416

$1.68

50

Cap

415067700

Unavailable

51

Flat Washer 10 mm

234001410

Unavailable

52

Heating Grip

515175573

Unavailable

53

Tie-Rap 180 mm

414115200

$0.09

54

Stiffner

709400509

Unavailable

55

Key Way

572072400

Unavailable
