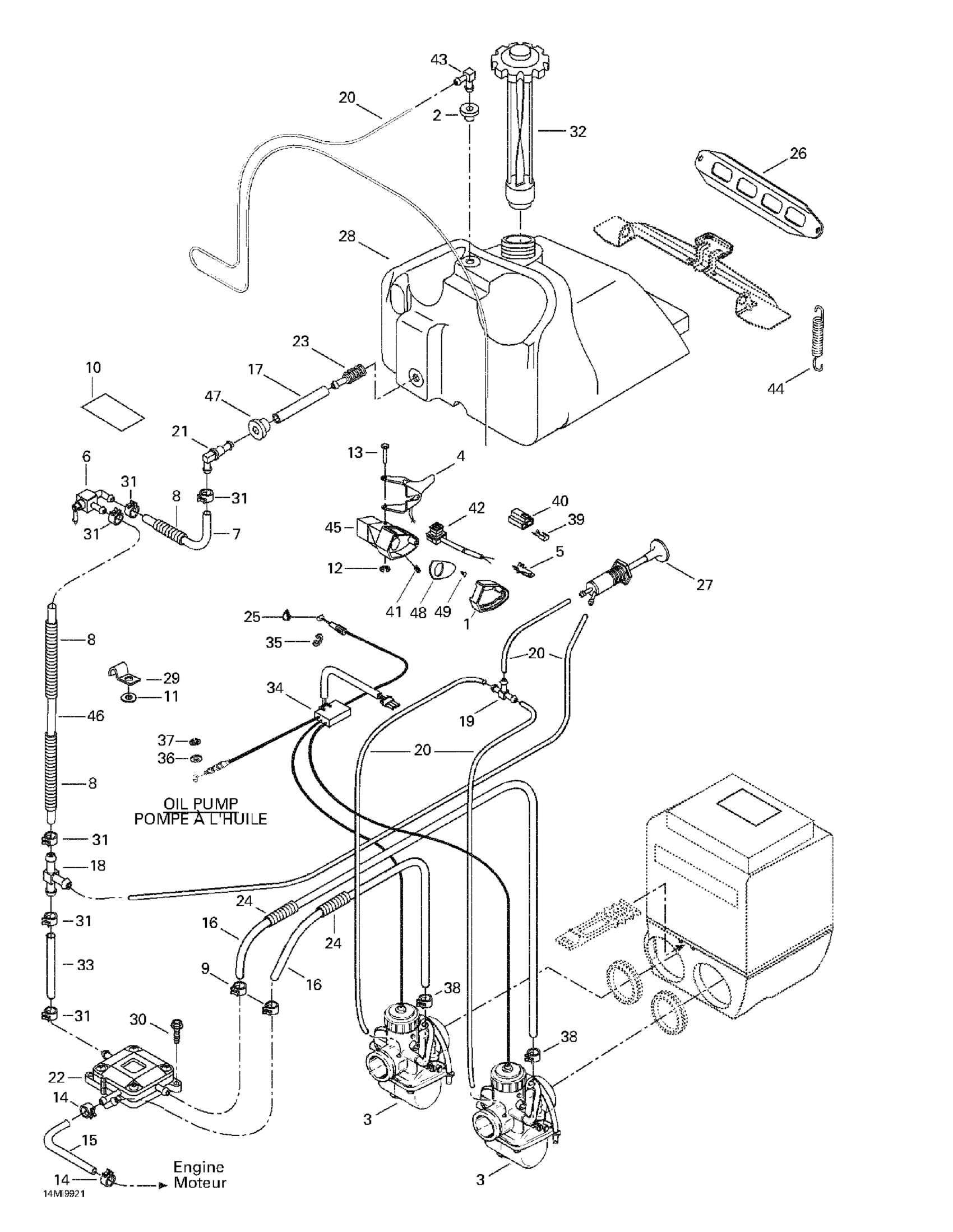

Ski-Doo MX Z 670 HO T.H., 1999 Fuel System Diagram

#

Description
Price

1

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

2

Grommet

709200285

$7.09

3

Carburetor VM44-36 (PTO) | MX Z 670 HO.

403138559

Unavailable

Carburetor VM44-37 (MAG) | MX Z 670 HO.

403138560

Unavailable

4

Heat Throttle Handle Ass'y (44 mm) | MX Z 670 HO.

572109400

Unavailable

5

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

6

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

7

Formed Hose | MX Z 670 HO.

415062400

Unavailable

8

Tubing 16 Mm 1000Mm Long

219704408

$6.23

9

Spring Clamp

414554800

$0.83

10

Security Label | MX Z 670 HO.

414931500

Unavailable

11

Flat Washer

224061121

$0.44

12

Circlip | Model-RS

414439000

$4.14

13

Lever Pin

414438700

$11.14

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

$47.66

16

Polyurethane Hose 10000Mm Long

219704410

$46.12

17

Hose

415005700

$5.49

18

T-Fitting

415119300

$3.11

19

T-Fitting

414222400

$1.33

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

21

Male Connector | MX Z 670 HO.

572078200

Unavailable

22

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Tubing 10 MM 1000MM Long

219704407

$2.20

25

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$33.05

28

Fuel Tank | MX Z 500.

572110700

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Spring Clamp

414655700

$0.68

32

Fuel Tank Cap | MX Z 670 HO.

513032905

Unavailable

33

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

34

Throttle Cable and Housing (44 mm) | MX Z 670 HO.

415108900

Unavailable

35

Circlip

414274500

$0.74

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Spring Clamp

414420700

$0.68

39

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

Socket Set Screw M8 X 10

414440800

$4.00

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

43

Male Connector

414814100

$2.18

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Housing

512060603

$10.57

46

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

47

Grommet | Europe

707800347

$7.58

48

Plate

512060390

$9.31

49

Screw

414473200

Unavailable
