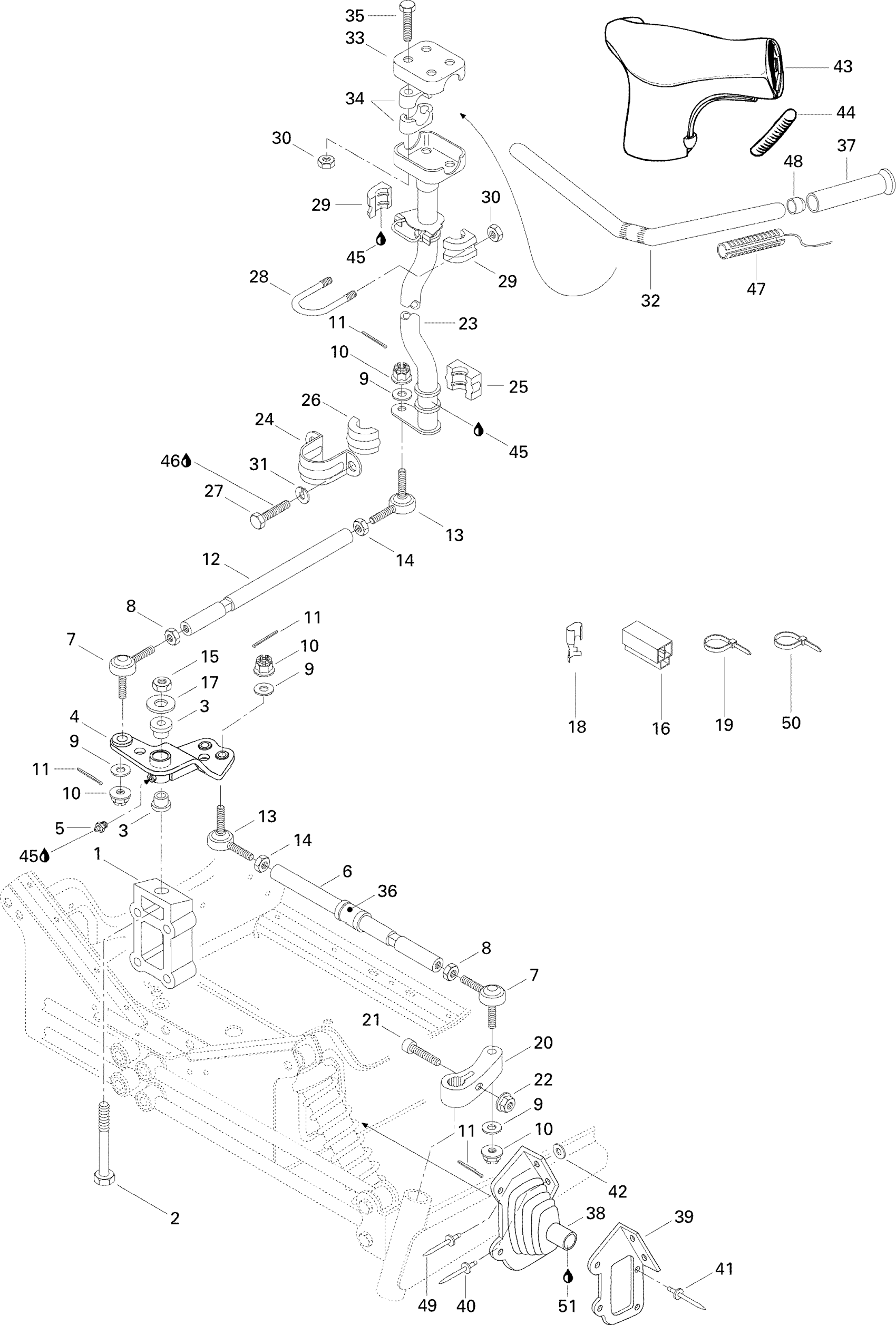

Ski-Doo MX Z 670, 1996 Steering System Diagram

#

Description
Price

1

Block

506121400

Unavailable

2

Screw M12 x 85

222028565

Unavailable

3

Cushion

414794700

Unavailable

4

Pivot Arm

506133000

Unavailable

5

Grease Fitting

408200700

Unavailable

6

Tie Rod

506130200

Unavailable

7

RH BJoint

414799200

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

9

Flat Washer 10 mm

234001410

Unavailable

10

Hex. Castle Nut M10

228101045

Unavailable

11

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

12

Tie Rod

506110800

Unavailable

13

LH BJoint

414799300

Unavailable

14

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

16

Female Housing

409204300

Unavailable

17

Flat Washer 12 mm

234021410

$0.68

18

Female Terminal

561503100

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

RH Steering Arm

506125700

Unavailable

20

LH Steering Arm

506125800

Unavailable

21

Allen Screw M8 x 35

222983565

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Main Tube

506127500

Unavailable

24

Retainer Support

517126200

Unavailable

25

Bushing

572064400

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Hex. Screw M8 X 20

207182044

$0.61

28

U-clamp | X

506060600

Unavailable

29

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

Unavailable

31

Lock Washer 8 mm

234181401

Unavailable

32

Handlebar

506125900

Unavailable

33

Steering Clamp

506055400

Unavailable

34

Steering Support

709400919

Unavailable

35

Hex. Screw M8 X 55

207085544

$1.62

36

BUSHING - Call your local BRP dealership

572036500

Unavailable

37

RH Grip 6-1/2"

506151530

Unavailable

38

RH Tie Rod Cap

570024800

Unavailable

38

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

39

RH Cap Plate

517241200

Unavailable

39

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

40

Pop Rivet 3/16"

390906800

Unavailable

41

Pop Rivet 3/16"

390402200

$0.26

42

Washer

517124300

Unavailable

43

Steering Padding

572083000

Unavailable

44

Key Way

572072400

Unavailable

45

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

46

Loctite 271, 10 ml

293800005

Unavailable

47

Heating Grip

515175573

Unavailable

48

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

49

Pop Rivet 3/16"

293150100

$1.08

50

Tie-Rap 180 mm

414115200

$0.09

51

Grease, Super Lube

293550030

Unavailable
