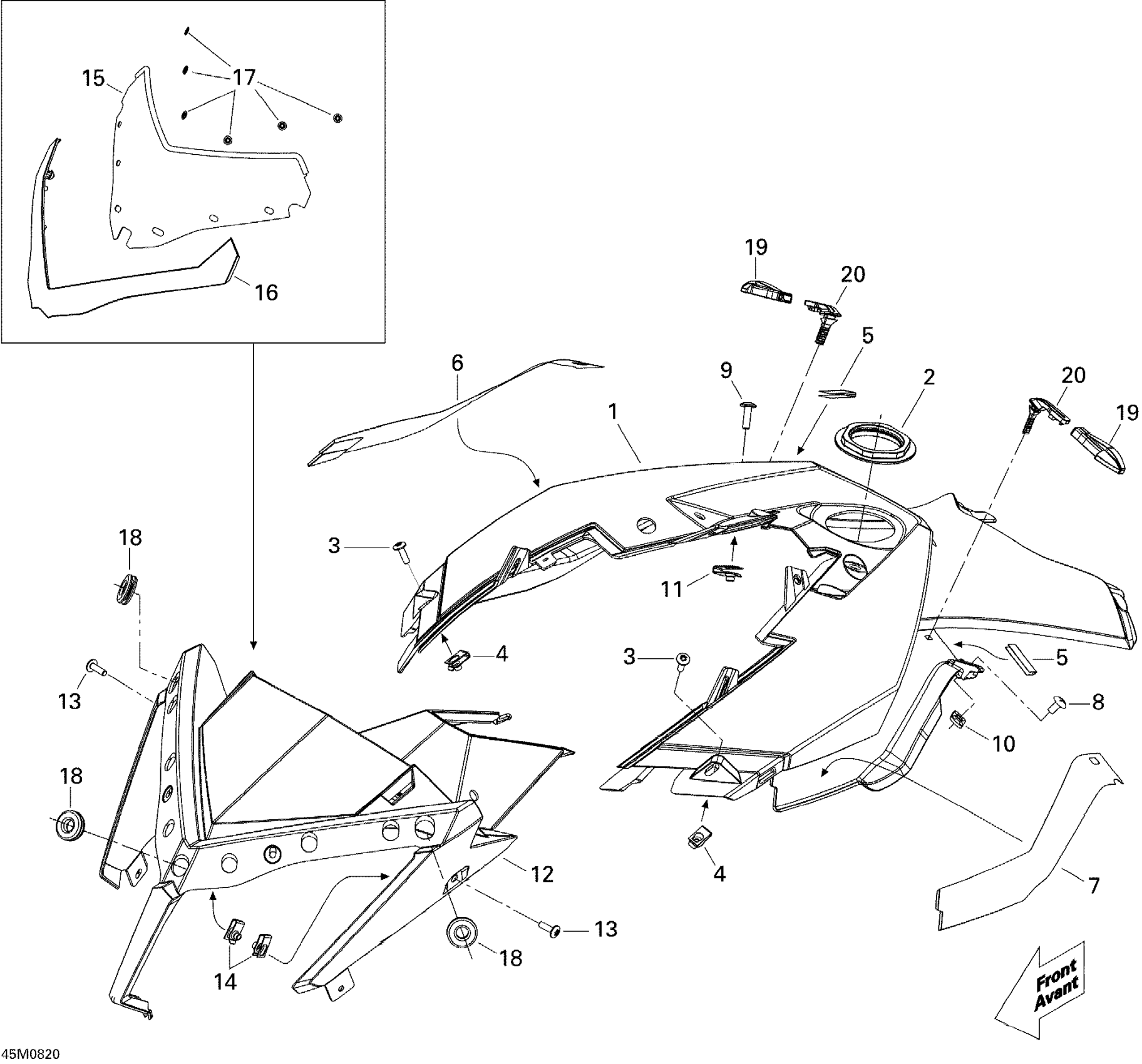

Ski-Doo MX Z 600RS, 2008 Windshield And Console Diagram

#

Description
Price

1

YELLOW CONSOLE - Call your local BRP dealership

517304127

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.54

4

Panel Nut M6 X 1.0

250100198

$1.99

5

Console Decal

517304105

$10.42

6

RH Decal

517304103

$16.39

7

LH Decal

517304104

$16.39

8

PHILLIPS SCREW M8 X 12 - Call your local BRP dealership

250000353

Unavailable

9

Torx Screw M6 X 20

250000722

$1.54

10

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

11

Panel Nut M6 X 1.0

250100198

$1.99

12

Gauge Support

517304575

$63.40

13

Torx Screw M6 X 20

250000722

$1.54

14

Panel Nut M6 X 1.0

250100198

$1.99

15

WINDSHIELD - Call your local BRP dealership

517303621

Unavailable

16

Windshield Support Kit

860200089

$23.85

17

Push Nut

732610072

$1.97

18

Grommet

517303756

$3.61

19

Embout Loquet *Latch This part replaces 517303980.

860200238

$17.88

20

Panel Latch

517303981

$9.49
