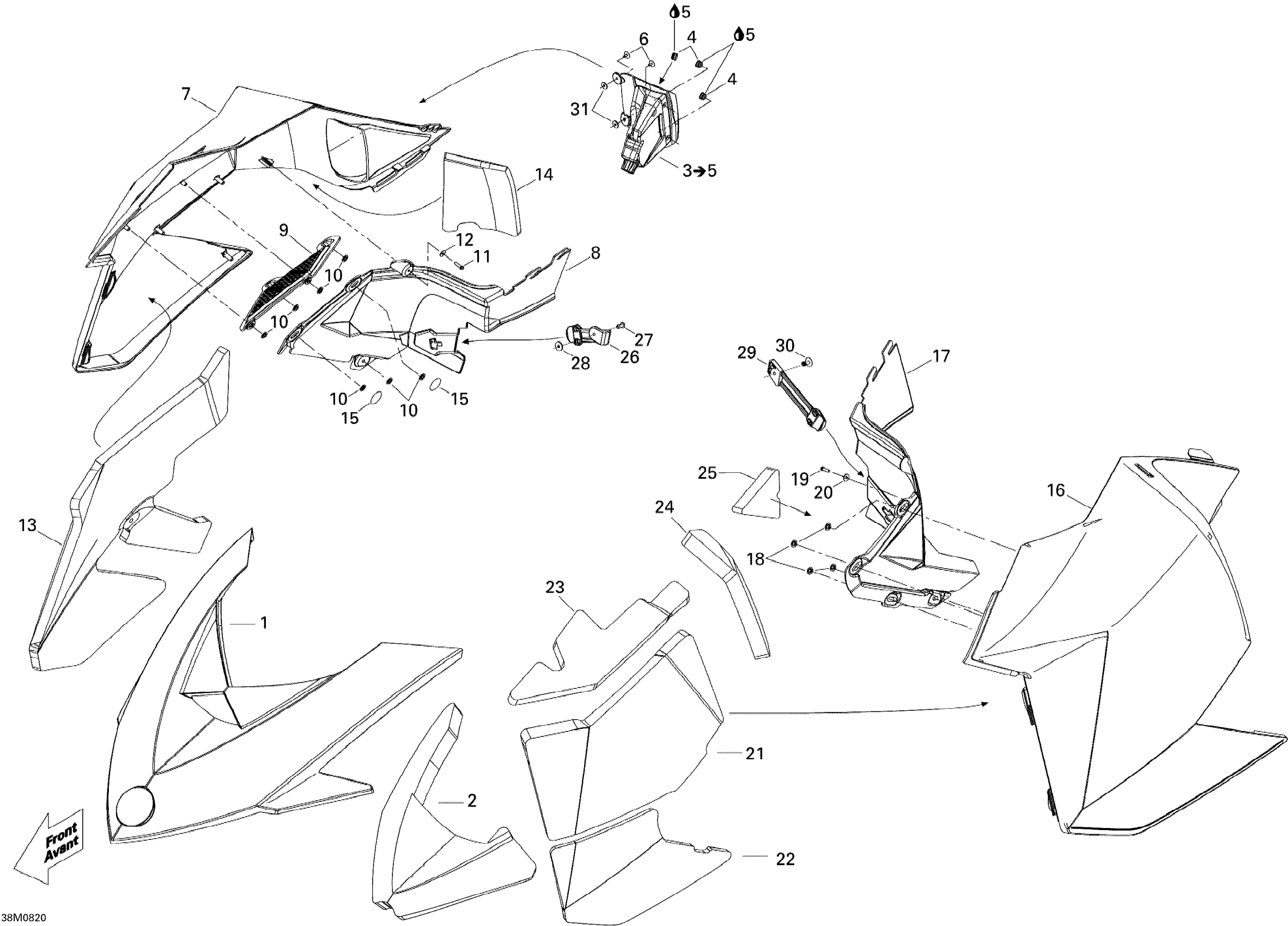

Ski-Doo MX Z 600RS, 2008 Hood Diagram
#
Description
Price
1
Yellow Hood
517304529
Unavailable
2
Hood Foam
517304913
Unavailable
3
Black, RH Console | Includes 400 to 400b
517304322
Unavailable
4
Black, Cap
275500241
Unavailable
6
Pop Rivet 5/32"
293150170
Unavailable
7
VOLCANO GREY RH PANEL - Call your local BRP dealership
517303937
Unavailable
8
Deep Black RH Moulding Panel
517303671
Unavailable
9
Grille
517303622
Unavailable
10
Push Nut
732610072
Unavailable
11
Hex. Flange Screw K40 X 16
241141660
Unavailable
12
Flat Washer 4 mm, Stainless
234042600
Unavailable
13
RH Center Foam
517304883
Unavailable
14
RH Panel Rear Foam
517304884
Unavailable
15
Adhesive Patch
518325560
Unavailable
16
PANEL_BODY LH B-281 - Call your local BRP dealership
517303934
Unavailable
17
Deep Black, LH Moulding Panel
517303673
Unavailable
18
Push Nut
732610072
Unavailable
19
Hex. Flange Screw K40 X 16
241141660
Unavailable
20
Flat Washer 4 mm, Stainless
234042600
Unavailable
21
LH Panel Center Foam
517304887
Unavailable
22
LH Panel Lower Foam
517304888
Unavailable
23
LH Panel Upper Foam
517304889
Unavailable
24
LH Panel Rear Foam
517304890
Unavailable
25
Foam
517304891
Unavailable
26
RH Panel Latch
517303612
Unavailable
27
Pop Rivet 3/16"
390402300
Unavailable
28
Washer
517124300
Unavailable
29
LH Panel Latch
517303808
Unavailable
31
Flat Washer
391303100
Unavailable
