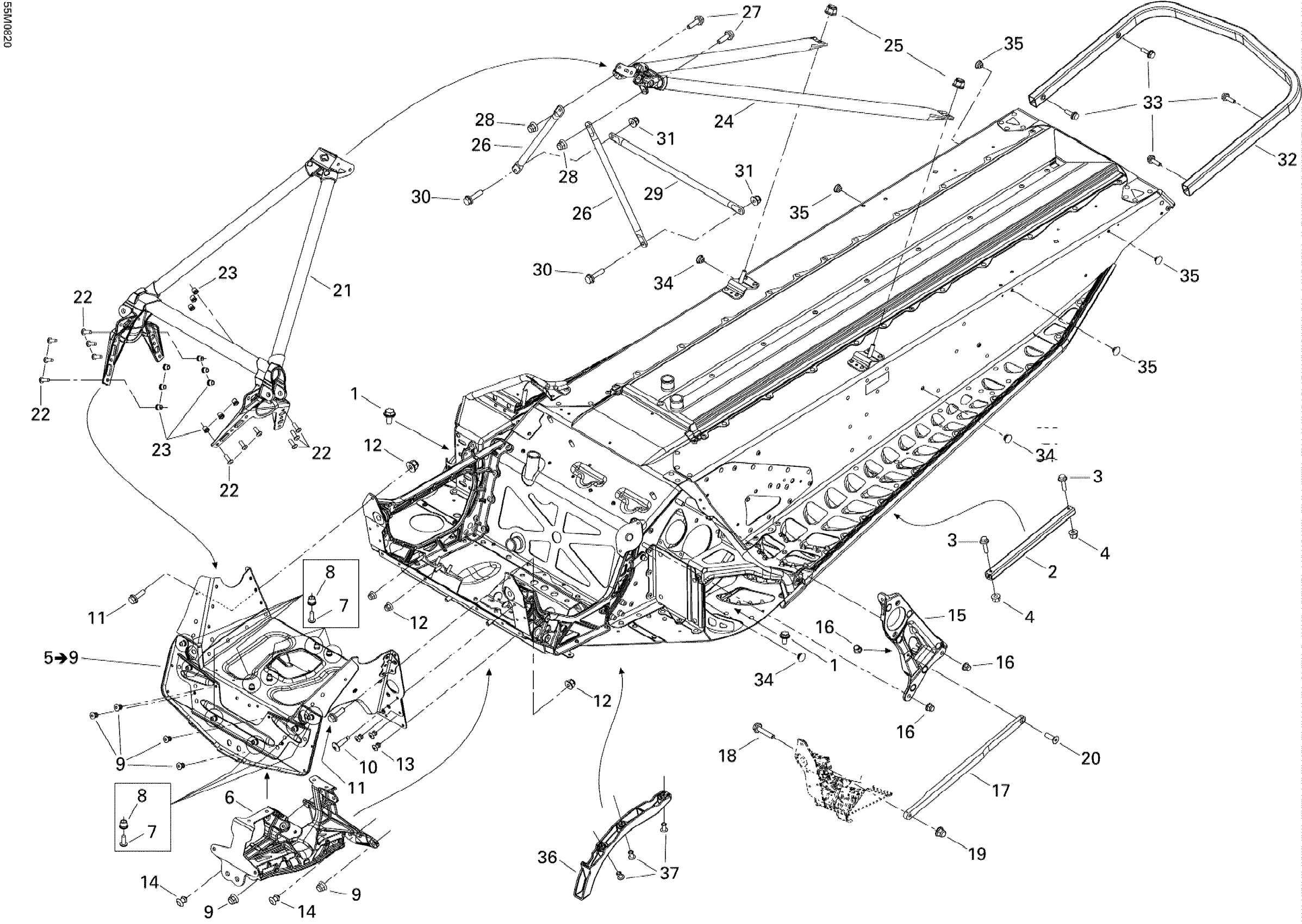

Ski-Doo MX Z 600RS, 2008 Frame and Components Diagram
#
Description
Price
1
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
2
REINFORCEMENT LINK - Call your local BRP dealership
518325790
Unavailable
4
Hex. Flange Elastic Nut M5
233251414
Unavailable
6
Front Suspension Support
518327487
Unavailable
7
Hex. Flange Screw M6 X 20
207662044
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Stavex Rivet
293150144
Unavailable
11
Hex. Flange Screw M6 X 20
207662044
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Stavex Rivet
293150144
Unavailable
14
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
15
Pulley Support
518328346
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Link
518325795
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Hex. Flange Screw M6 X 20
207662044
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
24
Rear Member
518326559
Unavailable
25
Hex. Flange Elastic Nut M8
233281414
Unavailable
26
Upper Lateral Column Support
518325114
Unavailable
27
Hex. Flange Screw M6 X 20
207662044
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Center Column Support
518325115
Unavailable
30
Hex. Flange Screw M6 X 25
207662544
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Clear Rear Bumper
518324980
Unavailable
33
Hex. Flange Screw M6 X 20
207662044
Unavailable
35
Full Moon Dart 5 mm
293730042
Unavailable
36
Front Tunnel Protector | Includes 1700 to 1700a
518326973
Unavailable
38
Hex. Flange Elastic Nut M8
233281414
Unavailable
