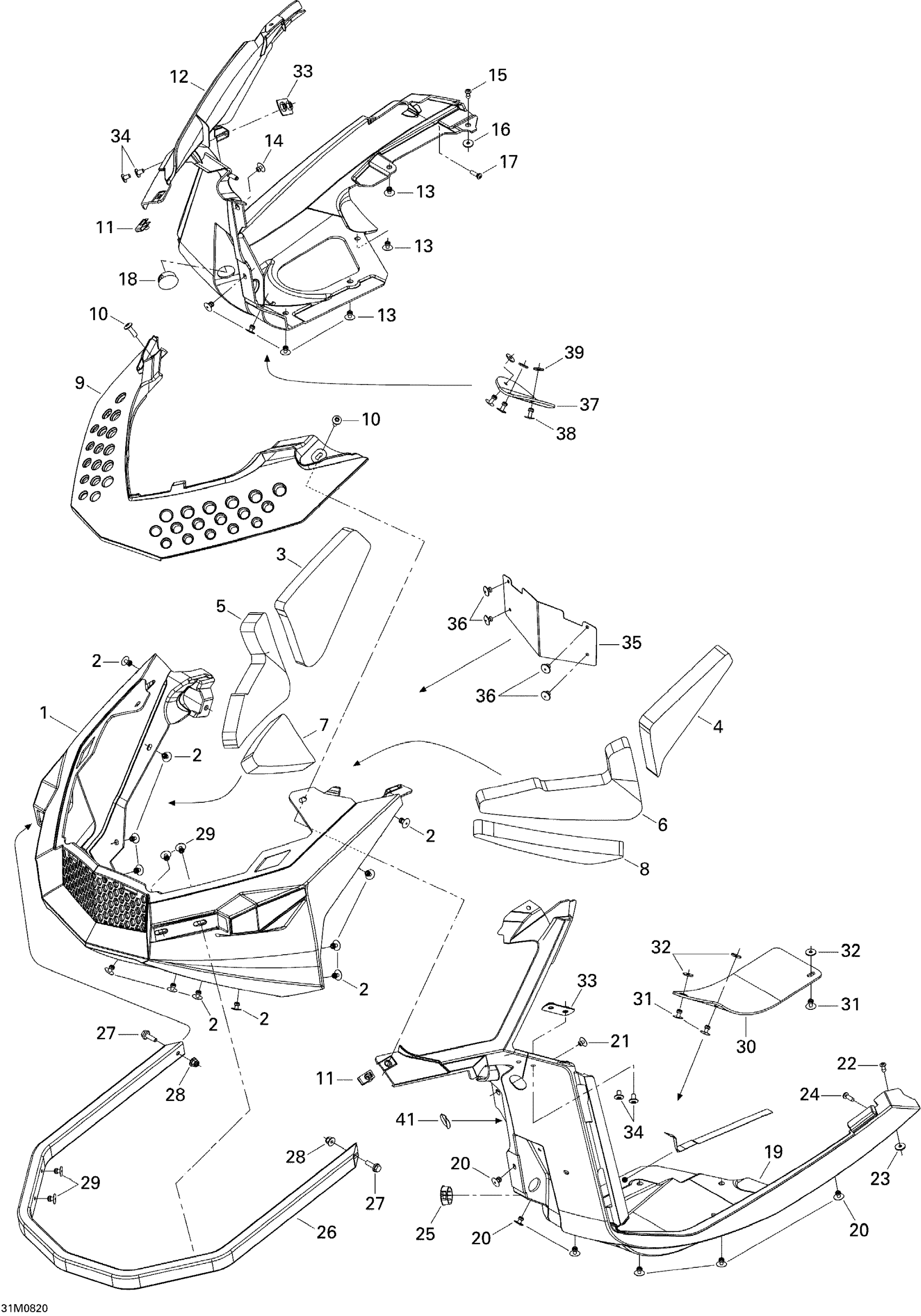

Ski-Doo MX Z 600RS, 2008 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502006971

$106.12

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3

RH Foam Upper

502007210

$13.85

4

LH Foam Upper

502007211

$15.03

5

RH Middle Foam

502007212

$18.43

6

LH Middle Foam

502007213

$18.43

7

RH Lower Foam

502007214

$13.85

8

LH Lower Foam

502007215

$13.85

9

Deep Black Bottom Pan Cap

502007068

$65.35

10

Torx Screw M6 X 20

250000722

Unavailable

11

Panel Nut M6 X 1.0

250100198

Unavailable

12

Black, RH Bottom Pan

502006831

$72.28

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

14

Pop Rivet 3/16"

293150103

Unavailable

15

Pop Rivet 3/16"

390402300

Unavailable

16

Washer

517124300

Unavailable

17

Torx Screw K50 X 16

250000720

$1.39

18

Black, Nylon Cap

414916600

$4.32

19

Deep Black LH Bottom Pan

502006832

$52.28

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

21

Pop Rivet 3/16"

293150103

Unavailable

22

Pop Rivet 3/16"

390402300

Unavailable

23

Washer

517124300

Unavailable

24

Torx Screw K50 X 16

250000720

$1.39

25

Black, Nylon Cap

414916600

$4.32

26

Black Front Bumper

502007116

$76.89

27

Hex. Flange Screw M6 X 20

207662044

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

30

GUARD PLATE - Call your local BRP dealership

502006888

$35.35

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

32

Washer

517124300

Unavailable

33

Plate

502006949

Unavailable

34

Torx-truss M/s M6 X 10

250000995

Unavailable

35

PAN BOTTOM PLATE - Call your local BRP dealership

502006933

$11.17

36

Pop Rivet 3/16"

293150103

Unavailable

37

Snow Deflector

502006935

Unavailable

38

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

39

Washer

517124300

Unavailable

40

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

41

Adhesive Patch

518325560

Unavailable
