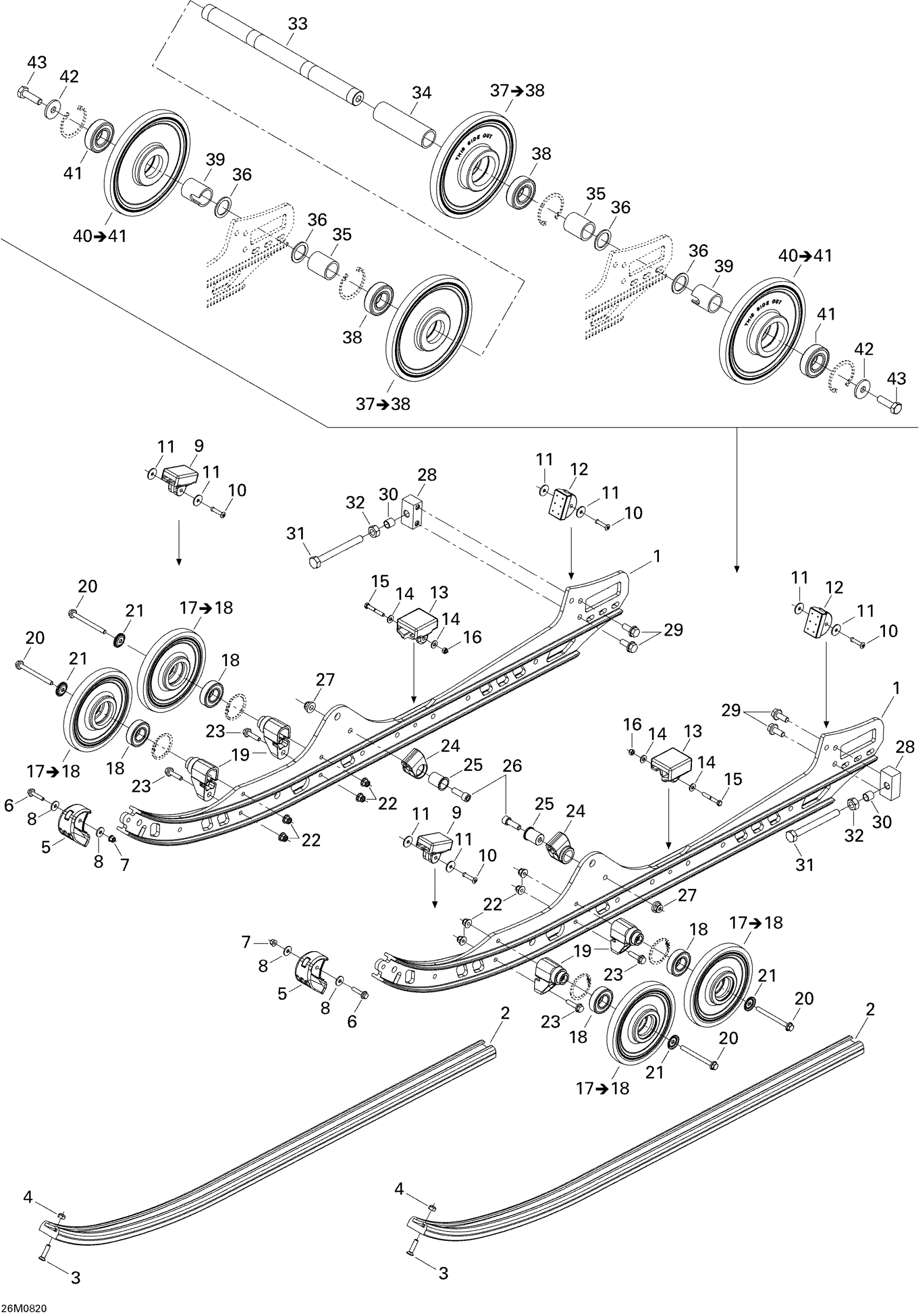

Ski-Doo MX Z 600RS, 2008 Rear Suspension Diagram

#

Description
Price

1

RUNNER - Call your local BRP dealership

503191810

Unavailable

2

Black Slider Shoe 120"

503191301

$27.66

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Rubber Stopper

503191291

$18.43

13

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Hex. Screw M5 X 35

207053544

$1.09

16

Elastic Stop Nut M5

232551414

$0.72

17

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

18

Ball Bearing | Package-STD

503190396

$7.12

19

Casted Support

503193894

$12.75

20

Hex. Flange Screw M6 X 70

207667044

$0.70

21

Wheel Cup M6

503191820

$4.66

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Hex. Flange Screw M6 X 25

207662544

$0.53

24

Spring Support Kit

861805547

$8.14

25

Spring Support Kit

861805547

$8.14

26

Socket Head Screw M8 X 25

205082544

$0.92

27

Hex. Flange Elastic Nut M8

233281414

$1.14

28

Tensioner

503190827

Unavailable

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

30

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

31

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

32

Hex. Nut M10 X 1.5

232006414

$1.11

33

Rear Axle

503167900

$129.20

34

Center Spacer

503156000

$8.92

35

Inner Spacer

503182900

$10.18

36

Washer

503180400

$3.37

37

Wheel 180 | Includes 600 to 600a

503191491

$49.97

38

Ball Bearing

293350115

$11.15

39

Outer Spacer

503189809

$15.35

40

Wheel 180 | Includes 600 to 600a

503191491

$49.97

41

Ball Bearing

293350115

$11.15

42

Washer

503183300

$5.68

43

Hex. Screw With Nylon

250000019

$1.42
