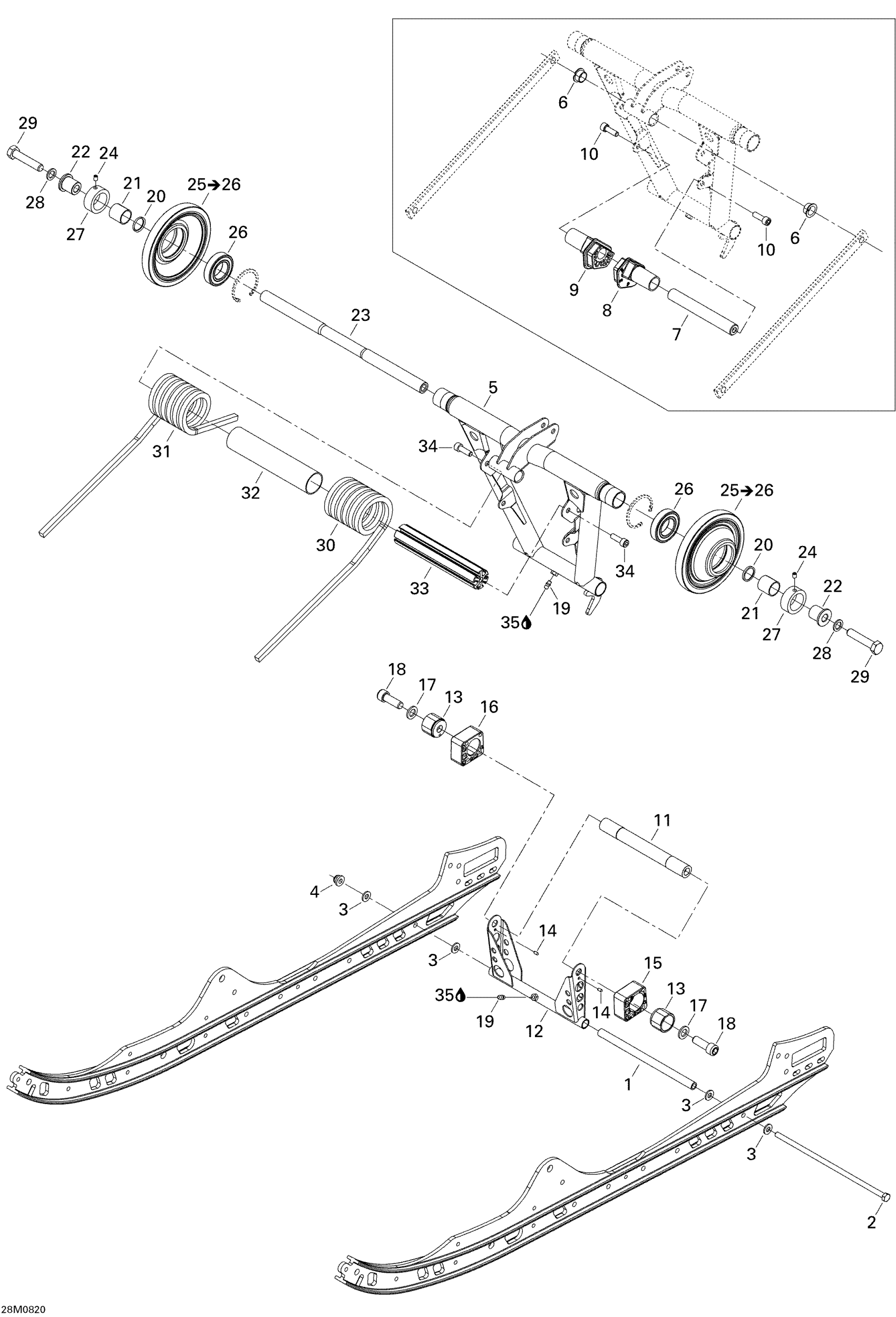

Ski-Doo MX Z 600RS, 2008 Rear Arm Diagram

#

Description
Price

1

Pivot Arm Axle

503189156

Unavailable

2

Bolt M8 X 248mm

503192440

Unavailable

3

Washer

503189157

$3.20

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

REAR ARM - Call your local BRP dealership

503191768

Unavailable

6

Swivel Bushing

503191555

Unavailable

7

Spring Cam Axe

503191178

Unavailable

8

LH Spring Cam

503191191

Unavailable

9

RH Spring Cam

503191190

Unavailable

10

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

11

LOWER SHAFT - Call your local BRP dealership

503190725

Unavailable

12

Pivot Arm

503191302

Unavailable

13

Block Guide

503189488

Unavailable

14

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

15

LH Block, 4 Positions

503191563

Unavailable

16

RH Block, 4 Positions

503191562

Unavailable

17

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

18

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

19

Grease Fitting

408200700

Unavailable

20

Washer

503191774

Unavailable

21

Bushing

503191773

Unavailable

22

Bushing

503191775

Unavailable

23

Upper Shaft

503191776

Unavailable

24

Socket Set Screw M6 X 8

206260844

$1.25

25

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

Unavailable

26

Ball Bearing

503191778

Unavailable

27

Retaining Ring

503191782

Unavailable

28

Washer

503189276

Unavailable

29

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

30

LH Spring, Square

503191615

Unavailable

31

RH Spring, Square

503191614

Unavailable

32

Plastic Bushing

503191345

Unavailable

33

Spring Axle

503191344

Unavailable

34

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
