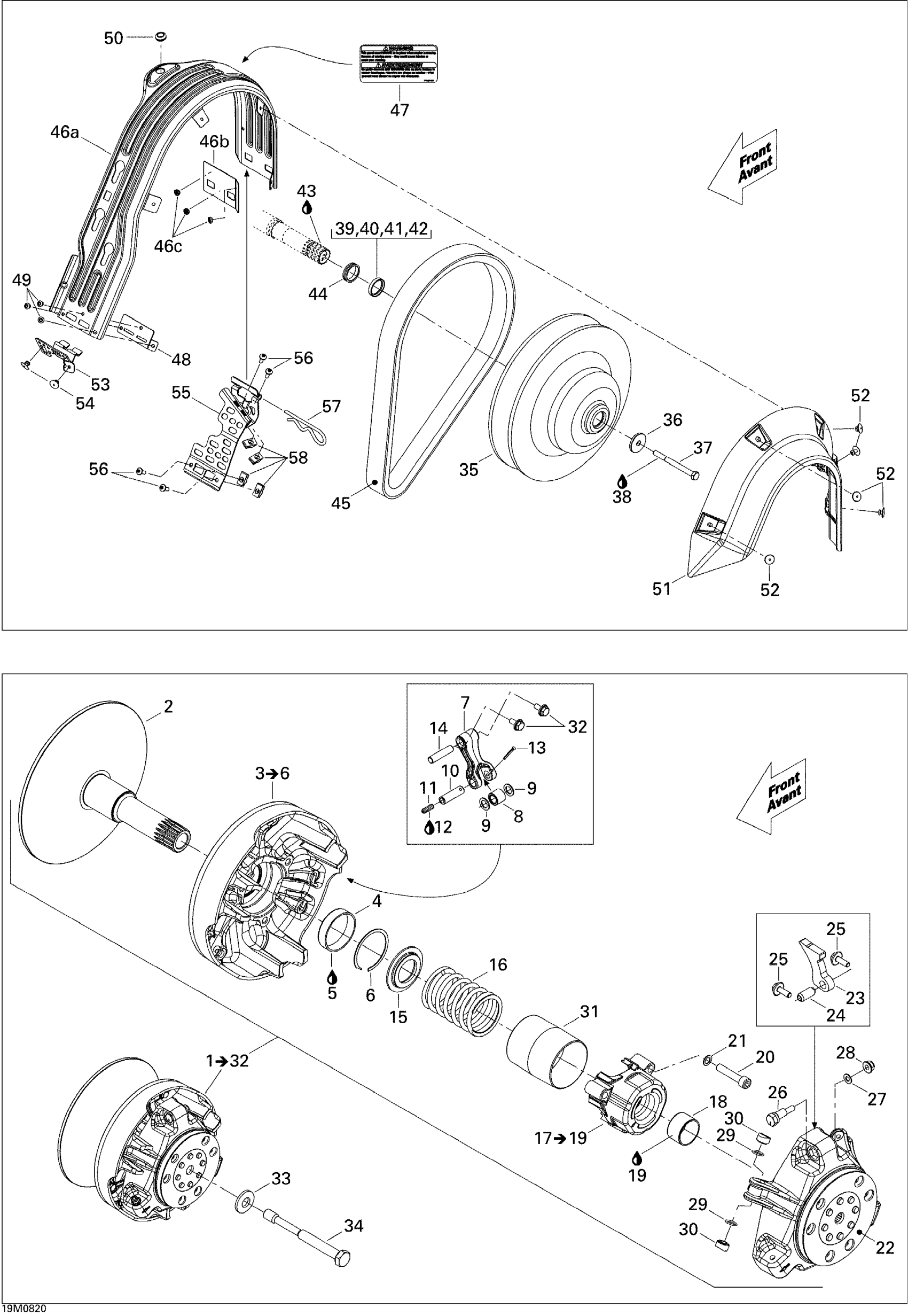

Ski-Doo MX Z 600RS, 2008 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

3

Sliding Flange Ass'y

417222971

$515.64

4

Bushing

417222758

$20.12

5

Loctite 609, 10 ml

413703100

$23.85

6

Circlip

293370037

$2.93

7

Lever | Includes 10f to 10g

417222671

$46.24

8

Roller

417222947

$19.37

9

Stopper Washer

417004302

$15.64

10

Threaded Pin, M6 | High Altitude

417222595

$21.61

11

Screw Socket Set DIN.913 S.Grip

250000408

$3.75

12

Loctite 243, 10 ml

293800060

$21.49

13

Cotter Pin

250400060

$1.84

14

Lever Axle

417223164

$4.12

15

Spring Seat

417222312

$8.03

16

SPRING, BROWN/BROWN - Call your local BRP dealership

417223050

Unavailable

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

18

Bushing

417009204

$15.64

19

Loctite 609, 10 ml

413703100

$23.85

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

21

Lock Washer 8 mm

250200009

$2.00

22

Governor Cup Ass'y

417222622

Unavailable

23

Ramp 438 | Package X-T3, High Altitude

417223049

$32.81

24

Spring Pin M10 X 22

250400050

$2.73

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.75

28

Hex. Flange Nut M6

233061414

$1.54

29

O-Ring

732401030

$0.93

30

Slider Shoe This part replaces 420460045.

417223021

$5.99

31

Guard

417009205

$16.39

32

Serrated Hex. Flange Bolt M6

250000416

$4.00

33

Spring Washer 14 mm

250200006

$6.66

34

Drive Pulley Bolt

417120000

$61.91

35

DRIVEN PULLEY ASS'Y - Call your local BRP dealership

417127104

Unavailable

36

Strength Washer

517302322

$10.76

37

Hex. Screw M8 X 90

207089044

$3.24

38

Loctite 243, 10 ml

293800060

$21.49

39

Spacer

417300252

$5.01

40

Spacer

417300265

$2.06

41

Spacer

504149100

$10.87

42

Shim

504112000

$5.87

43

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

44

SPACER - Call your local BRP dealership

417126302

Unavailable

45

Drive Belt

417300534

$211.91

46a

Belt Guard

417300353

Unavailable

46b

PLATE - Call your local BRP dealership

417300372

Unavailable

46c

Henrob Rivet

293150091

$0.73

47

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

48

REINFORCEMENT - Call your local BRP dealership

417300335

Unavailable

49

Avex Rivet

390909200

$0.28

50

GROMMET - Call your local BRP dealership

517303974

Unavailable

51

Side Protector

417300356

$12.85

52

Pop Rivet 3/16"

293150103

$0.52

53

BELT GUARD BRACKET - Call your local BRP dealership

417300358

Unavailable

54

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

55

Belt Guard Bracket

417300368

Unavailable

56

Torx Screw M5 X 14

250000742

$1.37

57

Hair Pin

114045200

$10.37

58

Panel Nut M5 X 0.8

250000958

$4.00
