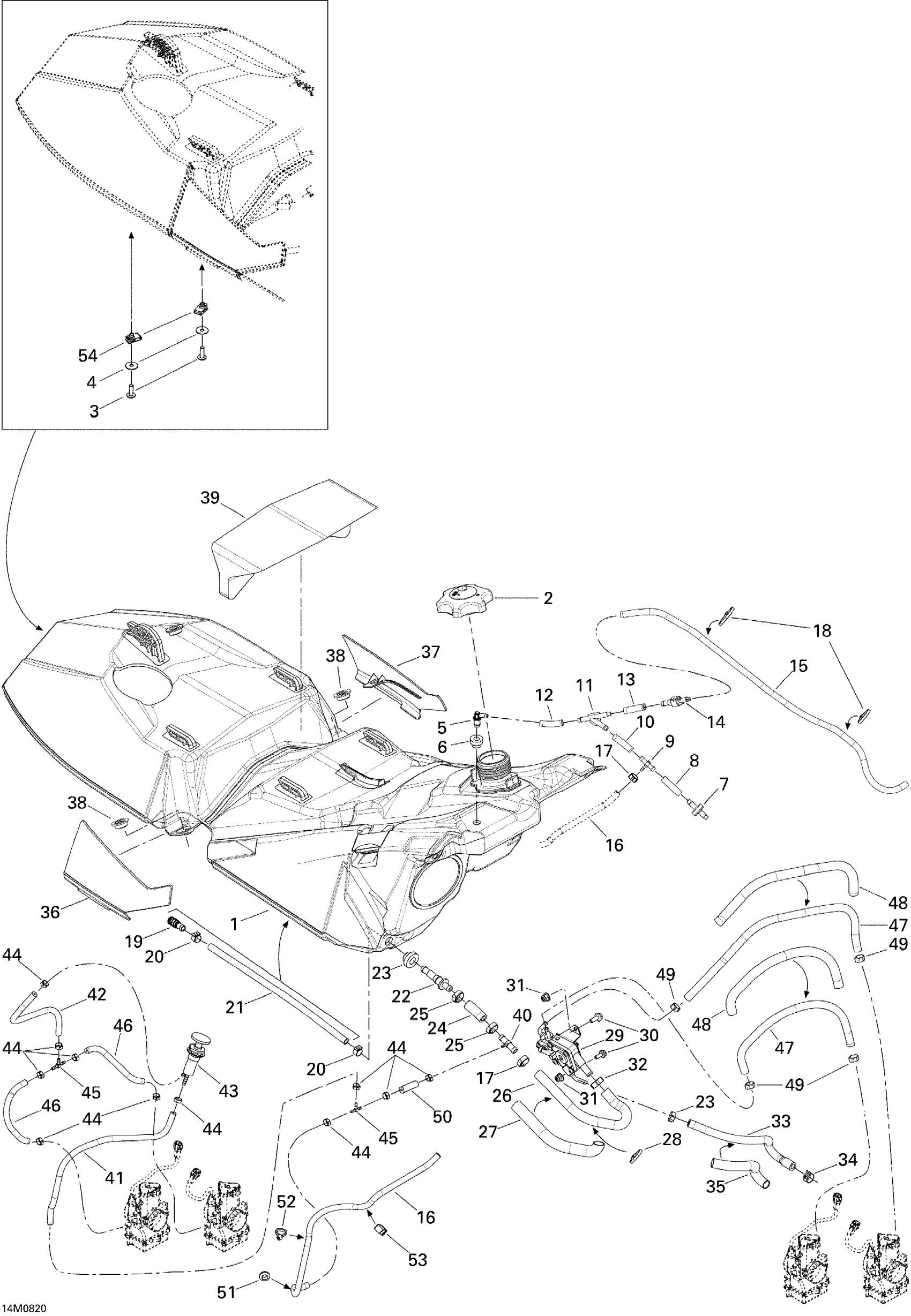

Ski-Doo MX Z 600RS, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033697

Unavailable

2

Fuel Tank Cap

513033752

$54.45

3

Torx Screw M6 X 20

250000722

$1.54

4

Flat Washer

224060201

$1.12

5

Remote Vent

513033859

$17.88

6

Grommet

513033596

$17.88

7

Check Valve

275500398

$9.84

8

Polyurethane Hose 10000Mm Long

219704410

$52.96

9

T-fitting

414222500

$1.52

10

Polyurethane Hose 10000Mm Long

219704410

$52.96

11

Y-Fitting

293710059

$9.40

12

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Polyurethane Hose 10000Mm Long

219704410

$52.96

14

Check Valve

513033469

$29.07

15

Polyurethane Hose 10000Mm Long

219704410

$52.96

16

HOSE - Call your local BRP dealership

709000665

Unavailable

17

Oetiker Gear Clamp

293650043

$3.10

18

Tie-Rap 180 mm

414115200

$0.10

19

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

20

Norma Spring Clamp

513033010

$8.42

21

Polyurethane Hose 1000Mm Long

219704391

Unavailable

22

Male Connector

414872700

Unavailable

23

Grommet

513033435

$4.28

24

HOSE 9.53MM ID - 40MM - Call your local BRP dealership

513033444

Unavailable

25

Crimp Clamp

293650053

$2.78

26

FORMED HOSE - Call your local BRP dealership

513033439

Unavailable

27

Tubing 16 Mm 1000Mm Long

219704408

$7.15

28

Tie-Rap 180 mm

414115200

$0.10

29

FUEL PUMP - Call your local BRP dealership

513033420

Unavailable

30

Hex. Flange Screw M6 X 16

207661644

$0.70

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

32

Spring Clamp

414415200

$0.81

33

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

34

Universal Spring Clamp

513033029

$4.96

35

Was 409901800 Tubing (13 mm)

219704400

$10.79

36

RH Cap

513033418

$12.24

37

LH Cap

513033419

$12.24

38

Shoulder Bushing

513033326

$12.24

39

FOAM - Call your local BRP dealership

513033528

Unavailable

40

T-Fitting

415119300

$3.01

41

HOSE - Call your local BRP dealership

709000665

Unavailable

42

HOSE - Call your local BRP dealership

709000665

Unavailable

43

Primer

513033441

$32.06

44

Oetiker Gear Clamp

293650043

$3.10

45

T-Fitting

414222400

$1.52

46

HOSE - Call your local BRP dealership

709000665

Unavailable

47

Hose

513033448

Unavailable

48

Was 409901800 Tubing (13 mm)

219704400

$10.79

49

Oetiker Gear Clamp

293650025

$2.82

50

HOSE - Call your local BRP dealership

709000665

Unavailable

51

GROMMET - Call your local BRP dealership

517303974

Unavailable

52

Tie Wrap 142 mm

293750002

$1.01

53

Clip

414227300

$1.40

54

Panel Nut M6 X 1.0

250100198

$1.99
