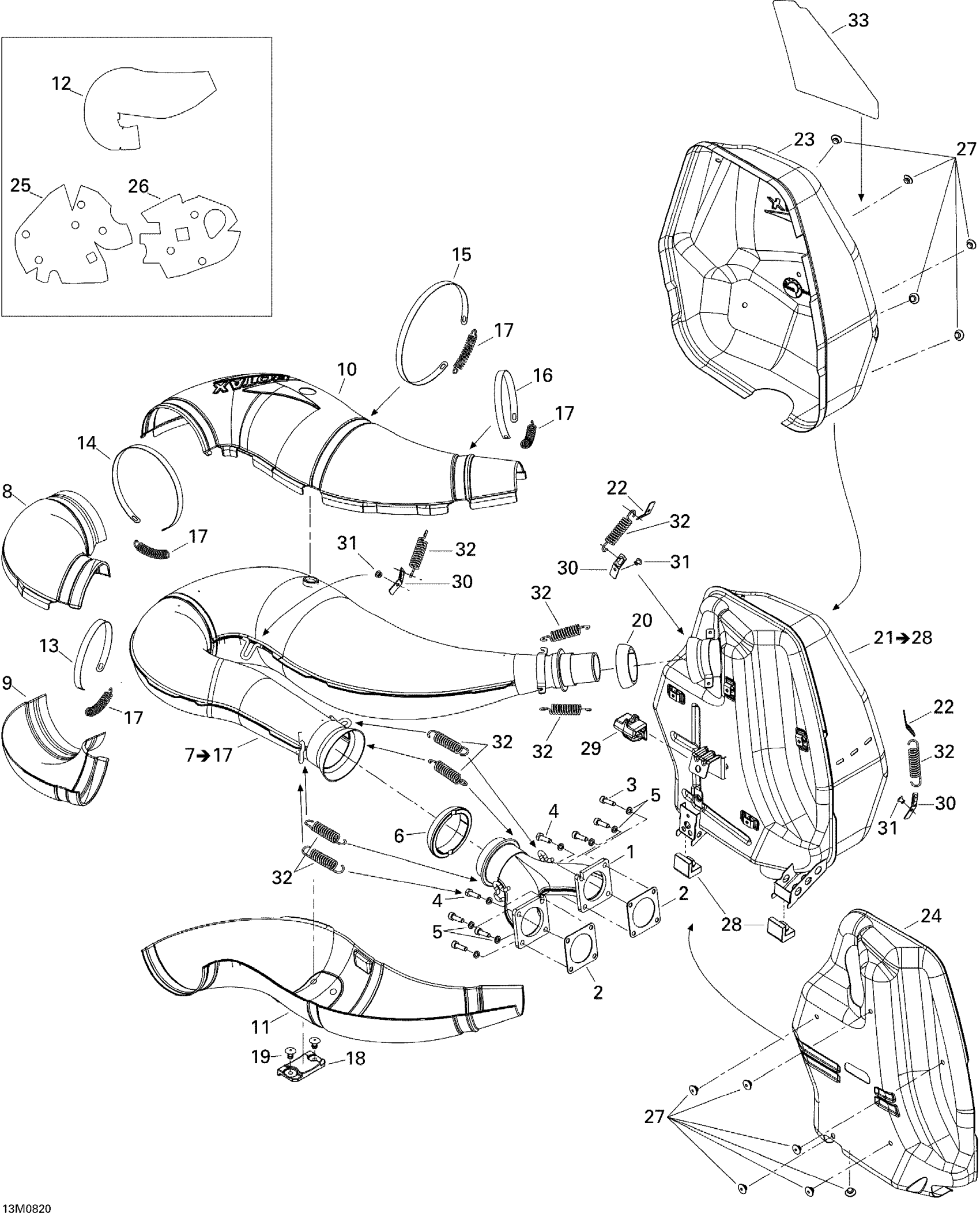

Ski-Doo MX Z 600RS, 2008 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

2

Gasket

420850552

$7.92

3

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

4

HEX. SCREW M6 X 20, SCOTCH GRIP - Call your local BRP dealership

250000337

Unavailable

5

Washer

514053953

$0.75

6

Exhaust Gasket

514053487

Unavailable

7

PIPE_TUNED ASSY - Call your local BRP dealership | Includes 7 to 17

514054868

Unavailable

8

Front Upper Half Enveloppe

514054992

$38.43

9

Front Lower Half Enveloppe

514054993

$38.43

10

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

$69.97

11

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

12

Insulating Wool

514054487

$19.20

13

Retaining Strap

514054408

$10.55

14

Retaining Strap

514054409

$10.55

15

Retaining Strap

514054410

$10.55

16

Retaining Strap

514053499

$8.35

17

Spring

514053643

$6.20

18

Bumper

514054275

$14.65

19

Pop Rivet 3/16"

293150103

Unavailable

20

Exhaust Gasket

514053812

$25.35

21

Muffler Ass'y | Includes 25 to 32

514054515

Unavailable

22

Spring Bracket

514054155

Unavailable

23

RH Deflector

514054984

$54.58

24

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

$41.51

25

RH INSULATING WOOL - Call your local BRP dealership

514054298

$14.92

26

LH Insulating Wool

514054299

$19.20

27

Pop Rivet 3/16”

390910000

$0.48

28

Lower Stopper

514054274

$19.20

29

Upper Stopper

514054606

$14.92

30

Spring Bracket

514054522

$6.28

31

Pop Rivet 3/16"

390402200

$0.26

32

Spring

514054226

$6.20

33

Reflective Sheet

514054488

Unavailable
