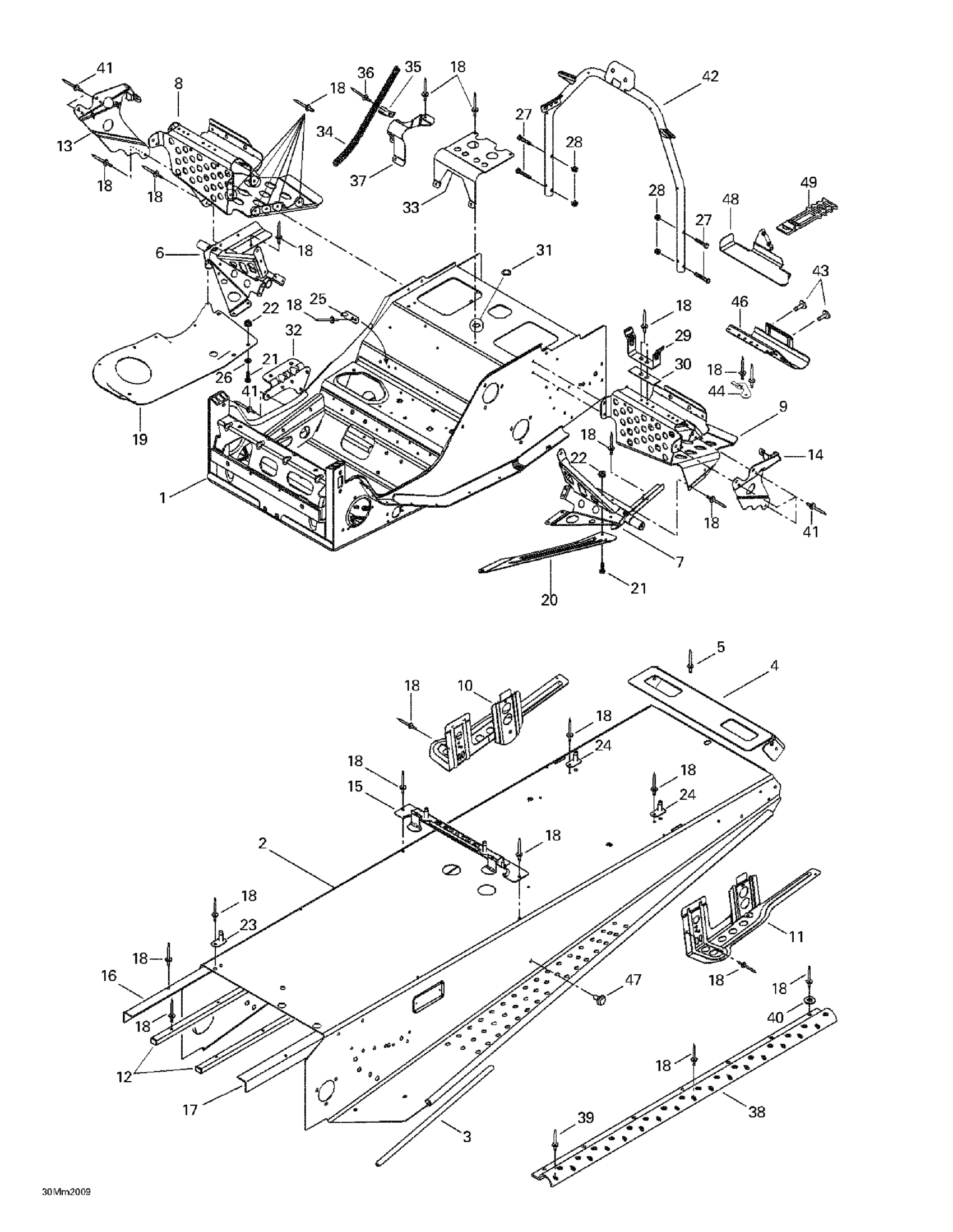

Ski-Doo MX Z 600 SB Black, 2000 Frame And Accessories Diagram
#
1
Frame | Includes 1 - 31.
518322091
Unavailable
2
Forming Frame | Includes 2 - 5.
518322115
Unavailable
3
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
4
REAR CAP - Call your local BRP dealership
518321303
Unavailable
5
Avex Rivet
390909200
Unavailable
6
RH Footrest Support
518320506
Unavailable
7
LH SOOTREST SUPPORT - Call your local BRP dealership
518320507
Unavailable
8
RH Footrest
518319722
Unavailable
9
LH Footrest
518319723
Unavailable
10
RH Slide Bracket
518319742
Unavailable
11
LH Slide Bracket
518319743
Unavailable
12
Frame Protector
518321543
Unavailable
13
RH FOOTREST REINFORCEMENT - Call your local BRP dealership
518321305
Unavailable
14
LH FOOTREST REINFORCEMENT - Call your local BRP dealership
518321307
Unavailable
15
FUEL TANK BRACKET - Call your local BRP dealership
518321510
Unavailable
16
RH Frame Reinforcement
518321561
Unavailable
17
LH Frame Reinforcement
518321562
Unavailable
18
Pop Rivet 3/16"
390402200
Unavailable
19
RH Bottom Pan Plate | 600
518319760
Unavailable
20
LH Reinforcement. Plate
518321959
Unavailable
21
Hex. Screw M5 X 20
207152044
Unavailable
22
Hex. Flange Elastic Nut M5
233251414
Unavailable
23
Guide
518321604
Unavailable
24
Guide
518319730
Unavailable
25
Double Bracket
518319728
Unavailable
26
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
27
Hex. Flange Screw M6 X 35
207663544
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Belt Guard Bracket
518202100
Unavailable
30
REINFORCEMENT - Call your local BRP dealership
518207500
Unavailable
31
CAP - Call your local BRP dealership
414859400
Unavailable
32
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
33
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
34
ROPE GUIDE - Call your local BRP dealership
518321569
Unavailable
35
Open Clamp
518321570
Unavailable
36
Pop Rivet 3/16"
390406500
Unavailable
37
Hose Support
518319762
Unavailable
38
Non-Skid Strip (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.
518321714
Unavailable
39
Pop Rivet 3/16"
390402300
Unavailable
40
Flat Washer
517225900
Unavailable
41
Pop Rivet 3/16"
390402200
Unavailable
42
Handle Support
518321957
Unavailable
43
Hex. Flange Screw M6 X 16
207661644
Unavailable
44
TOOL KIT BRACKET - Call your local BRP dealership
518322031
Unavailable
45
Insert
293450275
Unavailable
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Panel Fastener
518321954
Unavailable
48
Tool Kit Support
518321999
Unavailable
49
LATCH - Call your local BRP dealership
570069700
Unavailable
