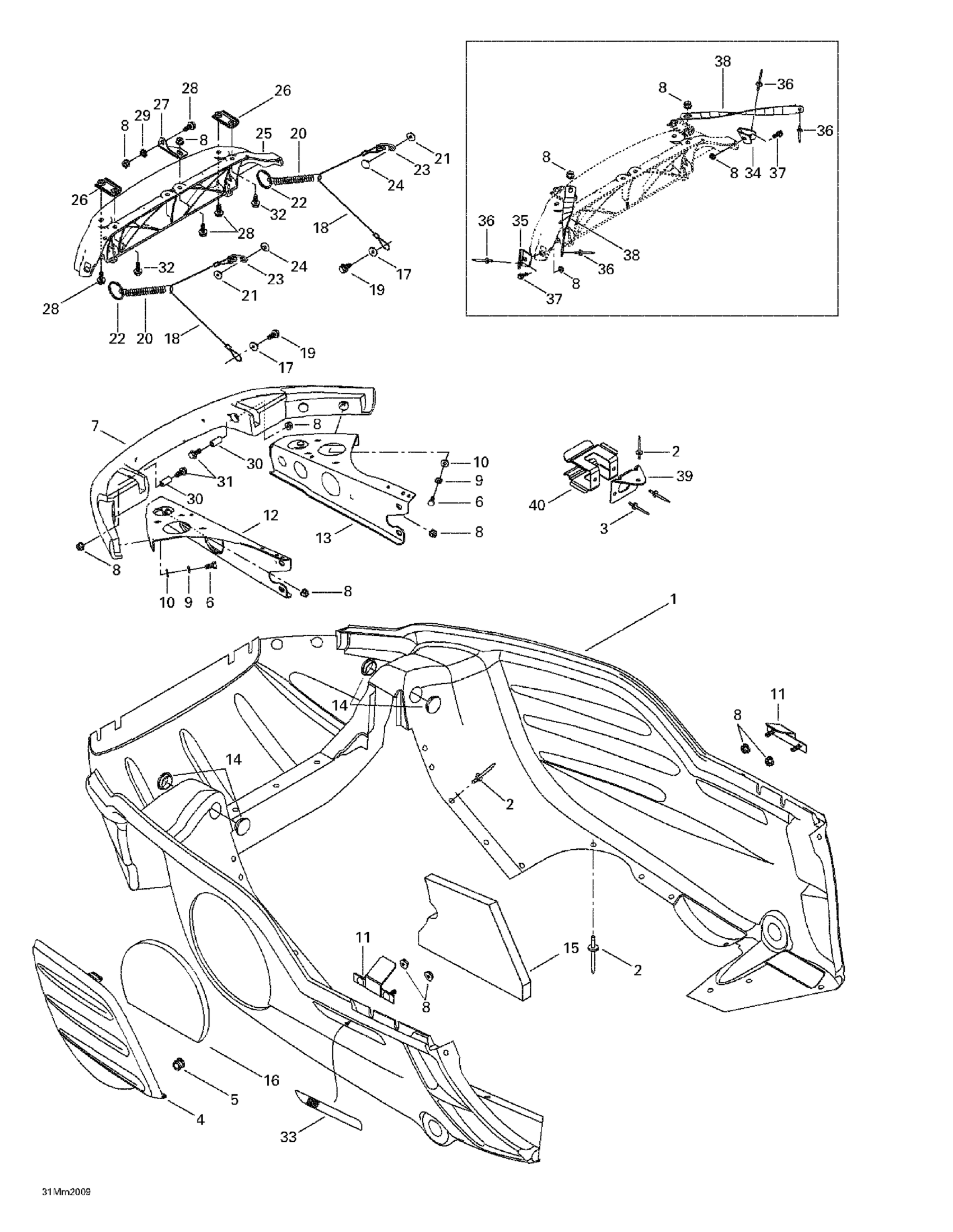

Ski-Doo MX Z 600 SB Black, 2000 Bottom Pan Diagram
#
1
2000 Yellow, Bottom Pan
502006588
Unavailable
Deep Black, Bottom Pan
502006589
Unavailable
2
Pop Rivet 3/16"
390906800
Unavailable
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
3
Pop Rivet 3/16"
390402400
Unavailable
4
Bottom Pan Door | B-190 YELLOW
502006511
Unavailable
BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership
502006506
Unavailable
5
Grommet
414036300
Unavailable
6
Hex. Screw M6 X 14
207161444
Unavailable
7
Bumper
502006535
Unavailable
Bumper, Black
502006719
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Lock Washer M6, Black
234161471
Unavailable
10
Flat Washer
224061121
Unavailable
11
Bracket
502006500
Unavailable
12
LH SUPPORT - Call your local BRP dealership
502006597
Unavailable
13
RH Support
502006596
Unavailable
14
Black, Nylon Cap
414916600
Unavailable
15
Bottom Foam
502006558
Unavailable
16
Bottom Pan Door Foam
502006559
Unavailable
17
Washer | DS 650 X
391301600
Unavailable
18
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Spring
415043300
Unavailable
21
Washer
517124300
Unavailable
22
RING - Call your local BRP dealership
415058300
Unavailable
23
Bracket
517262800
Unavailable
24
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
25
Hinge
517302631
Unavailable
26
HINGE SIDE PLATE - Call your local BRP dealership
517302176
Unavailable
27
Hinge Center Plate
517302045
Unavailable
28
Hex. Flange Screw M6 X 16
207661654
Unavailable
29
Lock Washer Serrated M6
250200041
Unavailable
30
BUSHING - Call your local BRP dealership
517302179
Unavailable
31
Hex. Flange Screw M6 X 35
207663544
Unavailable
32
Hex. Flange Screw M6 X 25
207662544
Unavailable
33
Decal - RH Reflector
415064400
Unavailable
Decal - LH Reflector
415064401
Unavailable
34
RH Corner Support
517302254
Unavailable
35
LH Corner Support
517302255
Unavailable
36
Pop Rivet 3/16"
390406500
Unavailable
37
Hex. Flange Screw M6 X 16
207661654
Unavailable
38
Hood Clamp
517302256
Unavailable
39
Belt Support
502006599
Unavailable
40
Bracket
517281905
Unavailable
