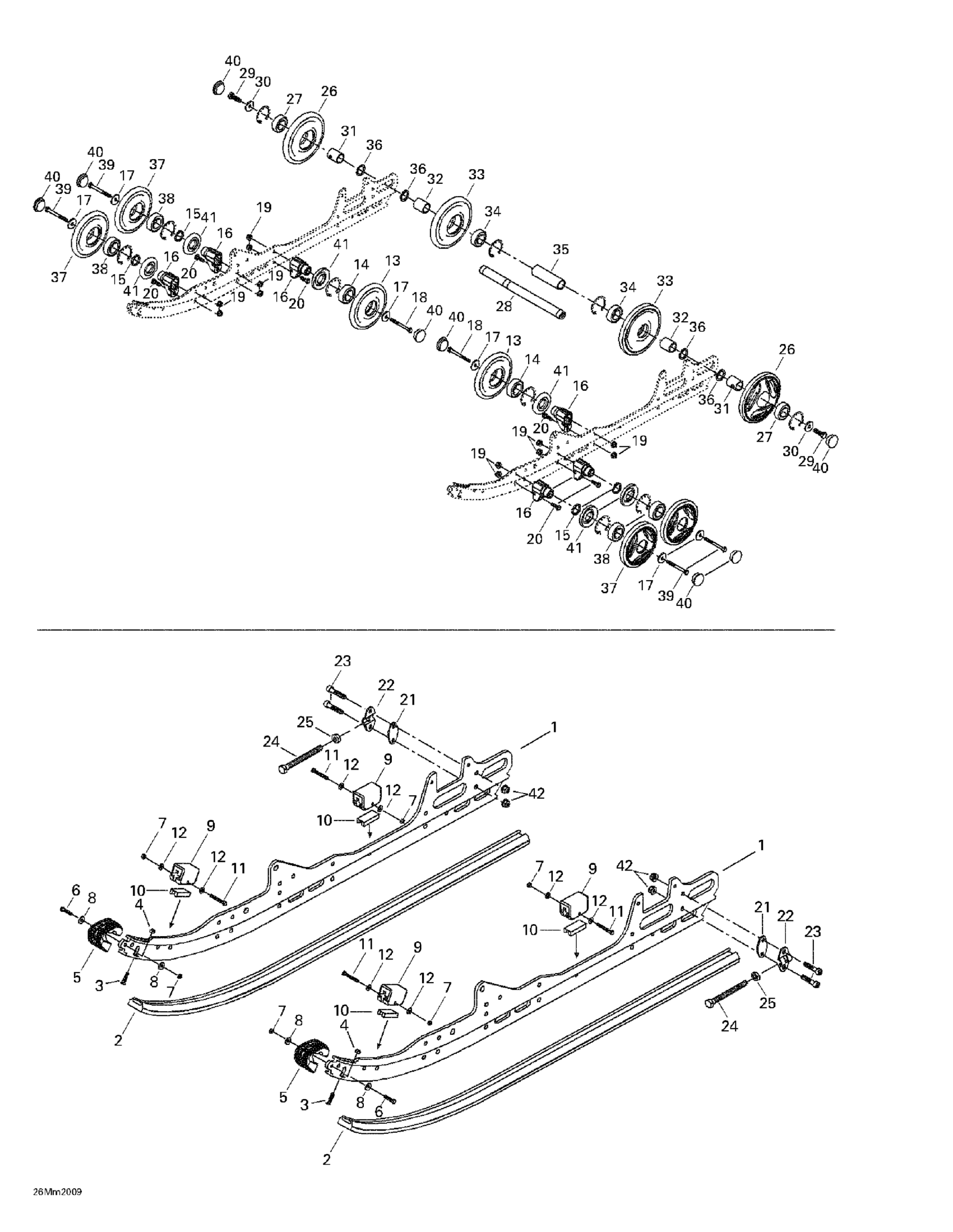

Ski-Doo MX Z 600 SB Black, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner

503189301

Unavailable

2

Runner Shoe

560103300

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

Unavailable

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Wheel 135

503191029

Unavailable

14

Ball Bearing

293350115

Unavailable

15

WASHER - Call your local BRP dealership

503173700

Unavailable

16

SUPPORT - Call your local BRP dealership

503190389

Unavailable

17

Washer

503183100

Unavailable

18

Hex. Screw M8 X 80

207088044

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Hex. Screw M8 X 25

207182544

Unavailable

21

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

22

Tensioner

503155300

Unavailable

23

Hex. Screw M6 X 30

207063044

Unavailable

24

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

26

Wheel 165 mm Yellow

503190817

Unavailable

27

Ball Bearing

293350115

Unavailable

28

Rear Axle

503167900

Unavailable

29

Hex. Screw With Nylon

250000019

Unavailable

30

Washer

503183300

Unavailable

31

Outer Spacer

503189809

Unavailable

32

Inner Spacer

503182900

Unavailable

33

Wheel 165" | Includes 670 to 670b

503194127

Unavailable

34

Ball Bearing

293350115

Unavailable

35

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

36

Washer

503180400

Unavailable

37

WHEEL 135 (BLACK) - Call your local BRP dealership | Includes 28 - 29.

572097602

Unavailable

38

Ball Bearing

293350115

Unavailable

39

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

40

Wheel Cap

570063600

Unavailable

41

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
