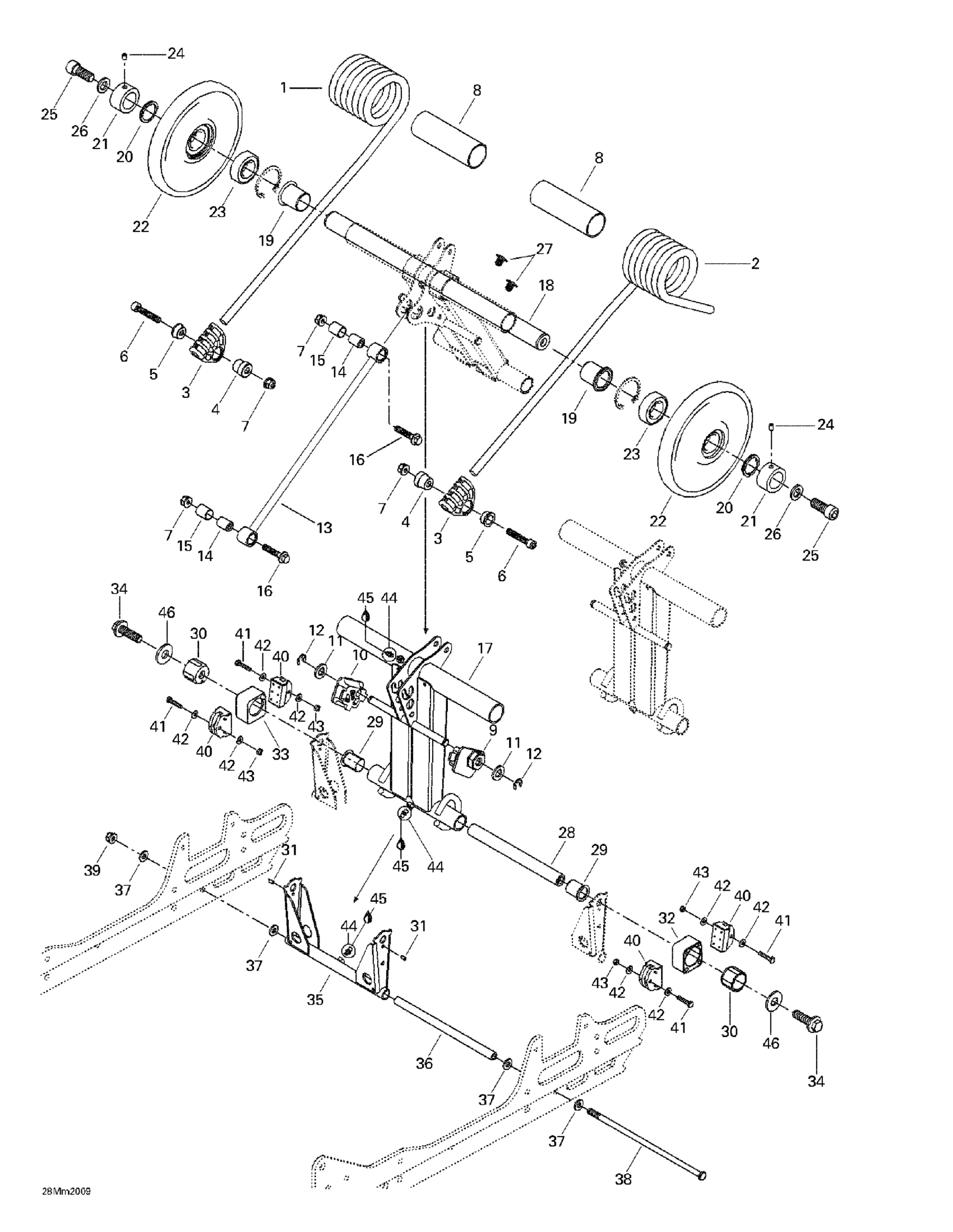

Ski-Doo MX Z 600 SB Black, 2000 Rear Arm, Rear Suspension Diagram
#
1
RH Spring (EUROPE) | MX Z 500. MX Z 700. MX Z 800.
503189443
Unavailable
RH SPRING - Call your local BRP dealership
503189522
Unavailable
2
LH Spring (EUROPE) | MX Z 500. MX Z 700. MX Z 800.
503189445
Unavailable
LH SPRING - Call your local BRP dealership
503189524
Unavailable
3
Spring Support
503189657
Unavailable
4
Spring Guide Axle
503188934
Unavailable
5
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
6
Socket Head Screw M8 X 45
205084544
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
PLASTIC BUSHING - Call your local BRP dealership
503189105
Unavailable
9
LH Cam Adjuster
503189284
Unavailable
10
RH Cam Adjuster
503189283
Unavailable
11
Flat Washer 12 mm
234021410
Unavailable
12
E-Circlip
293370013
Unavailable
13
Throttle Rod (SE, Europe) | Legend 600. Legend 800.
503189298
Unavailable
14
BUSHING - Call your local BRP dealership
503189133
Unavailable
15
Cushion
503189266
Unavailable
16
Hex. Flange Screw M8 X 40
207684044
Unavailable
17
Rear Arm (SE, Europe) | Legend 600. Legend 800.
503189305
Unavailable
18
Upper Axle
503189412
Unavailable
19
CUSHION - Call your local BRP dealership
503189288
Unavailable
20
Axle Spring
503189146
Unavailable
21
Retainer Ring
503189147
Unavailable
22
Wheel 165 Ass'y | Includes 25 - 26.
503189187
Unavailable
23
Ball Bearing
293350115
Unavailable
24
Socket Set Screw M6 X 8
206260844
Unavailable
25
Socket Head Screw M12 x 35
205023544
Unavailable
26
Washer
503189276
Unavailable
27
Black, Dart
414644300
Unavailable
28
REAR LOWER AXLE - Call your local BRP dealership
503189413
Unavailable
29
Cushion
503191640
Unavailable
30
Block Guide
503189488
Unavailable
31
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership
250400005
Unavailable
32
LH Block
503189152
Unavailable
33
RH Block
503189170
Unavailable
34
Hex. Flange Screw M12 x 40 (Scotch Grip
207524086
Unavailable
35
Pivot Arm
503189430
Unavailable
36
Pivot Arm Axle
503189156
Unavailable
37
Washer
503189157
Unavailable
38
Bolt M8 X 248mm
503192440
Unavailable
39
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
Block Stopper
503189400
Unavailable
41
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
42
Flat Washer
224060201
Unavailable
43
Elastic Stop Nut M5
232551414
Unavailable
44
Grease Fitting
408200700
Unavailable
45
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
46
Flat Washer 12 mm
234021410
Unavailable
