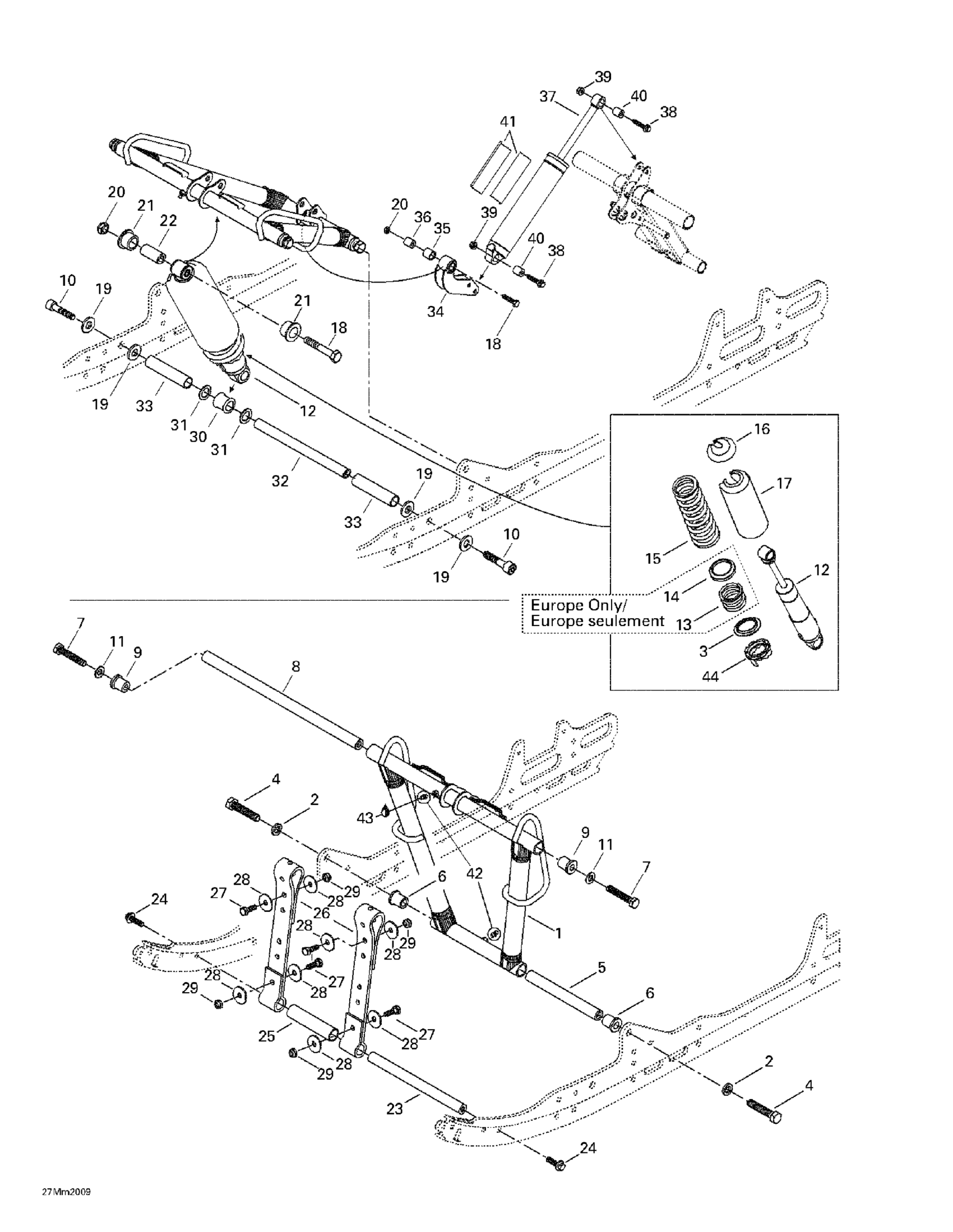

Ski-Doo MX Z 600 SB Black, 2000 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

Unavailable

3

Spring Guide

503191872

Unavailable

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

Unavailable

10

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

11

Washer

732900049

Unavailable

12

Center Shock (Europe X) | Summit 800.

503189076

Unavailable

Center Shock (Europe)

503189491

Unavailable

13

Spring (EUROPE)

503189090

Unavailable

14

Spring Spacer

503182200

Unavailable

15

SPRING - Call your local BRP dealership

503189325

Unavailable

Spring

415090500

Unavailable

16

Spring Stopper

706200881

Unavailable

17

Protector

503193663

Unavailable

18

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

19

Washer

503189276

Unavailable

20

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

21

Urethane Bushing

503189117

Unavailable

22

Bushing | Includes 240d to 240d1

503189282

Unavailable

23

Axle

503151600

Unavailable

24

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

25

Spacer

503189265

Unavailable

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

Unavailable

28

Flat Washer

224081301

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

Bushing

503189271

Unavailable

31

Washer

503189273

Unavailable

32

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

Rocker

503189303

Unavailable

35

Rocker Axle

503189388

Unavailable

36

Cushion

503189410

Unavailable

37

Rear Shock | MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

503189077

Unavailable

Rear Shock (Europe)

503189492

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Bushing

414936000

Unavailable

41

Shock Decal

516000183

Unavailable

42

Grease Fitting

408200700

Unavailable

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

44

Adjustment Cam

505073625

Unavailable
